Quick Details
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Yunnan, China
-
Brand Name:
-
YUN YOU
-
Model Number:
-
RVVP
-
Rated voltage:
-
300/500V
-
Product name:
-
sheathed PVC insulated flexible cable
-
Conductor:
-
99.9% Pure Copper
-
Insulation:
-
PVC
-
Material:
-
PVC
-
Core:
-
2-5 Core
-
Rated Temperature:
-
70'C
-
Colors:
-
Customization Accepted
-
Packing:
-
100m/roll
-
Advantage:
-
extra-soft
-
Keyword:
-
shield
Quick Details
-
Application:
-
Electrical equipment lighting connection use
-
Conductor Material:
-
Copper
-
Conductor Type:
-
Copper soft
-
Insulation Material:
-
PVC
-
Place of Origin:
-
Yunnan, China
-
Brand Name:
-
YUN YOU
-
Model Number:
-
RVVP
-
Rated voltage:
-
300/500V
-
Product name:
-
sheathed PVC insulated flexible cable
-
Conductor:
-
99.9% Pure Copper
-
Insulation:
-
PVC
-
Material:
-
PVC
-
Core:
-
2-5 Core
-
Rated Temperature:
-
70'C
-
Colors:
-
Customization Accepted
-
Packing:
-
100m/roll
-
Advantage:
-
extra-soft
-
Keyword:
-
shield
Products Description

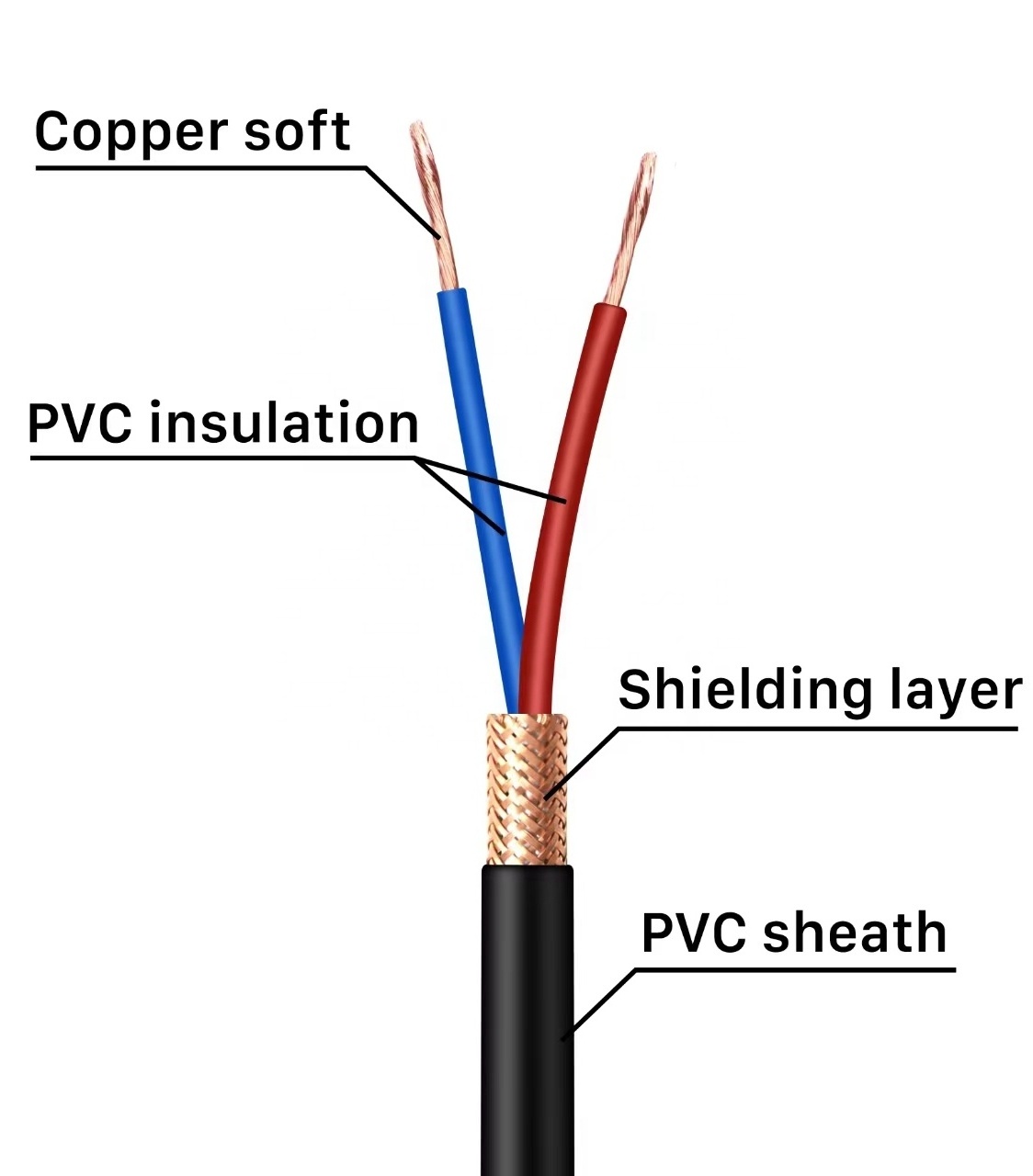

Copper core PVC insulated PVC sheathed flexible cable
|
Product name
|
Copper core PVC insulated PVC sheathed shielded flexible cable
|
|
|
|
|||
|
Brand
|
YunYou
|
|
|
|
|||
|
Executive standard
|
JB/T8734.5-2016
|
|
|
|
|||
|
Conductor
|
99.99%无氧铜
|
|
|
|
|||
|
Insulating material
|
PVC sheath PVC insulation
|
|
|
|
|||
|
Rated voltage
|
300/500V
|
|
|
|
|||
|
Cross section
|
0.5mm、0.75mm、1.0mm、1.5mm、2.5mm、4mm
|
|
|
|
|||
|
Product color
|
White, black or custom
|
|
|
|
|||
|
Application site
|
RVVP is suitable for communication, audio, broadcast, sound system, anti-theft alarm system, intelligent automation system,automatic meter reading system, fire protection system and other anti-interference line connection, efficient and safe
transmission data cable |
|
|
|
|||
|
Product advantage
|
RVVP Ican minimize the interference of external signals and transmit data safely and effectively
|
|
|
|
|||
Details Images
Product Paramenters
RVV type 300/500 V
Copper core PVC insulated PVC sheathed flexible cable
|
Core number x conductor nominal cross-sectional area mm²
|
Insulation thickness specified in mm
|
Sheath thickness Specifies the value mm
|
Average outside diameter or overall dimensions mm
|
|
Minimum insulation resistance at 70 ° C
|
|
|
|
|
|
Lower limit value
|
Upper limit value
|
|
|
|
2x0.5
|
0.5
|
0.6
|
3.7X5.6
|
4.5x6.8
|
0.012
|
|
|
2x0.75
|
0.5
|
0.6
|
4.0x6.1
|
4.8x7.4
|
0.010
|
|
|
2x1
|
0.6
|
0.8
|
4.3X6.7
|
5.2X8.3
|
0.011
|
|
|
2x1.5
|
0.7
|
0.8
|
4.9x7.6
|
7.0x9.3
|
0.0094
|
|
|
2x2.5
|
0.8
|
1.0
|
8.8
|
11.7
|
0.0086
|
|
|
2x4
|
0.8
|
1.2
|
10.6
|
13.9
|
0.0079
|
|
|
3x0.5
|
0.5
|
0.6
|
5.6
|
7.1
|
0.012
|
|
|
3x0.75
|
0.5
|
0.6
|
6.1
|
7.8
|
0.010
|
|
|
3x1.0
|
0.6
|
0.8
|
7.2
|
9.1
|
0.011
|
|
|
3x1.5
|
0.7
|
0.8
|
8.0
|
10.0
|
0.0094
|
|
|
3x2.5
|
0.8
|
1.0
|
9.5
|
12.6
|
0.0086
|
|
|
3x4
|
0.8
|
1.2
|
11.5
|
14.9
|
0.0079
|
|
|
4x0.5
|
0.5
|
0.8
|
6.5
|
8.9
|
0.012
|
|
|
4x0.75
|
0.5
|
0.8
|
6.8
|
9.3
|
0.010
|
|
|
4x1.0
|
0.6
|
0.9
|
7.8
|
10.5
|
0.011
|
|
|
4x1.5
|
0.7
|
0.9
|
8.4
|
11.5
|
0.0094
|
|
|
4x2.5
|
0.8
|
1.0
|
10.1
|
13.6
|
0.0086
|
|
|
5x0.5
|
0.5
|
0.8
|
7.0
|
9.5
|
0.012
|
|
|
5x0.75
|
0.5
|
0.8
|
7.4
|
10.0
|
0.010
|
|
|
5x1.0
|
0.6
|
0.9
|
8.5
|
11.3
|
0.011
|
|
|
5x1.5
|
0.7
|
1.0
|
9.6
|
12.6
|
0.094
|
|
|
5x2.5
|
0.8
|
1.1
|
11.5
|
14.9
|
0.086
|
|
