Quick Details
-
Product name:
-
IRD
-
Video Coding:
-
MPEG-2/H.264
-
Power:
-
100-240VAC, 50Hz, 25W
-
warranty:
-
1 year
-
input:
-
4 Tuner inputs
-
Output:
-
IP (48 SPTS, 4 MPTS) over UDP and RTP/RTSP output
-
size:
-
482mm*410mm*44mm
-
Frequency Range:
-
950MHz~2150MHz
-
Weight:
-
3kg
-
pack:
-
482x400x44mm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Catvscope
-
Model Number:
-
CSP-358x
-
Product name:
-
IRD
-
Video Coding:
-
MPEG-2/H.264
-
Power:
-
100-240VAC, 50Hz, 25W
-
warranty:
-
1 year
-
input:
-
4 Tuner inputs
-
Output:
-
IP (48 SPTS, 4 MPTS) over UDP and RTP/RTSP output
-
size:
-
482mm*410mm*44mm
-
Frequency Range:
-
950MHz~2150MHz
-
Weight:
-
3kg
-
pack:
-
482x400x44mm
Product Introduction

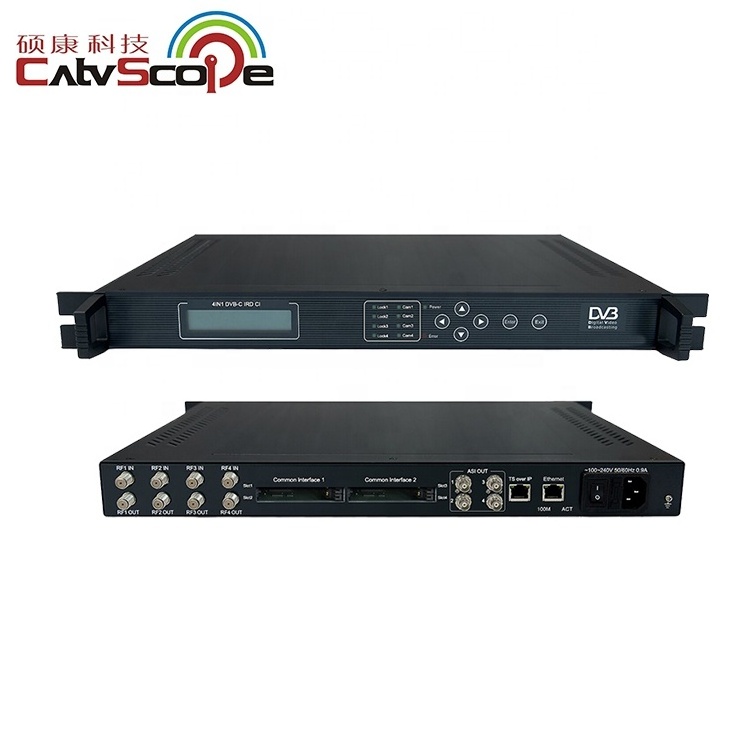

CSP 358X IRD is new design which integrates demodulation (DVB-C, (T), S/S2 optional), de-scrambler and multiplexing in one case to convert RF signals into TS output.
It is a 1-U case which supports 4 tuner inputs, 1 ASI and IP. The 4 CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device. BISS function is also embedded to descramble programs from any input.
To meet customers’ various requirements, CSP 358X is also designed to de-mux programs from any input, and output TS over 48 SPTS & 4 MPTS UDP, RTP/RTSP.
Key Features
· 4 Tuner inputs (DVB-C, (T), S/S2 Optional)
· 1 ASI & 4 IP (UDP) input
· One CAM can decrypt multiple programs from Tuners/ASI/IP
· Support BISS descrambling(Up to 120 Mbps)
· IP (48 SPTS, 4 MPTS) over UDP and RTP/RTSP output;
· 4 groups of independent ASI out for tuner/IP passthrough (one-to-one)
· Support maximum 128 PID mapping per input
· Support Diseqc function
· LCD display, Remote control and Firmware, web NMS management
· Updates via web
· High quality and breakthrough price
