- Product Details
- {{item.text}}
Quick Details
-
Graphic Format Supported:
-
AI, BMP, DXF, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HONZ
-
Model Number:
-
HZ-6040
-
Dimension(L*W*H):
-
1000*800*680mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Europe Quality Standard CE Laser Engraving Machine With Europe Plug
-
Working area:
-
600*400mm
-
Work table:
-
Honeycomb / Knife table
-
Gross power:
-
1000W
-
Laser type:
-
CO2 Laser tube or Reci tube
-
Engraving speed:
-
0-75000mm/min
-
Cutting speed:
-
0-40000mm/min
-
Max thickness of engraved object:
-
280mm
-
Driving system:
-
Stepper motor(x,y,z,axis)
-
Machine control:
-
Speedy DSP controlling
-
Certification:
-
ce
Quick Details
-
Engraving Area:
-
600*400mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-75000mm/min
-
Graphic Format Supported:
-
AI, BMP, DXF, PLT
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HONZ
-
Model Number:
-
HZ-6040
-
Dimension(L*W*H):
-
1000*800*680mm
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Europe Quality Standard CE Laser Engraving Machine With Europe Plug
-
Working area:
-
600*400mm
-
Work table:
-
Honeycomb / Knife table
-
Gross power:
-
1000W
-
Laser type:
-
CO2 Laser tube or Reci tube
-
Engraving speed:
-
0-75000mm/min
-
Cutting speed:
-
0-40000mm/min
-
Max thickness of engraved object:
-
280mm
-
Driving system:
-
Stepper motor(x,y,z,axis)
-
Machine control:
-
Speedy DSP controlling
-
Certification:
-
ce
Europe Quality Standard CE Laser Engraving Machine With Europe Plug
HZ-6040 laser engraving machine Feature:
1. High C/P Value: High capacity and low price suit to initiate laser engraving machine user.
2. Motorized Auto Focus Module: Provide convenient laser beam auto focus function.
3. Pass Through Design: Convenient for continuous feeding process of long material front to rear.
4. Easy Maintain Design: Easy open able side covers make maintenance easier.
5. Motorize Working Table: Provide up to 300mm space for thick material.
6. Aluminum Table With Honeycomb Unit: Easy & convenient to place and pick engraving work pieces.
7. Fast Engraving Speed: Provide up to 1000mm/s (39.35inch/s),high accurate engraving speed.
Laser engraving cutting machine application materials and Industries:
Advertising, arts and crafts, leather, toys, garments, model, embroidery, clipping, packaging and paper industry, Wood Working, engraving embroidery, crafts, RC airplanes, balsa models, kites, robotics kits, and clothing patterns.
HZ-6040 model laser engraving machine detail specification:
|
Model |
HZ-6040 Laser Engraving machine |
|
Standard Laser power |
60w(80w/100w) |
|
Laser type |
sealed CO2 laser tube / or Reci laser tube, water-cooling, 10.6um |
|
Working life of tube |
1500hours for CO2 laser tube 10000 hours for Reci laser tube |
|
Working area(mm) |
600*400mm |
|
Cutting depth |
Acrylic 0-10mm, depending on materials |
|
Engraving speed |
0-75000mm/min |
|
Cutting speed |
0-40000mm/min |
|
Location precision |
≤0.01mm |
|
Minimum forming character |
Chinese:2*2mm English: 1*1mm |
|
Power supply |
220V±10% 50HZ or 110V±10% 60HZ |
|
Software supported |
BMP, CIF, JPEG, TGA, TIFF, PLT, AI, DXF, DST (TIANDAO Embroidery Software), DWG, CDR, etc |
|
Main Graphic format supported |
PLT/DXF/BMP/AI (Direct output) |
|
Engraver for Curve surfaces |
Rotary clamp is optional and used to engrave on curve surfaces |
|
Cooling mode |
Water-cooling and protection system |
|
Max thickness of engraved object |
280mm |
|
Laser tube(life hours) |
3500-4000hours |
|
Gross power |
1200w |
|
Driving system |
Stepper motor(x,y,z,axis) |
|
Machine control |
Speedy DSP controlling |
|
Applications |
acrylic, PVC, rubber sheet, plastic, crystal, glass, wood, bamboo, oxhorn, figuline,marble, leather, cloth, double-color board etc. nonmetal materials |
|
Working environment |
Temperature:0-45℃;Humidity:5%-95%; |

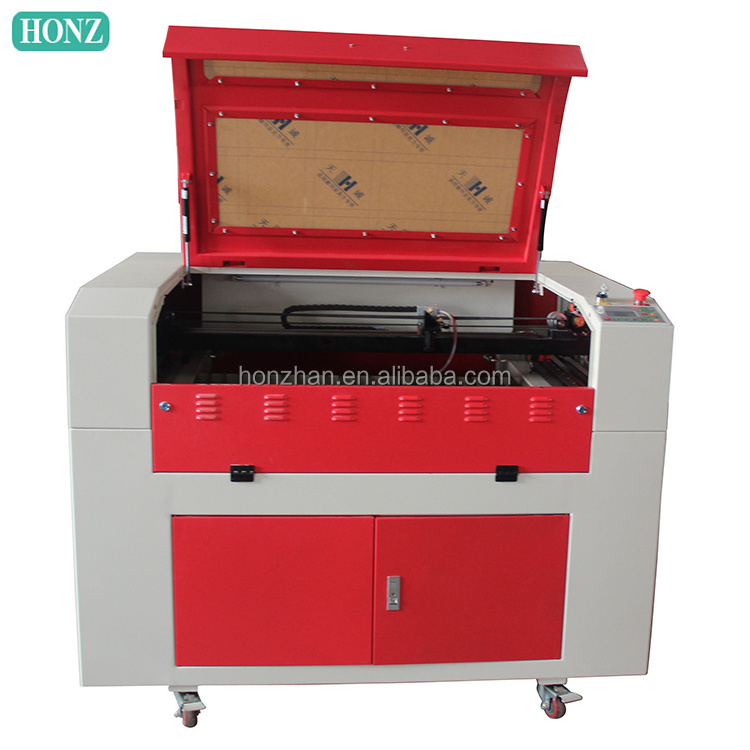

Our HZ6040 (600*400mm working size) laser engraving machine photos:
You can choose Knife working table or Honeycomb work table.
We have laser engraving machines in stock, if you need them, please be free contact us. Our delivery speed is very fast !
Laser engraving machine parts:
Laser engraving machine can engrave and cut on non-metal materials: cloth, leather, acrylic glass, acrylic, plastic, rubber, tiles, wood, bamboo products, fur, paper and ceramics, etc.
1). 1 year for the whole laser cutting machine.
2). 3 months for laser tube (ordinary quality ), lens and mirror.(9 months for Reci laser tube)
3). 6 months for equipments outfit, such as chiller, water pump, fan, air pump,exhaust fan etc
4). Fast technical guide and solution within 24 hours by email and web, Skype, pictures, videos !
1. Our machine use plywood packaging, meet export demand. We use Water-proof plastic film package with foam protection in each corner, solid seaworthy wood Box package with steel belt, save space as much as possible for container loading.
2. We can cooperate use EXW, FOB or CIF term.
3. Standard machine delivery time: 5-7 working days, for non-standard machines and customized machines according to client s specific requirements, it would be 7 to 10 working days.
4. After shipment, we will send documents to you, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
Please also notice that we have more laser engraver/cutter machines models with different watts laser power.
|
Model |
Working size |
Laser power |
|
HZ5030 |
500*300mm |
40w, 60w laser cut software |
|
HZ6040 |
600*400mm |
60w,80w,100w, 120w 150w; Reci tube W2, W4 |
|
HZ9060 |
900*600mm |
60w,80w,100w, 120w 150w; Reci tube W2 W4 W6 |
|
HZ1280 |
1200*800mm |
60w,80w,100w, 120w 150w; Reci tube W2 W4 W6 |
|
HZ1290 |
1200*900mm |
60w,80w,100w, 120w 150w; Reci tube W2 W4 W6 |
|
HZ1390 |
1300*900mm |
60w,80w,100w, 120w 150w; Reci tube W2 W4 W6 |
|
HZ1490 |
1400*900mm |
60w,80w,100w, 120w 150w; Reci tube W2 W4 W6 |
|
HZ1610 |
1600*1000mm |
60w,80w,100w, 120w 150w; Reci tube W2 W4 W6 |
|
HZ1225 |
1200*2500mm |
60w,80w,100w, 120w 150w; Reci tube W2 W4 W6 |
|
HZ1325 |
1300*2500mm |
80w,100w, 120w 150w; Reci tube W2 W4 W6 |
|
Please Note: above is our standard models, customize is accepted according your needs |
||
