Quick Details
Quick Details
-
Place of Origin:
-
China
-
Weight (KG):
-
120
-
Power (kW):
-
0.09

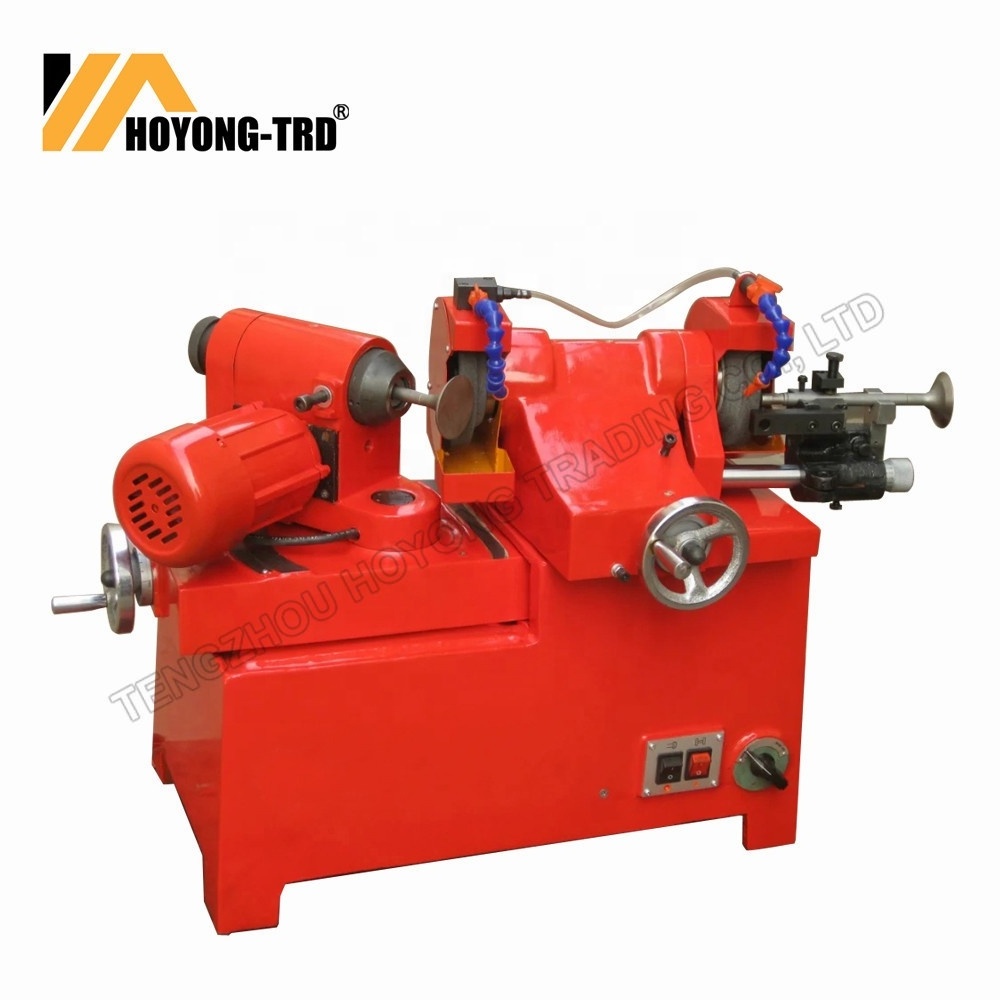

Valve Grinder Machine VR90/3M9390A
3M9390A Valve grinder is specially designed for automobile reparing factories and agricultural Machinery repairing centers. This machine is compact and light weight, with simple construction and easy operation. It is necessary equipment for automobile repairing services.
Specifications
1. Valve seat and valve grinding machine;
2. Velve grinder;
3. Easy operation;
4. High accuracy;
VALVE SEAT & VALVE GRINDING MACHINE
Features:
1. This machine is special for grinding the valves in internal combustion engines (the valves in engines on automobiles and tractors), featuring small size, flexible and easy operation.
2. The parts are ground with high surface finish and accuracy.
|
Model
|
Unit
|
VR90/3M9390A
|
|
Max. dia. of valves to be ground
|
mm
|
90
|
|
Dia. of valve stems to be gripped (standard)
|
mm
|
6 ~ 16
|
|
Dia. of valve stems to be gripped (special)
|
mm
|
4 ~ 7
|
|
Dia. of valve stems to be gripped (special)
|
mm
|
14~ 18
|
|
Angles of valves to be ground
|
°
|
25 ~ 60
|
|
Longitudinal movement of geared head
|
mm
|
120
|
|
Transverse movement of grinding wheel head
|
mm
|
95
|
|
Max. cutting depth of ground valve
|
mm
|
0.025
|
|
Grinding wheel spindle speed
|
rpm
|
4500
|
|
Geared head spindle speed
|
rpm
|
125
|
|
Motor for grinding wheel head
|
|
|
|
Model
|
|
YC-Y7122
|
|
Power
|
kw
|
0.37
|
|
Voltage
|
v
|
220
|
|
Frequency
|
Hz
|
50/60
|
|
Speed
|
rpm
|
2800
|
|
Motor for geared head
|
|
|
|
Model
|
|
JZ5622
|
|
Power
|
kw
|
0.09
|
|
Voltage
|
v
|
220
|
|
Frequency
|
Hz
|
50/60
|
|
Weight
|
kg
|
120
|
|
External dimensions (L * W * H)
|
cm
|
68 * 60 * 60
|
