* Made with 30 years+ expertise and patents.
* Many machines available to order
* Experienced techs for all your questions
* Customization available
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
10 m2/h
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Hualong
-
Dimension(L*W*H):
-
1700*950*2000mm
-
Weight:
-
1400 kg
-
Max pressure:
-
60 T
-
Blade feeding speed:
-
80 mm/s
-
Max processing size:
-
200x300mm
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
India
-
Certification:
-
ISO9001:2015,ISO14001:2105
Quick Details
-
Type:
-
Other
-
Power:
-
7.5 kw
-
Cutting thickness (max):
-
Other
-
Production Capacity:
-
10 m2/h
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Hualong
-
Dimension(L*W*H):
-
1700*950*2000mm
-
Weight:
-
1400 kg
-
Max pressure:
-
60 T
-
Blade feeding speed:
-
80 mm/s
-
Max processing size:
-
200x300mm
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
India
-
Certification:
-
ISO9001:2015,ISO14001:2105

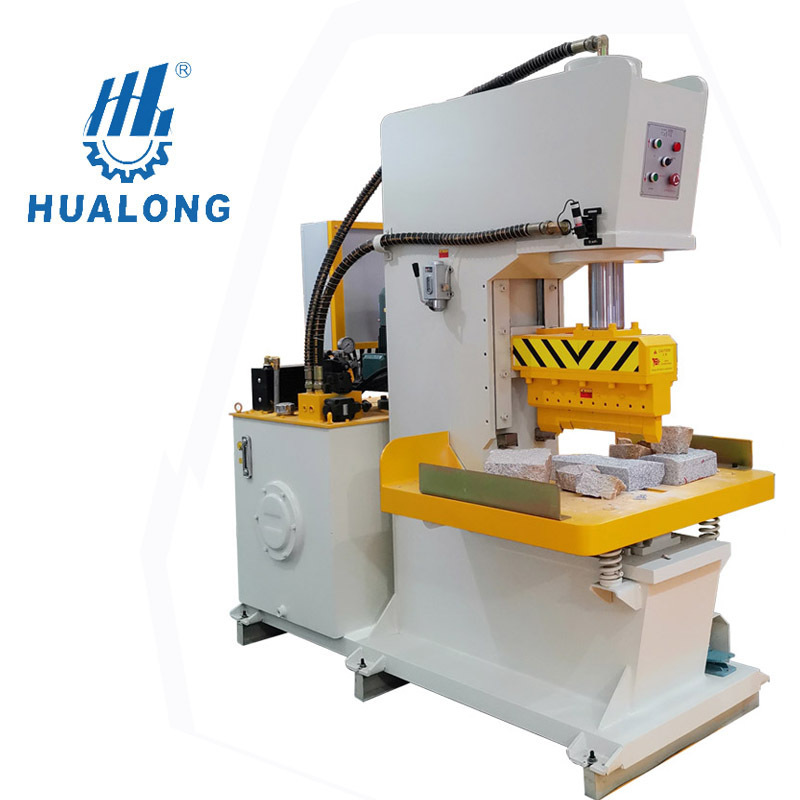

Stone Splitting Machine
HLSY-S90H
is designed with hydrauli driven to split stone into two pieces of cubes or blocks with a rustic appearance. It is used to produce slab paving and flat finished products.
It allows the execution of various works, such as pavements, facades and rustic wallls.
Main Features:
* Open frame machine model, simple to maintain
* Made of strong cast iron and high quality parts ensuring stability during working.
* Fast lift up movement improves the working efficiencty greatly .
* A wedged chisel equilization system to provide maximum contact with the stone surface for a cleaner arris line.
* Heat-treated and hardened high-carbon steel chisels produce superior splits every time.
* Made of strong cast iron and high quality parts ensuring stability during working.
* Fast lift up movement improves the working efficiencty greatly .
* A wedged chisel equilization system to provide maximum contact with the stone surface for a cleaner arris line.
* Heat-treated and hardened high-carbon steel chisels produce superior splits every time.
|
Thechincal Data
|
|
|
|
|
||||
|
Model No.
|
|
HLSY-S90H
|
HLSY-S95H
|
HLSY-S96H
|
||||
|
Pressure force
|
ton
|
60
|
80
|
120
|
||||
|
Blade feeding speed
|
mm/s
|
80
|
90
|
90
|
||||
|
Max. working height
|
mm
|
200
|
300
|
300
|
||||
|
Max. working length
|
mm
|
300
|
400
|
500
|
||||
|
Output per hour
|
m
2
|
10
|
18
|
18
|
||||
|
Power
|
kw
|
7.5
|
11
|
11
|
||||
|
Voltage / Frequency
|
V / Hz
|
380 / 80
|
380 / 80
|
380 / 80
|
||||
|
Flow rate
|
L/M
|
41
|
47
|
47
|
||||
|
Hydraulic oil grade
|
#
|
46
|
46
|
46
|
||||
|
Oil tank capacity
|
L / kg
|
240 / 200
|
350 / 290
|
350 / 290
|
||||
|
Gross weight
|
kg
|
1400
|
1900
|
2400
|
||||
|
Dimensions ( L x W x H )
|
cm
|
170x95x200
|
200x100x220
|
205x100x215
|
||||
Quality Fabrication Equipment
Our Service
Pre-sale Service
* Inquiry and consulting support.
* Configure best machine line according customer condition
* View our Factory.
* Configure best machine line according customer condition
* View our Factory.
After-sale Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
