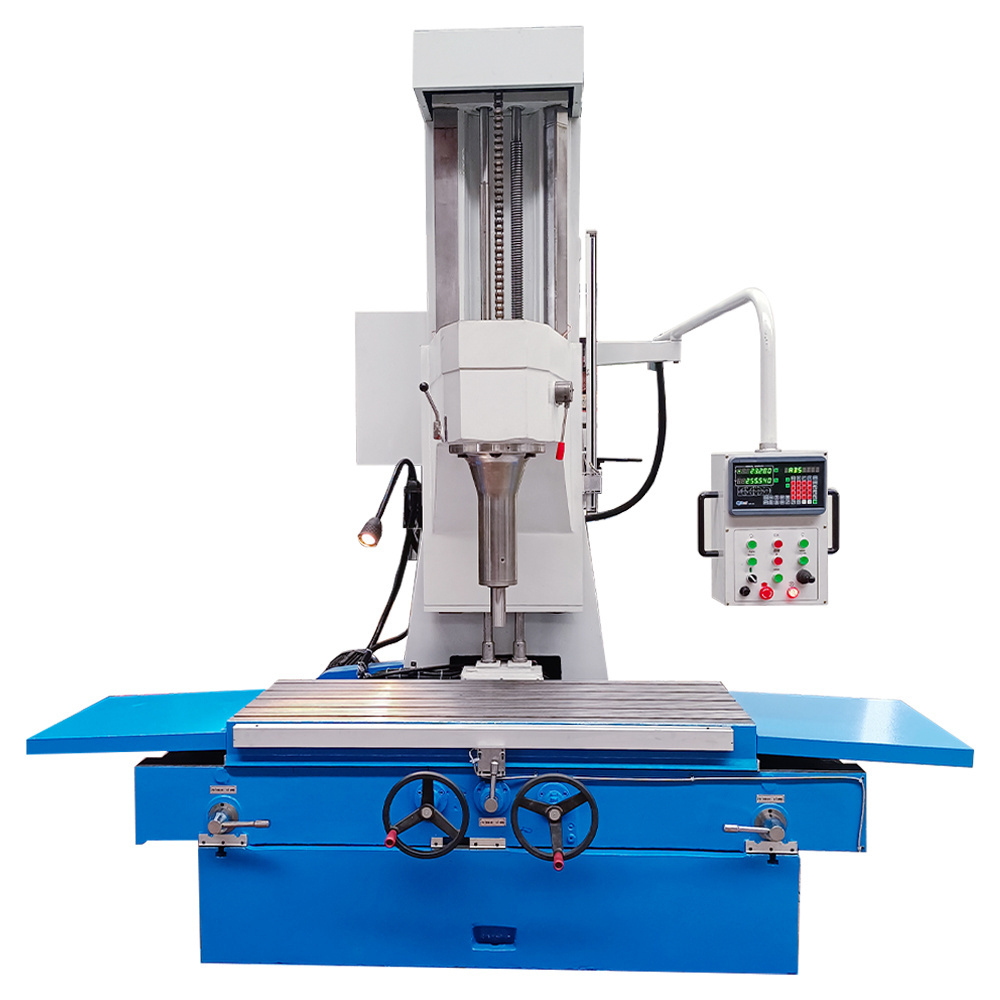

BM200 Cylinder Boring Milling Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $9900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Table Travel (Z) (mm):: 700 mm

Travel (W-axis) (mm):: 200 mm

Marketing Type:: Hot Product

Range of Spindle Speed(r.p.m):: 35 r.p.m

Place of Origin:: Henan, China

Brand Name:: WADJAY

Voltage:: 380V

Weight (T):: 3500 T

Applicable Industries:: Other

Product name:: Boring machine

Model:: Various models available

Product color:: Customized

Quick Details

Table Size (mm):: 48x220

Table Travel (X) (mm):: 120 mm

Table Travel (Y) (mm):: 1850 mm

Table Travel (Z) (mm):: 700 mm

Travel (W-axis) (mm):: 200 mm

Marketing Type:: Hot Product

Range of Spindle Speed(r.p.m):: 35 r.p.m

Place of Origin:: Henan, China

Brand Name:: WADJAY

Voltage:: 380V

Weight (T):: 3500 T

Applicable Industries:: Other

Product name:: Boring machine

Model:: Various models available

Product color:: Customized

DESCRIPTION

Fine Boring Machine

* Base, Cross Slide, Table, Column and boring slide (gear box) are of fine-graded, alloy casting.

* Stress relief after rough machine ensures rugged and vibration free operation of the machine.

* Boring slide setting with tappered gibs to avoid vibration and achieve better boring accuracy.

* Auto stop spindle rotation and rapid return of boring head after completion of boring operation.

* Anti-friction wear resistant lines provided on all sliding surfaces of the boring slide to minimise wear and tear.

- Auto Mobile Reconditioning Machinery – Fine Boring Machines

Owing to our expertise in this field, we are offering the high-performance Fine Boring Machine. This admirable range finds great application in re-boring of automobile, marine and stationary engines of various sizes. Installed with CBM versions, these machines find application for various milling purposes. These products can be availed at pocket-friendly prices by our valuable clients.

- Main parameters of boring machine :

According to the parameters, the reasonable choice of equipment

Model	T7220C
Max. boring Diameter	200mm
Max. Boring Depth	500mm
Diameter of Milling Cutter Head	250mm (315mm is optional)
Max .Milling Area (L x W)	850x250mm (780x315mm)
Spindle Speed Range	53-840rev/min
Spindle Feed Range	0.05-0.20mm/rev
Spindle Travel	710mm
Distance from Spindle Axis to Carriage Vertical plane	315mm
Table Longitudinal Travel	1100mm
Table Longitudinal feed speed	55,110mm/min
Table Longitudinal quick move speed	1500mm/min
Table cross travel	100mm
Machining accuracy	100mm
		Dimension Accuracy 1T7
		Roundness 0.005
		Cylindricity 0.02/300
Boring roughness	Ra1.6
Milling roughness	Ra1.6-3.2

DETAIL IMAGES

PACKING & SHIPPING

1.All export goods will be packed according to customer requirements before shipment and used in boring machine.
2.Before the goods arrived destination port, we will provide customer bill of lading and clearance documents for making clearance customs.

ABOUT US

FAQ

Q1: How long is the warranty?

A1: We guarantee a 12-month after-sale service .Any problem when using ,call or mail us ,we will advise on technically sound methods .If needed ,we will provide free accessories

Q2: Can I have my own customized product?
A2: Yes, your are welcome customized requirements for color, logo, design, package, carton mark, etc.

Q3: How can I get sample and how long will it take?

A3: Sample policy is different for different items. Please kindly contact us to get details.

Q4: What's the MOQ?

A4: MOQ is different for different items, please kindly contact us for confirming.

Q5: How do I pay for my purchase order?

A5: T/T, L/C at sight, Western Union, MoneyGram

Q6: What is your terms of payment?

A6: For regular order, T/T 30% as deposit, and 70% before Shipment. We'll show you the photos of the products and packages before you pay the balance

Q7: How about your delivery time?

A7: Generally, It will take about 7~15 days to send goods out. The specific delivery time depends on the items and the quantity of your order
