- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SUNJ
-
Model Number:
-
ZW32-12M/630
-
Material:
-
Stainless Steel
-
Product name:
-
High Voltage Vacuum Circuit Breaker
-
Pole:
-
3pole
-
certificate:
-
ISO9001
-
Application:
-
Industrial
-
Poles Number:
-
3
-
Rated Frequency:
-
50Hz
-
Type:
-
circuit breaker
-
Mechanical Life:
-
10000 Times
Quick Details
-
Breaking Capacity:
-
20KA
-
Rated Voltage:
-
12KV
-
Rated Current:
-
630A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SUNJ
-
Model Number:
-
ZW32-12M/630
-
Material:
-
Stainless Steel
-
Product name:
-
High Voltage Vacuum Circuit Breaker
-
Pole:
-
3pole
-
certificate:
-
ISO9001
-
Application:
-
Industrial
-
Poles Number:
-
3
-
Rated Frequency:
-
50Hz
-
Type:
-
circuit breaker
-
Mechanical Life:
-
10000 Times
Products Description
Products Description
|
Name
|

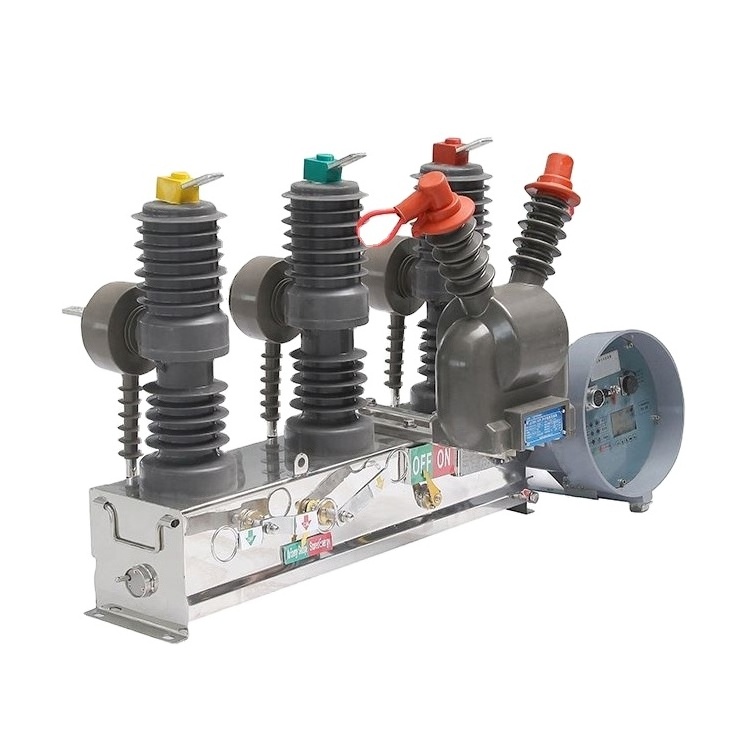

Outdoor high voltage intelligent vacuum circuit breaker
|
|
Material
|
stainless steel
|
|
Product model
|
ZW32-12M/630
|
|
Rated voltage
|
12KV
|
|
Rated current
|
630A
|
|
Rated short circuit breaking current
|
20KA
|
|
Rated current peak tolerance
|
50KA
|
|
Rated short-time resistance current
|
20KA
|
|
Rated short circuit close current (peak value)
|
50KA
|
|
Product features
|
Outdoor high voltage
|
|
Application field
|
Industrial control
|
|
Length * width * height of each product (CM)
|
92.2*78*72
|
|
Gross weight of each commodity (kg)
|
180KG
|
