Quick Details
-
Brand Name:
-
Laihua
-
Model Number:
-
HVT-1000A
-
colour:
-
Dark Grey,white
Quick Details
-
Warranty:
-
1 years
-
Type:
-

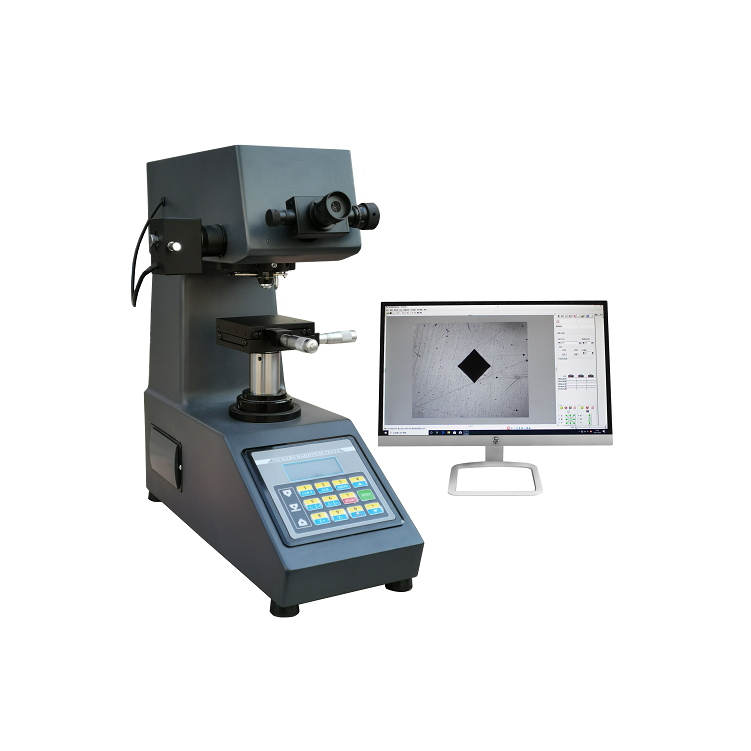

Vickers Hardness Tester
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Laihua
-
Model Number:
-
HVT-1000A
-
colour:
-
Dark Grey,white
Specification
|
Model
|
HVT-1000A/B
|
|
Measuring range
|
5-3000HV
|
|
Test Force
|
0.098,0.246,0.49,0.98,1.96,2.94, 4.90,9.80N (10,25,50,100,200,300,500,1000 gf)
|
|
Lens/indenters with
|
HVT-1000B:With Hand Turret
HVT-1000A: With Auto Turret |
|
Carriage Control
|
Automatic(loading /holding-up of the load/unloading)
|
|
Reading microscope:
|
10X
|
|
Objectives
|
10x, 40x
|
|
Data output
|
Built-in printer, RS232 Interface
|
|
Total amplification
|
100×，400×
|
|
Dwell Time of the Test Force
|
0~60s (5 seconds as a unit)
|
|
Min.Graduation Value of the Testing Drum Wheel
|
0.01μm
|
|
Dimension of the XY Table
|
100×100mm
|
|
Max. height of test piece
|
90mm
|
|
Depth of throat
|
100mm
|
|
Travel of the XY Table
|
25×25mm
|
|
Power supply
|
220V,60/50Hz
|
|
Dimensions
|
480×305×545mm
|
|
Net Weight/Gross Weight
|
35Kg/55kg
|
|
Package dimension
|
610mm*450mm*720mm
|
