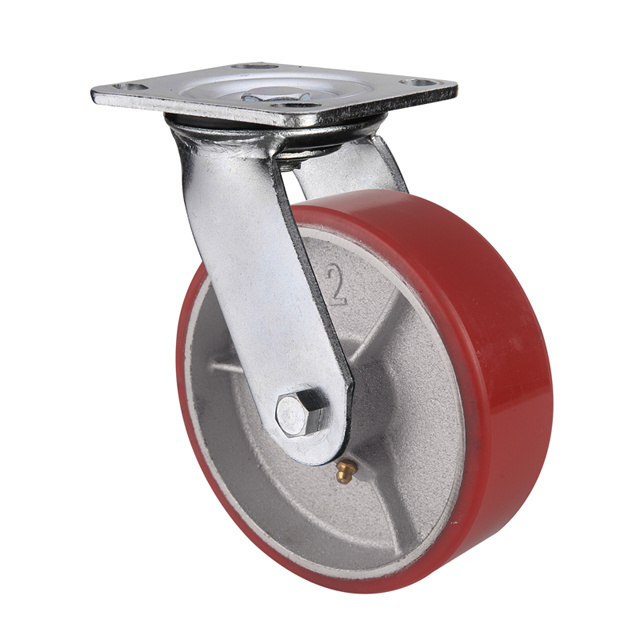

Great quality Dual Bearing Swivel 4 / 5 / 6 /8 inch Red PU Cast iron core 200 mm trolley wheel heavy duty plate caster
Great quality Dual Bearing Swivel 4 / 5 / 6 /8 inch Red PU Cast iron core 200 mm trolley wheel heavy duty plate caster
Great quality Dual Bearing Swivel 4 / 5 / 6 /8 inch Red PU Cast iron core 200 mm trolley wheel heavy duty plate caster
Great quality Dual Bearing Swivel 4 / 5 / 6 /8 inch Red PU Cast iron core 200 mm trolley wheel heavy duty plate caster
Great quality Dual Bearing Swivel 4 / 5 / 6 /8 inch Red PU Cast iron core 200 mm trolley wheel heavy duty plate caster
Great quality Dual Bearing Swivel 4 / 5 / 6 /8 inch Red PU Cast iron core 200 mm trolley wheel heavy duty plate caster
Great quality Dual Bearing Swivel 4 / 5 / 6 /8 inch Red PU Cast iron core 200 mm trolley wheel heavy duty plate caster
Great quality Dual Bearing Swivel 4 / 5 / 6 /8 inch Red PU Cast iron core 200 mm trolley wheel heavy duty plate caster

Great quality Dual Bearing Swivel 4 / 5 / 6 /8 inch Red PU Cast iron core 200 mm trolley wheel heavy duty plate caster

FOB Reference Price: Get Latest Price
≥1 Pieces
US $1.4
≥300 Pieces
US $1.3
≥500 Pieces
US $1.2
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
1 year
Place of Origin:
Guangdong, China
Wheel size:
100 mm / 125 mm / 150 mm / 200 mm / 250 mm
Wheel material:
Cast iron pu, Resistant to most chemicals, solvents and water
Bearing Type:
Double ball bearing
Load capacity:
360 kg to 800 kg(792 lb to 1760 lb)
Top plate size:
115*100mm
Hole to hole:
72*85mm
Ball raceway:
Double ballrace
Zinc plating:
RoHS standard, 24 hr salt spray test passed
Application:
hand cart, mobile equipment

Quick Details

Material:
Iron, POLYURETHANE, Steel, PU
Type:
Plate Casters
Model Number:
29XXXBCPU PU caster wheels for trolley
Warranty:
1 year
Place of Origin:
Guangdong, China
Wheel size:
100 mm / 125 mm / 150 mm / 200 mm / 250 mm
Wheel material:
Cast iron pu, Resistant to most chemicals, solvents and water
Bearing Type:
Double ball bearing
Load capacity:
360 kg to 800 kg(792 lb to 1760 lb)
Top plate size:
115*100mm
Hole to hole:
72*85mm
Ball raceway:
Double ballrace
Zinc plating:
RoHS standard, 24 hr salt spray test passed
Application:
hand cart, mobile equipment
Great quality Dual Bearing Swivel 4 / 5 / 6 /8 inch Red PU Cast iron core 200 mm trolley wheel heavy duty plate caster
Product Description
SPECIFICATIONS FOR PRODUCT
Housing:
Solid steel welded construction, zinc plated, double ball-race swivel head, dust-proof seal，24 hours salt spray test passed
Wheel:
Materials: Cast iron PU, non-marking
Hardness: 90±5 Shore A
Bearing type: Double ball bearing
Temperature range: -20℃ to 80℃
Type
29 Series (Size: 100mm/125mm/150mm)
Artical NO.
29100BCPU
29125BCPU
29150BCPU
Wheel Diameter
100mm(4 inch)
125mm(5 inch)
150mm(6 inch)
Wheel Width
50mm
50mm
50mm
Mounting height
142mm
164mm
190mm
Bearing Type
Double ball bearing
Double ball bearing
Double ball bearing
Offset
35mm
39mm
45mm
Top Plate Size
115*100mm
115*100mm
115*100mm
Hole To Hole
72*85mm
72*85mm
72*85mm
Bolt Hole Size
19*10mm
19*10mm
19*10mm
Wheel Material
Cast iron PU
Cast iron PU
Cast iron PU
Plate Thickness
6.0mm
6.0mm
6.0mm
Housing Thickness
6.0mm
6.0mm
6.0mm
Loading Capacity
360KG
450KG
560KG
Type
29 Series (Size: 200mm/250mm)
Artical NO.
29200BCPU
29250BCPU
Wheel Diameter
200mm(8 inch)
250mm(10 inch)
Wheel Width
50mm
50mm
Mounting height
240mm
280mm
Bearing Type
Double ball bearing
Double ball bearing
Offset
56mm
63mm
Top Plate Size
115*100mm
115*100mm
Hole To Hole
72*85mm
72*85mm
Bolt Hole Size
19*10mm
19*10mm
Wheel Material
Cast iron PU
Cast iron PU
Plate Thickness
6.0mm
6.0mm
Housing Thickness
6.0mm
6.0mm
Loading Capacity
670KG
800KG
