Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 400*150*200 mm, 400*200*200 mm
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
220/380V(adjustable)
-
Dimension(L*W*H):
-
2100x1850x1700mm
-
Weight (KG):
-
4500 kg
-
Shaping cycle:
-
20-30s
-
Vibration force:
-
45KN
-
Vibration style:
-
Mould vibration
-
Electricity:
-
220/380v(Adjustable)
-
Total weight:
-
2600KGS
-
Product Name:
-
Mobile block making machines price in UAE
-
Block Type:
-
hollow blocks, hourdis, solid block
-
Raw material:
-
cement, sand, gravel, crushed stone.ect.
-
mixer:
-
JS 500 mixer
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
12000 pcs/8hours
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 400*150*200 mm, 400*200*200 mm
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
220/380V(adjustable)
-
Dimension(L*W*H):
-
2100x1850x1700mm
-
Weight (KG):
-
4500 kg
-
Shaping cycle:
-
20-30s
-
Vibration force:
-
45KN
-
Vibration style:
-
Mould vibration
-
Electricity:
-
220/380v(Adjustable)
-
Total weight:
-
2600KGS
-
Product Name:
-
Mobile block making machines price in UAE
-
Block Type:
-
hollow blocks, hourdis, solid block
-
Raw material:
-
cement, sand, gravel, crushed stone.ect.
-
mixer:
-
JS 500 mixer

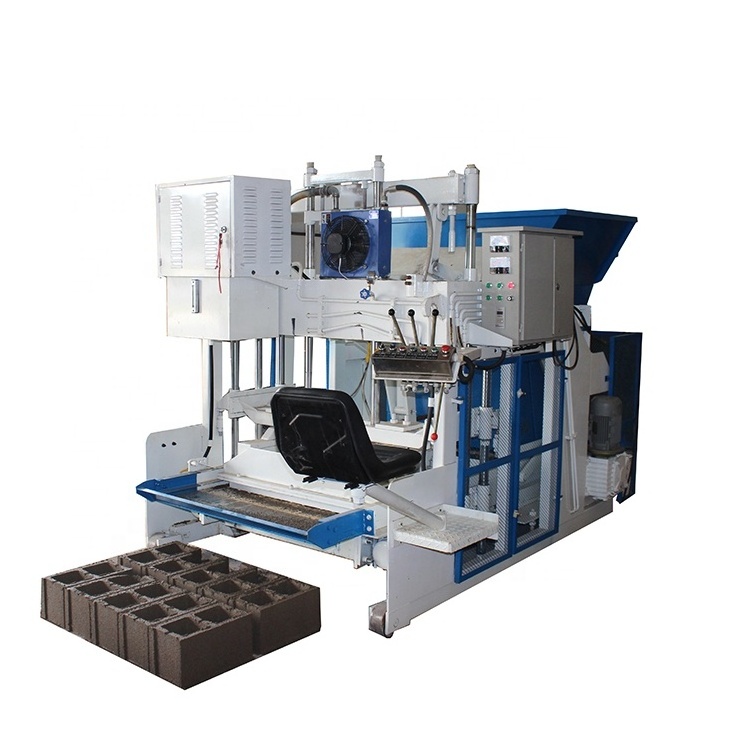

Automatic mobile brick machines price in UAE
WT10-15 mobile brick machines in UAE
Reasonable structure and high technology content. Using molding vibration and hydraulic transmission, it can walk both automatically and manual, also move forward or back. The capacity for this machine 6 000 -8000 pcs/day.
Advantage
1.Automatic control: M aterial feeding automatic ,pressing automatic,moving automatic .
2. With hydraulic pressing system,the block density is perfect.
3. No need pallet .
Capacity table of this mobile brick machines price in UAE
|
No. |
Block size |
Pcs/mould |
Pcs/hour |
Pcs/day |
|
1 |
400x200x200mm |
6 |
1 0 00 |
6 000 |
|
2 |
400x150x200mm |
8 |
13 00 |
10 000 |
|
3 |
400x 250 x200mm |
4 |
7 00 |
56 00 |
|
4 |
400x 12 0 x200mm |
9 |
1500 |
12000 |
Block weight of this mobile brick machines in UAE
|
Block size |
P roportion |
W eight (piece) |
|
400x200x200mm |
C ement,stone,sand |
16-18kg |
|
C ement,slag |
10-12kg |
|
|
C ement,stone,sand,slag |
13-14kg |
|
|
400x250x200mm |
C ement,stone,sand |
18-20kg |
|
C ement,slag |
12-14kg |
|
|
C ement,stone,sand,slag |
13-15kg |
Details of WT10-15 mobile block machine in UAE
Customer feedback
Shipment
Our service
Pre-sales service
1. Inquiry and consulting support
2. Sample testing support
3. View our factory
After -sales service
1. Instruction for installing and operating
2. Engineers availiable oversea
Note:
1) for some contries whose visas are difficult obtained, costomers can also send their techniciens to our company to receive free guidance and training
2) we are responsible for all the repairs that caused by our quality problems within one year warranty.
3) we will provide one set of spare parts of change for free with shipment
4) we will make every effort to slove your problems and your sucess will add new glory to us
