We produce
2",3", and 4"
Hammer Union Seals in Nitrile for standard service and in
FKM
or
HNBR
for Sour Gas Service. In addition to the standard molded rubber seals, we offer these with either a
brass
or
stainless steel
anti-extrusion ring. Also available in
PTFE,PU
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
Fig 1502,1002,2202
-
Color:
-
Customers Required
-
Application:
-
Valves,Oilfield , cementing, fracturing, acidizing and choke lines
-
Standard or Nonstandard:
-
Standard Size
-
Hardness:
-
70-95 Shores
-
Material:
-
HNBR
-
Usage:
-
Oil Gas Industry
-
Sample:
-
Free samle
-
Style:
-
Mechanical Seal
-
MOQ:
-
30 pcs
-
Feature:
-
Oil Resistance
Quick Details
-
Size:
-
1",1.5",2",3",4",5",6"
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SI PAI TUO
-
Model Number:
-
Fig 1502,1002,2202
-
Color:
-
Customers Required
-
Application:
-
Valves,Oilfield , cementing, fracturing, acidizing and choke lines
-
Standard or Nonstandard:
-
Standard Size
-
Hardness:
-
70-95 Shores
-
Material:
-
HNBR
-
Usage:
-
Oil Gas Industry
-
Sample:
-
Free samle
-
Style:
-
Mechanical Seal
-
MOQ:
-
30 pcs
-
Feature:
-
Oil Resistance
Products Description
1502/1002/602
Hammer Union Seals W
ith Brass Or Stainless Metal Ring
Hammer union seals are used in the connections between flexible hoses or pipes used in the oil drilling industry. The seal provides a critical fluid tight connection within the union hardware. Hammer unions consist of a thread end, a nut end, and a hammer nut that when tightened seal the assembly with the assistance of an elastomeric seal. The seal is lipped to prevent it from falling out when inverted. Some profiles such as
Fig 2202, Fig 1004, Fig 1502, Fig 2002, Fig 602, Fig 1002
etc require a Hammer Union Lip Seal or an 'O'Ring depending on the Size of the Hammer Union.
Size Chart of hammer union seals
|
Size
|
2"
|
3"
|
4"
|
|
|||
|
Material
|
Hammer Union Seals in Nitrile for standard service and in FKM or HNBR for Sour Gas Service. In addition to the standard molded rubber seals, we offer these with either a brass or stainless steel anti-extrusion ring. Also available in PTFE,PU
|
|
|
|
|||
|
Pressure
|
6000psi to 15000psi
|
|
|
|
|||
|
Hardness
|
75Shore A to 95 Shore A
|
|
|
|
|||
|

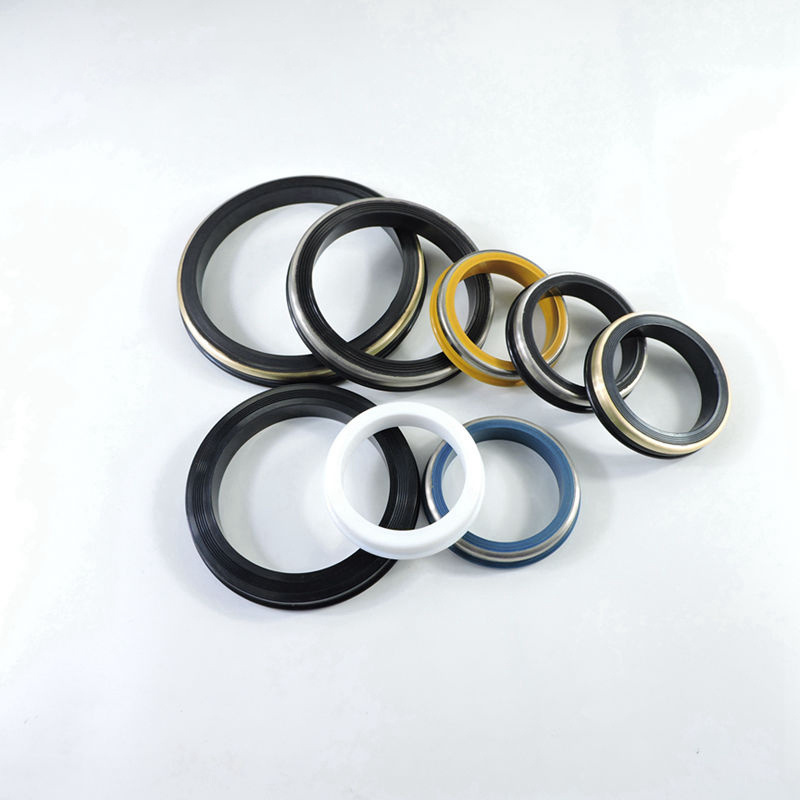

Color
|
Material
|
|
Black
|
NBR/FKM/HNBR with Brass or Stainless Steel
|
|
Blue
|
FKM with Stainless Steel
|
|
Yellow
|
Fkm With Stainless steel
|
|
White
|
PTFE
|
|
Note
|
Material and color descriptions are only for seals shown in the picture on the left
|
Material :Seal parts NBR,FKM /FPM,HNBR/HSN ;
Back up ring Brass or stainess steel
Include :one piece swivel packing seal;two piece of swivel dust /wipper seals;three pieces swivel joint ball plug and one o rings Used for oil&gas Oilfield Flowline wellhead swivel Joints
|
Name
|
Plug Valve Seals and Kits
|
|
Size
|
1inch and 2inch
|
|
Material
|
NBR+Brass /SS ;
FKM+Brass /SS ; HNBR W/Brass back up or Stainless steel Back up |
|
Application
|
Oil&Gas sealing flowline ;1502 ,1002 Plug valves
|
|
Pressure
|
15000psi
|
|
Color
|
Black
|
