Quick Details
-
Dimension(L*W*H):
-
60*50*110cm
-
Weight (KG):
-
110
-
Power (kW):
-
0.55
-
Type:
-
Surface Grinding Machine
-
After-sales Service Provided:
-
Online support, Video technical support
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Advantage:
-
Recyling Using of band saw blade
-
Standard grinding wheel:
-
White corundum wheel
-
Saw blade width::
-
60mm
-
Power Source:
-
Electricity
-
Usage:
-
Grinding Products
-
Model:
-
S380
-
Precision:
-
High Accuracy
-
Max. Grinding Length:
-
2200mm
-
Power(W):
-
550W
-
Max. Grinding Diameter:
-
2200mm
-
Table Travel (Y) (mm):
-
0
-
Surface Roughness(μm):
-
0
-
Table Travel (X) (mm):
-
0
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MRCM
-
Voltage:
-
380V/220V 50HZ
-
Dimension(L*W*H):
-
60*50*110cm
-
Weight (KG):
-
110
-
Power (kW):
-
0.55
-
Type:
-
Surface Grinding Machine
-
After-sales Service Provided:
-
Online support, Video technical support
-
After Warranty Service:
-
Video technical support, Online support
-
Local Service Location:
-
None
-
Advantage:
-
Recyling Using of band saw blade
-
Standard grinding wheel:
-
White corundum wheel
-
Saw blade width::
-
60mm
-
Power Source:
-
Electricity
-
Usage:
-
Grinding Products
-
Model:
-
S380
-
Precision:
-
High Accuracy
-
Max. Grinding Length:
-
2200mm
-
Power(W):
-
550W
-
Max. Grinding Diameter:
-
2200mm
-
Table Travel (Y) (mm):
-
0
-
Surface Roughness(μm):
-
0
-
Table Travel (X) (mm):
-
0
-
Certification:
-
CE ISO
MR- S380 professional best band saw blade grinding/ welding machine with CE certificate
These machines are designed for grinding Bi-metal and wood-working saw blade tooth.
The front face of the tooth could be sharpened rapidly.
S380 could grind saw blades with variable teeth like 2/3,3/4,4/6 etc
Specification
| Model | MR-S380 |
|
Saw blade width |
16-45(60) mm |
|
Teeth space |
3-30mm |
|
Feed speed |
40-60 teeth/min |
| Motor degree | 0°-360° |
| Power | 380V/220V,50HZ,3 PHASE |
| Speed | 2800rmp |
| Motor | 550W |
| Grinding Wheel | 150mm |
| Dimension | 60*50*110cm |
| Weight | 110KG |
| Standard Equipment | Grinding wheel:2 pcs |
| Diamond pen: 1 pcs |
Details:

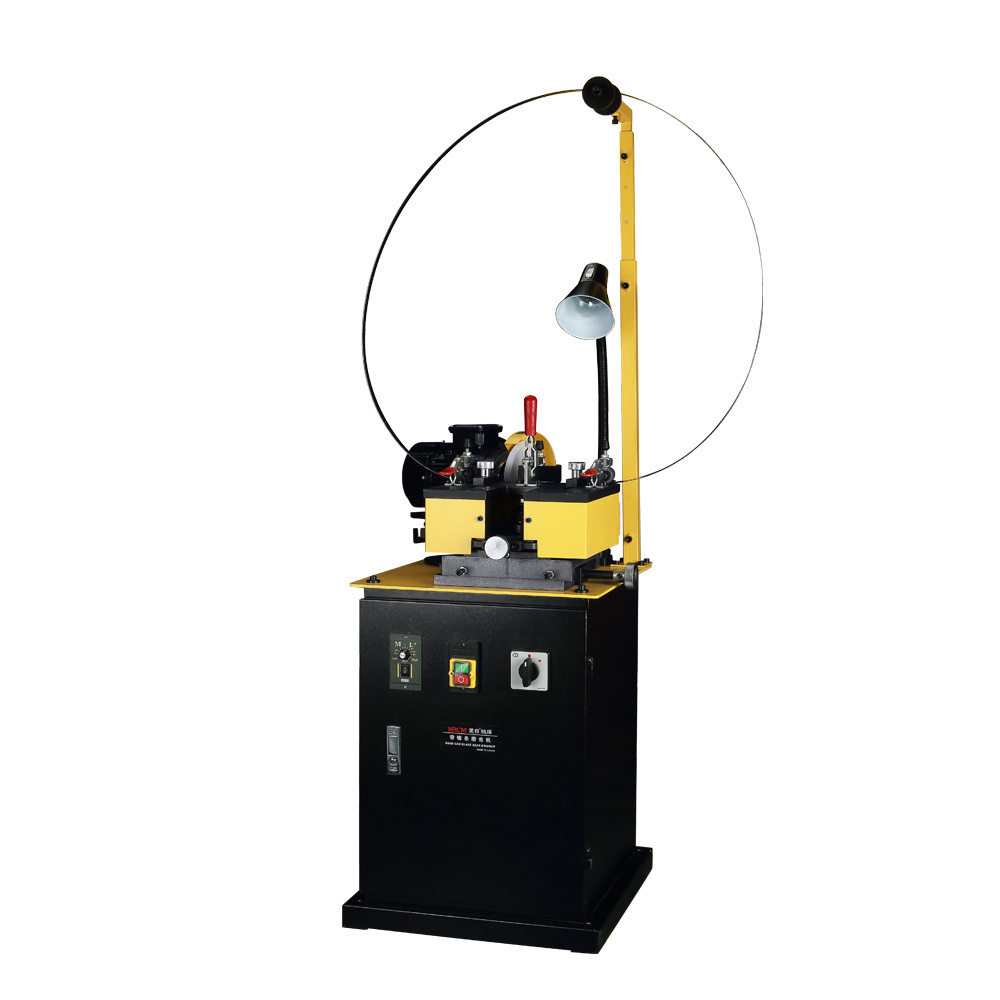

MR-S380
BAND SAW BLADE SHARPENER
Automatic Band Saw Blade Sharpener mainly used to polish and process the tooth flank,the back of tooth,and the throat of tooth of the jugged saw blade.It’s size is small sized,easy to adjust and of simple structure.
EXPORTING PACKAGE, SAFE AND STABLE
