Function: Both flat and Rotary Engraving
Table Surface T-slot Table
Frame Cast Iron Structure
X, Y Structure 25# HIWIN linear guide, helical rack
Z Structure Hiwin Rail Linear guide and TBI Ball Screw
Max. Power Consumption (Without Spindle)2.2 kw~3kw
Spindle Power 8* 2.2kw water cooling spindle
Spindle Speed 0-24000RPM
Drive Motors servo motor
Working Voltage AC380V/50-60Hz,3PH (Option: 220V/1phase)
Command Language G Code
Operating System SMARTECH
Rotary device 8 sets, 250mm diameter
Computer Interface USB
Software Compatibility Type3/UcancameV9 Software, (Option: Artcam Software)
Optional parts Japanese YASKAWA servo motor,
Italy HSD air cooling spindle
Dust collector
Movable flat table
- Product Details
- {{item.text}}
Quick Details
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1200 mm
-
Travel (Y Axis)(mm):
-
250 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
2.2 / 3 / 4.5 / 5.5 / 7.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SMARTECH
-
Voltage:
-
220V / 380V 50 / 60HZ,380V / 220V 50HZ
-
Dimension(L*W*H):
-
2680* 2000 * 1800mm
-
Weight (KG):
-
1500
-
Core Components:
-
Water or Air cooling
-
After-sales Service Provided:
-
Online support
-
Application:
-
Pvc
Quick Details
-
Working Table Size(mm):
-
1200*250
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.02 mm
-
Travel (X Axis)(mm):
-
1200 mm
-
Travel (Y Axis)(mm):
-
250 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Spindle Motor Power(kW):
-
2.2 / 3 / 4.5 / 5.5 / 7.5
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SMARTECH
-
Voltage:
-
220V / 380V 50 / 60HZ,380V / 220V 50HZ
-
Dimension(L*W*H):
-
2680* 2000 * 1800mm
-
Weight (KG):
-
1500
-
Core Components:
-
Water or Air cooling
-
After-sales Service Provided:
-
Online support
-
Application:
-
Pvc
FEATURES AT A GLANCE

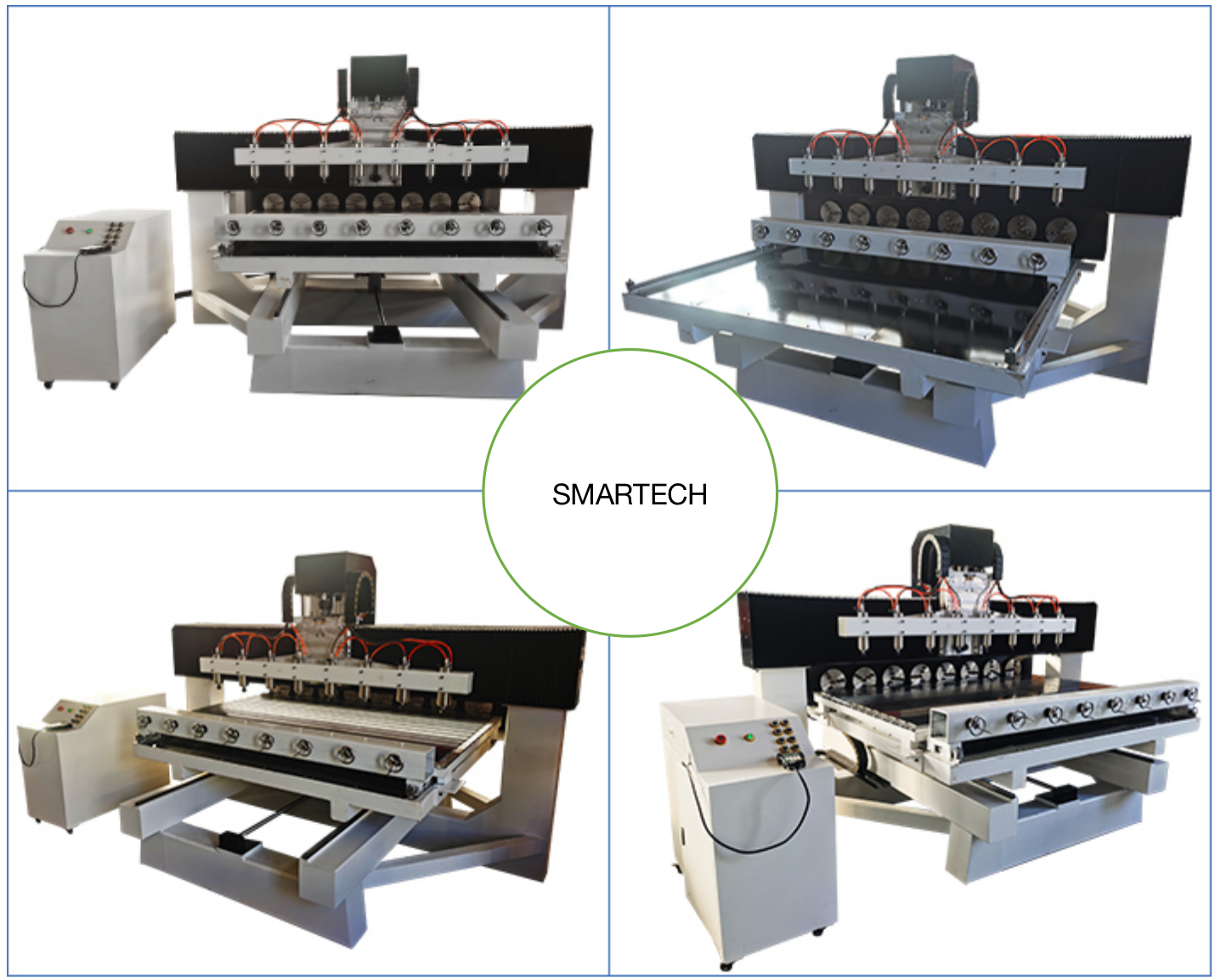

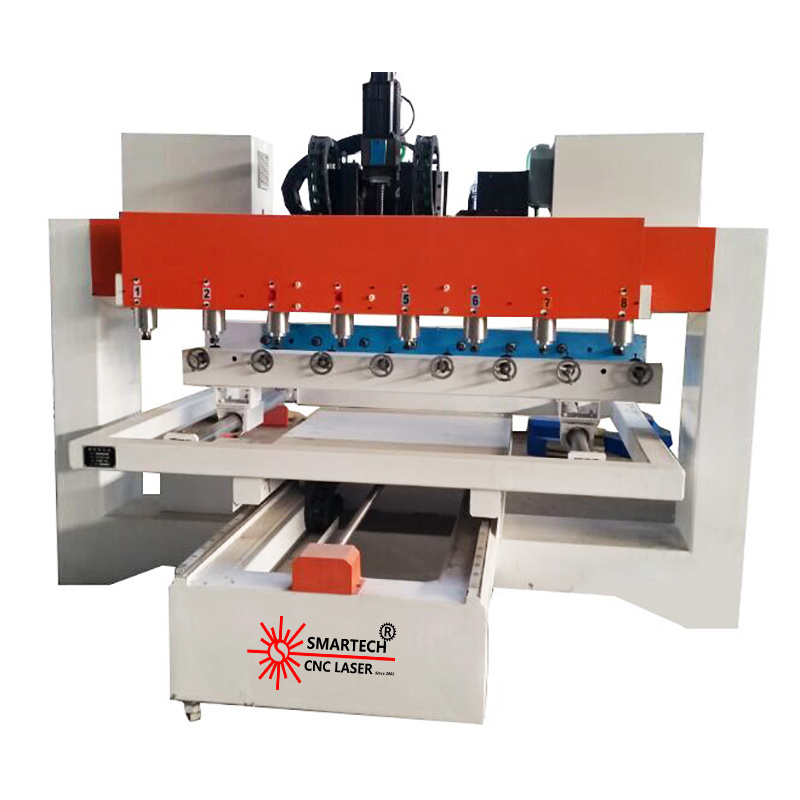

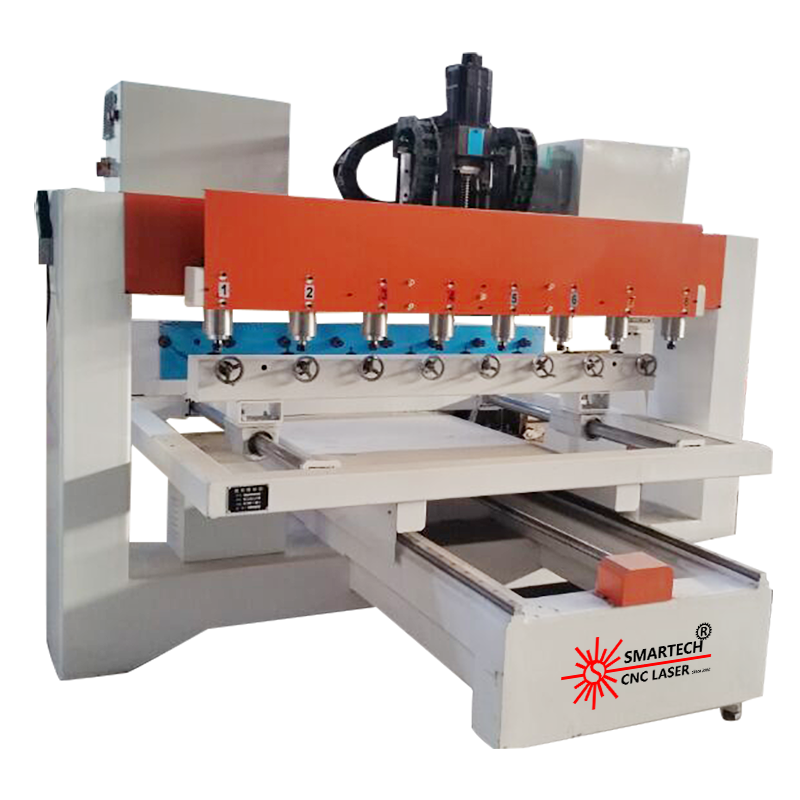

Furniture legs Making Multi spindles Cnc Wood Router 1530 Rotary 4th Axis With 8 Heads 3D Woodworking CNC Router Machine
SWR 1225 Series cnc router machine working size is 1200 * 250mm *8 heads ,equipped with 250mm rotary device, is professionally used for processing cylindrical products, such as wooden table legs,railing etc.
All machine sizes and specifications could be customized according to your requirements.
360 degree rotary for engraving body,Buddha statue, sculpture ,crafts and furnitures.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
1.SMARTECH 4 axis CNC router adopted HIWIN25 linear square rails, XYZ axis adopts import ball
screw, move smoothly, high accuracy carving. high-speed low noise.
2.SMARTECH 4 axis CNC router has widened machine head part assembly additional body-weight.and ancillary shorting, make the whole machine move more smoothly.
3.SMARTECH 4 axis CNC router with computer connection directly, support break, continue
carving after cut off electric.
4.SMARTECH 4 axis CNC router has multi functions, it can make the machine work on flat or cylinders.
PRODUCT CONFIGURATION
Spindle:
China HQD 2.2 kw air cooling
spindle. ER25 collet.
Good quality and high precision. 4.5kw, 6kw, 7kw for options
Motor:
Leadshine pure servo motor and driver,
powerful and high quality, with alarm function.
Chinese easy servo motor or YASKAWAservo
motor for options.
Controller:
DSP A18 four-axis control system. handle- controlled, fast reading speed. Intelligent processing memory, supports power fail to safeguard and break point function.
Multi spindles
8 spindles, 8 rotary axis, higher working efficiency.
Multi rotary devices big chuck. Could be made according to your requirements.
Kits in tool box collet tools
Z axis Hard Limit Japan OMRON limit
Servo Motor Dust Collector(optional single bag- double bag) water pump
SALES AND SERVICE NETWORK
Successful Project
Features:
1.SMARTECH 4 axis CNC router adopted HIWIN25 linear square rails, XYZ axis adopts import ball
screw, move smoothly, high accuracy carving. high-speed low noise.
2.SMARTECH 4 axis CNC router has widened machine head part assembly additional body-weight.and ancillary shorting, make the whole machine move more smoothly.
3.SMARTECH 4 axis CNC router with computer connection directly, support break, continue
carving after cut off electric.
4.SMARTECH 4 axis CNC router has multi functions, it can make the machine work on flat or cylinders.
machine recommendation
Fully Automatic Edge Bander for Wooden Furnitures Processi
woodworking heat vacuum membrane hot press machine
High Efficiency Three Heads Automatic Boring Hinge Hole
FAQ
-Q What is the payment terms? A:Western Union,Cash,T/T -Q How long is the delivery date?(After getting the deposit) A:
Delivery time is 5-7 working days for standard machine models,please confirm with us before payment. -Q How about the shipping
ways? A:By sea or by air -Q Is on site training is available ? A: Yes, we could provide training in our factory or at your
workshop after machine arrival. -Q Where is your factory located? How can I visit there? A:Jinan City, Shandong Province, China,
about 2hours train from Beijing and Shanghai. -Q Can I arrange sample for cutting test? A:Yes, always welcome. -Q How about your
laser machine package? A: Standard export wood package with free fumigation -Q How about the quality guarantee period? A:5 Years
for whole machine -Q How can you guarantee the production quality ? A:We have 15years experience of QC team; strictly quality
control system in our production process. -Q: How to install and run the machine? A: Our technician have installed the machine
before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.
Delivery time is 5-7 working days for standard machine models,please confirm with us before payment. -Q How about the shipping
ways? A:By sea or by air -Q Is on site training is available ? A: Yes, we could provide training in our factory or at your
workshop after machine arrival. -Q Where is your factory located? How can I visit there? A:Jinan City, Shandong Province, China,
about 2hours train from Beijing and Shanghai. -Q Can I arrange sample for cutting test? A:Yes, always welcome. -Q How about your
laser machine package? A: Standard export wood package with free fumigation -Q How about the quality guarantee period? A:5 Years
for whole machine -Q How can you guarantee the production quality ? A:We have 15years experience of QC team; strictly quality
control system in our production process. -Q: How to install and run the machine? A: Our technician have installed the machine
before shipping. For some small parts installation, we will send detail training video, user’s manual along with the machine. 95%
customers can learn by themselves.
