Quick Details
-
Charging Capacity:
-
350L
-
Reclaiming capacity:
-
280L
-
Speed of Mixing Drum:
-
25-30rpm
-
Discharge Way:
-
Self loading
-
Weight (KG):
-
310 kg
-
Product name:
-
400l concrete mixer
-
Power type:
-
Diesel/Gasoline/Electric Power
-
Application:
-
Road
-
Type:
-
Movable
-
Drum capacity:
-
400L
-
Mixing capacity:
-
320L
-
Bags of cement per batch:
-
1 Bag cement(50KG/BAG)
-
Drum rotation speed:
-
25-30rpm
-
Drum thickness:
-
3mm/4mm(Upper/Bottom)
-
Drum size:
-
800*900mm
Quick Details
-
Mixing Power:
-
3KW
-
Productivity:
-
6M³/H
-
Place of Origin:
-
Henan, China
-
Charging Capacity:
-
350L
-
Reclaiming capacity:
-
280L
-
Speed of Mixing Drum:
-
25-30rpm
-
Discharge Way:
-
Self loading
-
Weight (KG):
-
310 kg
-
Product name:
-
400l concrete mixer
-
Power type:
-
Diesel/Gasoline/Electric Power
-
Application:
-
Road
-
Type:
-
Movable
-
Drum capacity:
-
400L
-
Mixing capacity:
-
320L
-
Bags of cement per batch:
-
1 Bag cement(50KG/BAG)
-
Drum rotation speed:
-
25-30rpm
-
Drum thickness:
-
3mm/4mm(Upper/Bottom)
-
Drum size:
-
800*900mm

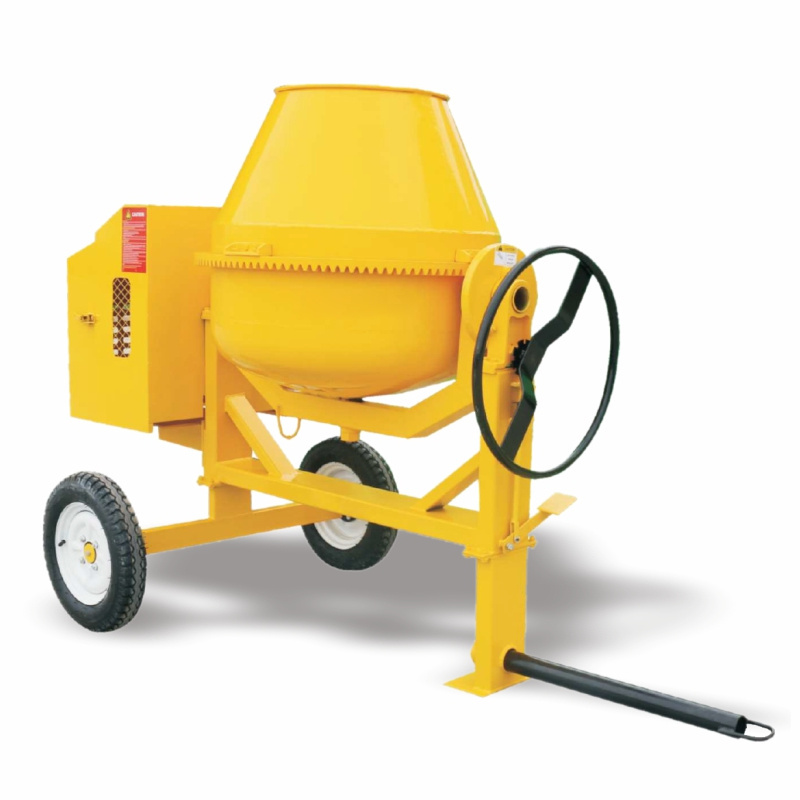

Electric Concrete Mixer Machine Home Use 1 Yard Concrete Mixer
A concrete mixer can be used for mixing plastic and semi-dry concrete.
The mixing drum rotates forward to stir and reverse to discharge, and it can produce 4 to 5 cubic meters per hour. It is suitable for construction sites, roads, bridge projects, and small and medium-sized concrete component factories without electricity.
Concrete mixers are the perfect solution for small projects around the home that require the use of cement
. These small devices can be used for a wide range of projects, including repairing driveways, pouring cement patios, and even making cement fixtures for the lawn and garden.
Products Description
|
All-steel construction, Mini Concrete Mixer has a long life span.
The powder-coat finish on the drum and frame adds durability cement mixer 260L-450L capacity well suits small to medium size projects cement mixer for big cement mixer. One-piece cast iron ring gear for longer life cement mixer for big cement mixer Equipped with 17inch large wheels cement mixer for big cement mixer A towable handle ensures easier transportation |
|
Model
|
ID400-2C
|
ID400-4C
|
|
|
Drum capacity
|
400L
|
400L
|
|
|
Mixing capacity
|
320L
|
320L
|
|
|
Productivity
|
5-6m³/h
|
5-6m³/h
|
|
|
Bags of cement per batch
|
1 Bag cement(50KG/BAG)
|
1 Bag cement(50KG/BAG)
|
|
|
Drum rotation speed
|
25-30rpm
|
25-30rpm
|
|
|
Drum thickness
|
3mm/4mm(Upper/Bottom)
|
3mm/4mm(Upper/Bottom)
|
|
|
Drum size
|
Φ850*900mm
|
Φ850*900mm
|
|
|
Tyre size and QTY
|
2x(4.00-12)
|
4x(4.00-12)
|
|
|
Overall size
|
2100x1200x1700 mm
|
2100x1200x1700 mm
|
|
|
Packing size
|
1960x960x1200 mm
|
1960x960x1200 mm
|
|
|
Container Loading Plan
|
12 Sets with Assembled in 20GP Container, 24 Sets in CKD condition in 20GP Container
26 Sets with Assembled in 40HQ Container, 54 Sets in CKD condition in 40HQ Container |
|
|
|
Power Option
|
ID400-2C weight
|
ID400-4C weight
|
|
Air-cooled Diesel Engine 178FS(6HP)
|
290 kg
|
310 kg
|
|
Air-cooled Diesel Engine 186FS(10HP)
|
310 kg
|
330 kg
|
|
Water-cooled Diesel Engine R180(8HP)
|
320 kg
|
340 kg
|
|
HONDA Gasoline Engine
|
280 kg
|
300 kg
|
|
Electric Motor (3 kW)
|
290 kg
|
310 kg
|
Product Overview
Advantage:
1. The drum mixer has a novel structure and beautiful appearance.
2. It has high production efficiency, good mixing quality, and light weight.
3. The type of gasoline/diesel drum mixer.
4. Easy to move, simple to operate, and small in size.
1. The drum mixer has a novel structure and beautiful appearance.
2. It has high production efficiency, good mixing quality, and light weight.
3. The type of gasoline/diesel drum mixer.
4. Easy to move, simple to operate, and small in size.
Product packaging
1 unit was packed into an iron frame and then packed with 5 layers of corrugated carton. 4 strips reinforced the carton. the fix package guaranteed the machines were not damaged during transportation
