- Product Details
- {{item.text}}
Quick Details
-
Production Capacity::
-
800-1000kg/h
-
Motor Type::
-
AC Motor
-
After-sales Service Provided::
-
Engineers available to service machinery overseas
-
Color::
-
Green or others
-
Materials::
-
charcoal powder, coal dust...
-
Inlet size::
-
less than 5mm
-
Moisture of material::
-
less than 25%
-
Final shape::
-
Solid or hollow
-
Appearance::
-
Square, hexagonal,round...
Quick Details
-
Warranty:
-
18 months
-
Place of Origin:
-
China
-
Name:
-
wood charcoal briquette machine
-
Production Capacity::
-
800-1000kg/h
-
Motor Type::
-
AC Motor
-
After-sales Service Provided::
-
Engineers available to service machinery overseas
-
Color::
-
Green or others
-
Materials::
-
charcoal powder, coal dust...
-
Inlet size::
-
less than 5mm
-
Moisture of material::
-
less than 25%
-
Final shape::
-
Solid or hollow
-
Appearance::
-
Square, hexagonal,round...

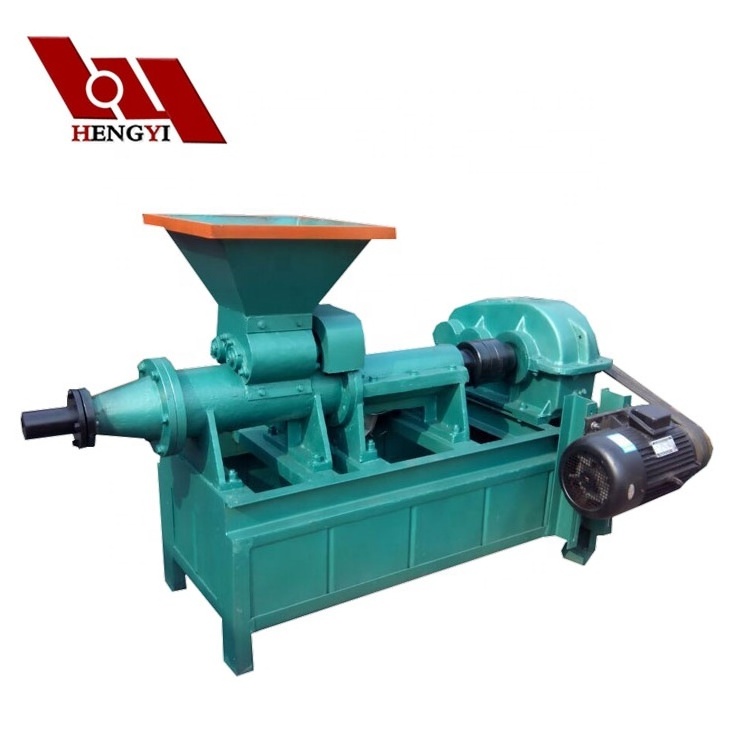

HENGYI Machinery hot sale wood charcoal briquette machine
wood charcoal briquette machine is the briquette machinery,which using the principle of screw extrusion to compress the coal powder into a predeter mined shape with a certain intensity.after the coal powder poured into machine chamber,it bears tremendous pressure.With the help of all kinds of shaped molds,it will be shaped into certain shapes.Now, our factory has developed and researched double-head and four-head coal extruder.It not only improve production capacity largely,but also give the buyers more choices.This kind machine not only can accept coal powder,but also charcoal powder coconut shell powder and so on.
Working principle of wood charcoal briquette machine
Rotating impeller from the charging port clip coal and put coal forward,coal is gradually compressed into tightly closed particles,while generating relatively large agitation and mixing.At this time between the coal particles and between the particles and the blades have a strong simplified friction and shear, while under the action of heat generation, the coal temperature rise,water and binder more uniform, coal plasticity also greatly increased, then after the constraining effect of the cone mold, compressed between the coal particles more closely, and then pressed into a flat mold parts, and molded out from coal briquette press machine.
Parameters :
|
Model |
Power |
Capacity(Ton/hr) |
reducer |
Weight(Ton) |
Packing size(M) |
|
HYQ-140 |
7.5/11 |
0.4-0.5 |
ZQ350 |
1 |
1.9*1.1*1.2 |
|
HYQ-180 |
18.5/22 |
1-1.2 |
ZQ400 |
1.6 |
2.1*15*1.2 |
|
HYQ-300 |
37 |
1.8-2.2 |
ZQ650 |
2.5 |
3.2*2.3*1.2 |
|
HYQ-450 |
45 |
3.5-4 |
ZQ850 |
5 |
3.6*2.6*1.6 |
Characteristics
(1)coal briquette press machine use hardened reducer,small size,high load carrying capacity.
(2)Thick internal impeller blade design,impeller and liner using wear-resistant cylinder body made of cast
materials, life expectancy increased 4-5 times than ordinary materials.
(3)coal briquette press machine head can be replaced by a wear-resistant alloy steel,also easy to replace.
(4)head and cylinder use splicing forms so it can be opened when the overhaul , replacement of internal
impeller and cylinder liner is very convenient.
The finished products
Shapes:The shapes can be various, such as finger shape,cubic shape, bar, hexagon,etc.
Features:High density,high hardness,stable shape,good performance,long burning time,convenient
to store and transport
coal briquette press machine make many special shapes by your requirements
Production line
Sales service of HENGYI Mechanical Plant
Pre-sales service:
We can assist you analyze your particular requirements and offer you a single machine, a
multi-stage production, or a complete production line.
After-sales service:
We can offer you related technical support and guide you to install the products,or send
our engineer to your factory for the installation. Also we provide one year warranty for all of our products.
Skill standard, Quality guarantee
(1).The technical standard consults the standard of supplier’s enterprise.
(2).Equipment must be100% brand new when leaving factory.Malfunctions which are caused by
manufacturer’s default and quality will be responsible by manufacturer. Other malfunctions which
are caused by operation mistake, man-made problem,etc will be responsible by client herself.
The transport
In the processing of transport, coal briquette press machine is packaged as follow ways
(1)Nude packaging or free fumigation plywood case for single machine.
(2)Export standard container 20GP,40GP,40HQ,etc. for production line.
(3)Other packaging according to your special requirement.
(1)What is your company business type? Trading company or factory?
We are a 30 years factory, all the machines are manufactured by ourselves, factory direct sales, so you can
get the factory outlet price,all the products quality and after-sales service can be guarantee.
(2)Could you offer complete production line?
Yes, we will allocate suitable production line, according to your special requirement,such as crusher,conveyor,
mixer, dryer, briquette machine, etc.
(
3)Where is your factory located? How I get to?
We are located in Gongyi city, Henan province, China, you can come here by air or train.The nearest airport is Zhengzhou Xinzheng International Airport,and the Airport Code is CGO.We will pick you up at airport or high speed train station.Welcome to visit our factory.
In order to offer you more accurate quotation as soon as possible, please inform
me follow information
What is your raw material?
What is your capacity demand per hour?
What is your finished products shape and size?
What is a single machine or a complete production line do you need?
Henan Hengyi Heavy Industry Equipment Co.,Ltd
