Quick Details
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
China
-
Brand Name:
-
BCAMCNC
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
3550*3150*1600mm
-
Weight (KG):
-
1200
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Engraving machine:
-
woodworking machine
-
Table hold:
-
vacuum pump
-
Driver:
-
Leadshine or YOKA
-
Working area:
-
1500*3000*200 mm
-
Max travel speed:
-
42m/min
-
Motor type:
-
stepper motor
-
Controller:
-
DSP or Nc studio
-
controlling software:
-
Coreldraw, Photoshop, AutoCAD, Tajima
-
Graphic format:
-
PLT,DXF,BMP,JPG,AI, etc
Quick Details
-
Working Table Size(mm):
-
1500×3000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 45000 rpm
-
Positioning Accuracy (mm):
-
0.03 mm
-
Travel (X Axis)(mm):
-
1500 mm
-
Travel (Y Axis)(mm):
-
3000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.03 mm
-
Place of Origin:
-
China
-
Brand Name:
-
BCAMCNC
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
3550*3150*1600mm
-
Weight (KG):
-
1200
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Engraving machine:
-
woodworking machine
-
Table hold:
-
vacuum pump
-
Driver:
-
Leadshine or YOKA
-
Working area:
-
1500*3000*200 mm
-
Max travel speed:
-
42m/min
-
Motor type:
-
stepper motor
-
Controller:
-
DSP or Nc studio
-
controlling software:
-
Coreldraw, Photoshop, AutoCAD, Tajima
-
Graphic format:
-
PLT,DXF,BMP,JPG,AI, etc

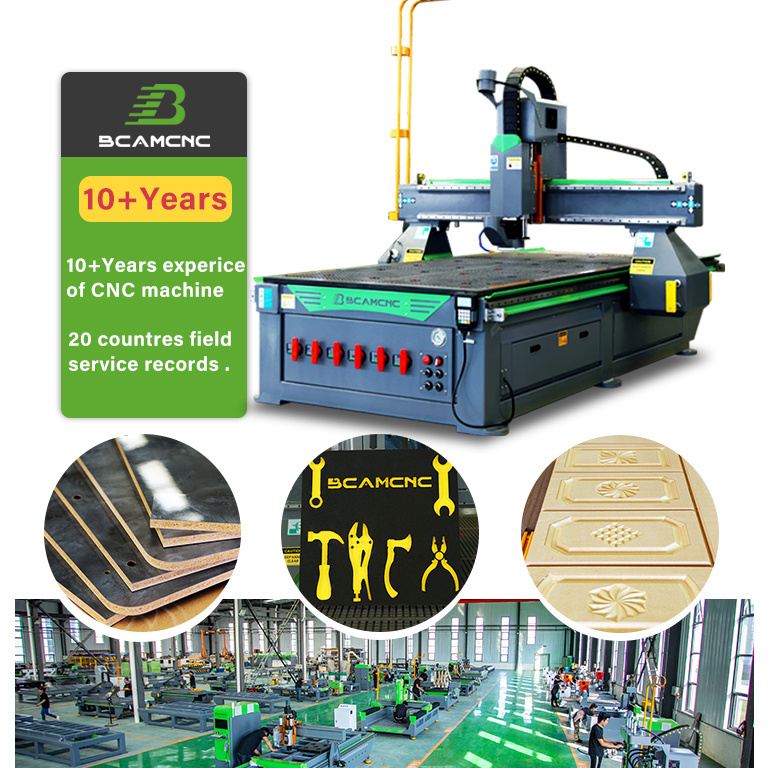

China wood cnc router machine Economic cnc cutting plotter for wood/MDF/acrylic/aluminum BCM1530
|
Parameters |
Standard Specifications BCM1530S |
|
X,Y,Z Working Area |
1300*2500*200mm|4′*8′ |
| Optional Working Area | 1300*1300*200mm|4′*4′ |
| Optional Working Area | 1500*3000*200mm|5′*10′ |
| Optional Working Area | 2000*3000*200mm|6′*10′ |
| Optional Working Area | 2000*4000*200mm|6′*13′ |
| Optional Working Area | 2000*6000*200mm|6′*20′ |
|
Spindle Power |
3.0kw water/air cooling spindle(3kw-7.5kw) |
|
X,Y,Z Traveling Positioning Accuracy |
±0.03/2000mm |
|
Table Surface |
Vacuum table+T-solt table |
|
X,Y,Z Rail and Trasmission |
X Y axis gear transmission, Z axis TaiwanTBI Ball Screw |
|
Max. Rapid Travel Rate |
40m/min |
|
Max. Working Speed |
30m/min |
|
Cutting thickness |
According materials |
|
Spindle Speed |
6000-24000RPM |
|
Drive Motors |
4 sets High Torque stepper motor and drivers |
|
Working Voltage |
AC220v0r380v/50HZ/3 phase,220v/1phase/50hz |
|
Command Language |
G Code |
|
Operating System |
Richauto A11 DSP control system |
|
Interface |
USB |
|
Software Compatibility |
Option: BCAMPRO /VCarve/VCarve Pro/UcanCAM/ArtCAM,etc. |
|
Running Environment |
Temperature: -20℃~45℃ Relative Humidity: 5%~75% |
Application
1.
Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
2.The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
3. Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
4. Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
The machine can do cutting,engraving,milling,drilling.
1. Working area: 1500*3000*200mm|
Economic machine cnc router BCM1530 machine for cutting and splitting wood
2. CE standard
3. 3.0kw water cooling spindle(Option:5.5kw,6.0kw, 7.5kw Quick-Release Spindle)
4. 8mm Heavy duty frame
5. Active safety system
6. X ,Y axis gear transmission, Z axis Taiwan TBI ball screw transmission
7. Taiwan Hiwin 25 rails
8. Vacuum table+T-solt / Double vacuum table
9. Schneider Electronic spare parts
10. Automatic lubrication system
11. Rich auto A11 control system
12. Japan Omron limit switch
13. High torque stepper motor and drivers
14. Delta Inverter 3.7kw
15. 3.0kw double dust collector +Dust collector pipe+Dust collector support
16. Tool height sensorL
17. Industrial water Chiller CW3000
18. Standard box of tools
Optional Cutting engraving BCAM1325AS CNC router woodworking machine for furniture acrylic
| Vacuum pump | Oil free pump 5.5Kw |
| Air pump 5.5Kw | |
| CAM Software | VCarve / VCarve Pro/ ArtCAM / UcanCAM, etc. |
1. This is the first time I use this kind of machine, is it easy to operate?
1) English guide video and instruction book are sent to you free together with the CNC router.
2) Free training course in our factory. Engineers are available to serve overseas.
3) 24 hours technical support by calling, video and email.
2. Do you have a setup and equipment commissioning service?
Yes, we have.
The machine was installed and debugged before delivery. You can use themachine directly after receiving it. Of course, we also could let our technologists go to your country to install and debug the machine.
3 .How to choose a suitable machine?
You can tell us the working piece material, size, and the request of machine function. We can recommend the most suitable machine according to our experience. Or we can customize one for you.
4. What is the warranty period for the equipment?
Three years warranty and machine whole life 24 hours online professional technical support.
5 .Payment terms,There are 3 ways to pay money.
1) T/T, means international bank transfer. 30% deposit, we produce the machine for you after received your deposit . 70% before shipping the machine . It is convenient and fast for your money .
2) Alibaba Secure payment. Reliable and safe, Alibaba will charge a little handling fee.
3) L/C at sight.
