Quick Details
-
Function:
-
NIGHT VISION, WDR, Remote Control, G-Sensor, Loop recording, Build-in WiFi, APP Control, Voice Interaction, Build-in GPS, Build-in GSM, Emergency Accident Lock, Build-in Battery, SDK, 5G Sim Card
-
Voltage:
-
8-36V
-
Working Temperature Range:
-
-20 - 70 ℃
-
Warranty:
-
18 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Citops
-
Model Number:
-
M52HV.DGNE1
-
Product name:
-
8 Channels 1080P MDVR
-
Video input:
-
8ch AHD video input
-
Video resolution:
-
1080P/720P/D1 Optional
-
Network:
-
CMS Platform Via 4G
-
Storage:
-
2T+512GB Max (not Included)
-
Language:
-
English
-
Video format:
-
H.264/H.265
-
Chipset:
-
Novatek 98323
-
Features:
-
4G/Wifi/GPS/G-sensor Optional
-
Application:
-
Vehicle Fleet Management
Quick Details
-
Car Fitment:
-
Universal
-
Angle:
-
150°
-
Resolution:
-
1080P 720P D1 Optional
-
Function:
-
NIGHT VISION, WDR, Remote Control, G-Sensor, Loop recording, Build-in WiFi, APP Control, Voice Interaction, Build-in GPS, Build-in GSM, Emergency Accident Lock, Build-in Battery, SDK, 5G Sim Card
-
Voltage:
-
8-36V
-
Working Temperature Range:
-
-20 - 70 ℃
-
Warranty:
-
18 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Citops
-
Model Number:
-
M52HV.DGNE1
-
Product name:
-
8 Channels 1080P MDVR
-
Video input:
-
8ch AHD video input
-
Video resolution:
-
1080P/720P/D1 Optional
-
Network:
-
CMS Platform Via 4G
-
Storage:
-
2T+512GB Max (not Included)
-
Language:
-
English
-
Video format:
-
H.264/H.265
-
Chipset:
-
Novatek 98323
-
Features:
-
4G/Wifi/GPS/G-sensor Optional
-
Application:
-
Vehicle Fleet Management
Products Description
Smart 8ch 3g 4g Car Wifi Dvr Data Download Hdd Car Recorder Mobile Mdvr People Counter HD 1080p Mobile Cctv Dvr for Bus Truck
Product features
*
The interface can operate reliably and stably in complex environments
* Video encoding H.265, H.264 is optional
* Support 4G WIFI and GPS functional modules
* Supports a 2.5-inch optional SSD/HDD hard disk
* Supports one SD card
* Rich peripheral interfaces
* Support external UPS battery life
* High scalability
* Video encoding H.265, H.264 is optional
* Support 4G WIFI and GPS functional modules
* Supports a 2.5-inch optional SSD/HDD hard disk
* Supports one SD card
* Rich peripheral interfaces
* Support external UPS battery life
* High scalability
The product supports 4G+GPS, it is recommended to contact the customer for more information before placing an order.
Contact us!

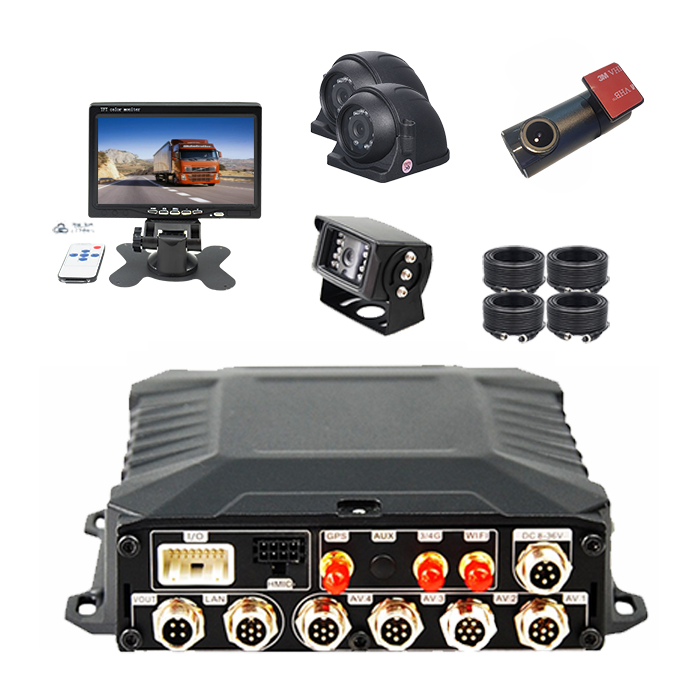

Details Images
|
Item
|
|
parameters
|
|
|
Audio and Video Inputs
|
video input
|
8ch AHD audio input
|
|
|
|
audio input
|
4ch audio input
|
|
|
Audio and Video outputs
|
video output
|
Default 1-way CVBS output (VGA output optional)
|
|
|
|
speech output
|
1ch audio output
|
|
|
Audio and video parameter coding
|
video coding
|
H.264 Main Profile/H.265
|
|
|
|
Resolution
|
1080P/720P/D1 optional
|
|
|
|
audio coding
|
Default G.726,G.711A optional
|
|
|
storage space
|
HDD
|
1 2.5-inch optional: SSD/HDD hard disk
|
|
|
|
SD
|
Support 1 SD card
|
|
|
wireless network
|
4G
|
Supports 1 SIM card, optional: all major communication modules in the world
|
|
|
|
WIFI
|
2.4/5.8G optional
|
|
|
locate mode
|
BD/GPS
|
Support for mixed positioning, speed detection, time synchronization
|
|
|
interface
|
USB
|
USB2.0 interface, support export data, external engineering treasure
|
|
|
|
serial port
|
Support 2 RS232, 1 RS485,
can be connected with external sensor
|
|
|
|
I/O
|
4 level inputs, 2 analog inputs, 2 alarm outputs
|
|
|
|
network interface
|
Support external IPC, support
hybrid NVR function
|
|
|
|
Intercom
|
1 special intercom handheld mark interface
|
|
|
Physical Specifications
|
size
|
176.9mm（L）*186.8mm（W）*54mm（H）
|
|
|
|
weight
|
NW：1.4kg
GW：2kg（M52Hv-DGNE1-L as a standard） |
|
|
work environment
|
operating temperature
|
-20〜+70℃
|
|
|
|
operating humidity
|
8%〜90%（No condensation）
|
|
|
Other
|
operator schema
|
remote control、APP、WEB
|
|
|
|
· Gravity sensor
|
Built-in G-Sensor
|
|
