Quick Details
-
Filling Accuracy:
-
±1%
-
Voltage:
-
AC 220/50-60 110/50-60
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANYING
-
Dimension(L*W*H):
-
97*55*40(L*W*H)(mm)
-
Weight:
-
72.5 KG
-
Gas Pressure:
-
0.4-0.6Mpa
-
Filling Range:
-
50-500ml
-
Filling Accuray:
-
Max.1%
-
Capacity:
-
15-20 Bottles/min
-
Machine name:
-
Honey Piston Filling Machine
-
Suitable for:
-
liquid/honey/cream/paste
-
Material:
-
SS
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Marketing Type:
-
Ordinary Product
Quick Details
-
Machinery Capacity:
-
4000BPH
-
Packaging Material:
-
Glass, bottle
-
Filling Material:
-
Beer, Milk, Water, Oil, Juice
-
Filling Accuracy:
-
±1%
-
Voltage:
-
AC 220/50-60 110/50-60
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANYING
-
Dimension(L*W*H):
-
97*55*40(L*W*H)(mm)
-
Weight:
-
72.5 KG
-
Gas Pressure:
-
0.4-0.6Mpa
-
Filling Range:
-
50-500ml
-
Filling Accuray:
-
Max.1%
-
Capacity:
-
15-20 Bottles/min
-
Machine name:
-
Honey Piston Filling Machine
-
Suitable for:
-
liquid/honey/cream/paste
-
Material:
-
SS
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Online support
-
Marketing Type:
-
Ordinary Product

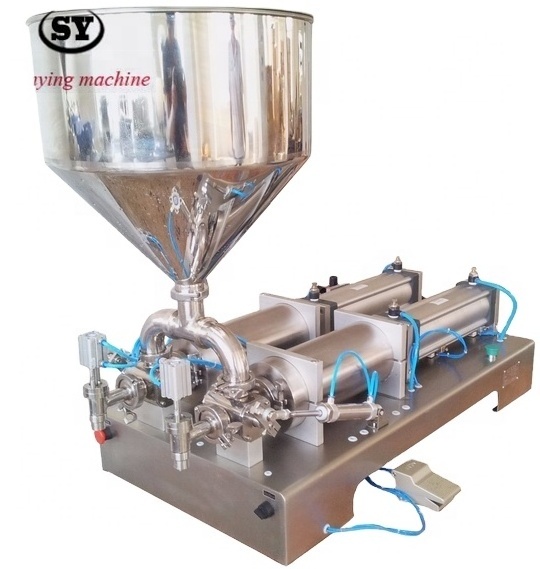

SY G2WG-500 Double nozzle cosmetic cream sauce honey paste piston filling machine
Product Application
The paste filling machine has introduced piston measuring mode and compressed air as the power.
The paste filling machine can work at an explosive or combustible place by stepping on the pedal.
The filling range can be adjusted lightly.
The piston of paste filling machine was made of PTFE material, abrasion resistant, anti-corrosion.
This paste filling machine is used in the chemical industry, food, cosmetic, medicine, pesticide, the lubricating oil and so on. It can fill the bags or bottles quantitatively.
Single or double nozzle can be provided. As with the cylinder device, this paste filling machine has to work together with the air compressor.
|
Model
|
G1WY
|
G2WY
|
G1WG
|
G2WG
|
|||
|
Voltage(V/Hz)
|
AC 220V/110V 50/60HZ
|
|
|
|
|||
|
Power
|
20W
|
50W
|
20W
|
50W
|
|||
|
Air perssure
|
0.4-0.6Mpa
|
|
|
|
|||
|
Filling speed
|
5-25pcs/min
|
10-50pcs/min
|
5-25pcs/min
|
10-50pcs/min
|
|||
|
Filling accuracy
|
0.4-0.6Mpa
|
|
|
|
|||
|
Optional models
|
5-100ml 10-300ml
|
|
|
|
|||
|
Packaging
|
|
|
|
Size
|
1200(L)*610 (W)*1240 (D)
|
|
|
Weight
|
90kg
|
|
|
Packaging Details
|
PORT:NINGBO
SHANGHAI
GUANGZHOU
|
|
