Quick Details
-
Type:
-
China Battery Industry Access Enterprise
-
Item:
-
sealed lead acid 12v 300ah agm battery with made in china
-
Products Series:
-
agm battery
-
Voltage:
-
12v
-
Product design life:
-
12 years(20°C)
-
Application:
-
UPS/EPS/solar panel etc.
-
Size:
-
485*170*240*240mm(L*W*H*TH)
-
Battery Color:
-
black or greyish white
-
Material:
-
ABS
-
OEM/ODM Service:
-
Available
-
Usage:
-
solar,wind,upe,etc.
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Sealed Type:
-
Sealed
-
Maintenance Type:
-
Free
-
Type:
-
China Battery Industry Access Enterprise
-
Item:
-
sealed lead acid 12v 300ah agm battery with made in china
-
Products Series:
-
agm battery
-
Voltage:
-
12v
-
Product design life:
-
12 years(20°C)
-
Application:
-
UPS/EPS/solar panel etc.
-
Size:
-
485*170*240*240mm(L*W*H*TH)
-
Battery Color:
-
black or greyish white
-
Material:
-
ABS
-
OEM/ODM Service:
-
Available
-
Usage:
-
solar,wind,upe,etc.

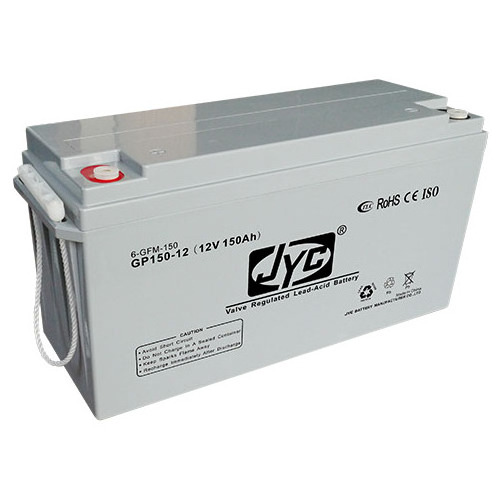

Sealed Lead Acid 12v 300Ah Agm Battery with Made in China
|
Nominal Voltage |
12V |
|
|
Nominal Capacity(10HR) |
150AH |
|
|
Dimension |
Length |
485±3mm (19.09 inches) |
|
Width |
170±2mm (6.69 inches) |
|
|
Container Height |
240±2mm (9.45 inches) |
|
|
Total Height (with Terminal) |
240±2mm (9.45 inches) |
|
|
Approx Weight |
Approx 41.3 kg (91.05 lbs) |
|
|
Terminal |
T11 |
|
|
Container Material |
ABS |
|
|
Rated Capacity |
20hr ,1.80V/cell,25℃/77℉ |
156.0 AH/7.80A |
|
10hr,1.80V/cell,25℃/77℉ |
150.0 AH/15.0A |
|
|
5hr,1.75V/cell,25℃/77℉ |
129.0 AH/25.8A |
|
|
3hr,1.75V/cell,25℃/77℉ |
117.0 AH/39.0A |
|
|
1hr,1.60V/cell,25℃/77℉ |
91.5 AH/91.5A |
|
The Battery Characteristic Curve , Please Refer To:
.
| For more information, Please contact us now |
| You will get the best design solution for FREE !!! |
| ( Just click here , or click on the customer service on the right side) |
The OBM / OEM / ODM Service with regard to Sealed Lead Acid 12v 300Ah Agm Battery with Made in China
JYC Power Specialist will estimate your power needs, identify potential problem
areas and recommend a cost-effective solution. What you'll get:
1. The global optimum acquisition price for any required hardware
2. Installation considerations
3. Ongoing support options
