Quick Details
-
Power:
-
12kw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Orient Ant
-
Maximum Digging Height:
-
2640 mm
-
Maximum Digging Depth:
-
1640 mm
-
Machine Weight:
-
900 kg
-
Max Digging Radius:
-
2890 mm
-
Rated Speed:
-
0-4 km/h
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-

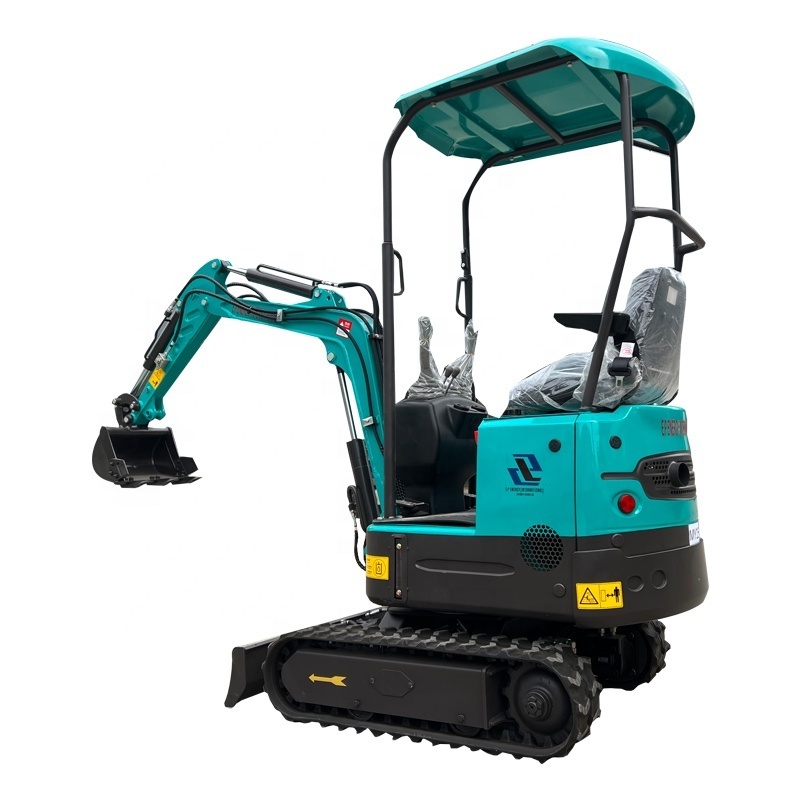

1 Ton Mini Excavator
-
Keywords:
-
China Micro Digger Crawler Excavator
-
Certification:
-
CE ISO EPA
-
Feature:
-
Earth-moving Machinery Mini Excavator
-
Accessories:
-
Break Hammer
-
Overall dimension( LxWxH):
-
2210x930x2220 mm
-
Track Length:
-
1215 mm
-
Track Height:
-
320 mm
-
Max. Dumping Height:
-
2000 mm
-
Application:
-
Home Garden Digging, Civil Work, Road Repairing, Planting, etc
Quick Details
-
Operating Weight:
-
3ton, 1ton, 2ton, 0.8 TON, 1.8Ton, 1.2ton, 1.5TON
-
Bucket capacity:
-
0.025-0.65m3
-
Engine Brand:
-
Koop/Changchai
-
Power:
-
12kw
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Orient Ant
-
Maximum Digging Height:
-
2640 mm
-
Maximum Digging Depth:
-
1640 mm
-
Machine Weight:
-
900 kg
-
Max Digging Radius:
-
2890 mm
-
Rated Speed:
-
0-4 km/h
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
1 Ton Mini Excavator
-
Keywords:
-
China Micro Digger Crawler Excavator
-
Certification:
-
CE ISO EPA
-
Feature:
-
Earth-moving Machinery Mini Excavator
-
Accessories:
-
Break Hammer
-
Overall dimension( LxWxH):
-
2210x930x2220 mm
-
Track Length:
-
1215 mm
-
Track Height:
-
320 mm
-
Max. Dumping Height:
-
2000 mm
-
Application:
-
Home Garden Digging, Civil Work, Road Repairing, Planting, etc
Product Description
A mini excavator's ability to move into difficult areas of sites makes it the ideal machine for digging holes in, particularly
tough-to-reach spots. Using a mini excavator on smaller sites to dig holes can speed up projects, freeing up time to finish other important tasks. The compact nature of mini excavators compared to larger machines makes them much easier to work with on crowded sites.
tough-to-reach spots. Using a mini excavator on smaller sites to dig holes can speed up projects, freeing up time to finish other important tasks. The compact nature of mini excavators compared to larger machines makes them much easier to work with on crowded sites.
Product Paramenters
|
Specifications of Performance
|
|
|
|
Operation Weight
|
900KG
|
|
|
Power
|
12HP
|
|
|
Bucket Digging Force
|
10.3KN
|
|
|
Engine Type
|
KOOP 192F
|
|
|
Working Device
|
Backhoe
|
|
|
Bucket Capacity
|
0.025M3
|
|
|
Main Dimension
|
|
|
|
Track Distance
|
2550MM
|
|
|
Track Height
|
320MM
|
|
|
Track Width
|
180MM
|
|
|
Track Length
|
1235MM
|
|
|
Chassis Width
|
930MM
|
|
|
Min. Ground Clearance
|
380MM
|
|
|
Operating Range
|
|
|
|
Max. Digging Depth
|
1600MM
|
|
|
Max. Digging Height
|
2490MM
|
|
|
Max. Digging Distance
|
2400MM
|
|
|
Max. Dumping Height
|
1750MM
|
|
|
Min. Swing Radius
|
1190MM
|
|
|
Travel Motor
|
Eaton
|
|
Multi-function Application
