Quick Details
-
Model Number:
-
EV215-31000001-24
-
Name:
-
Stainless Steel Cable Cleats-Single Type
-
Specification:
-
Trefoil
-
Certification:
-
ISO9001
-
Product name:
-
Cable Clamps/Cable Cleats
-
Color:
-
Black White Colorful
-
Application:
-
Electric Equipment
-
Usage:
-
Cable Holder Cable Organizer
-
Function:
-
Cable Organizer.Cable Management
-
Feature:
-
Easy Installation
Quick Details
-
Material:
-
316 Stainless Steel
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Evan
-
Model Number:
-
EV215-31000001-24
-
Name:
-
Stainless Steel Cable Cleats-Single Type
-
Specification:
-
Trefoil
-
Certification:
-
ISO9001
-
Product name:
-
Cable Clamps/Cable Cleats
-
Color:
-
Black White Colorful
-
Application:
-
Electric Equipment
-
Usage:
-
Cable Holder Cable Organizer
-
Function:
-
Cable Organizer.Cable Management
-
Feature:
-
Easy Installation
Products Description
|
Name
|

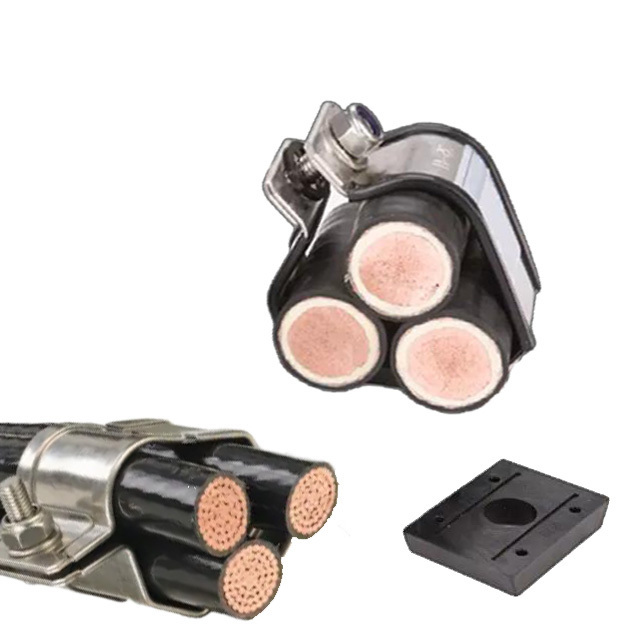

Stainless Steel Cable Cleats-Trefoil Type
|
|
Material
|
316 Stainless Steel
|
|
Specification
|
Trefoil
|
Electrical and Mechanical Characteristics：
Frame： 54mm*2.0mm, marine grade, Non-magnetic 316L
Closure Hardware： 316SS M8 or M10 bolt and Nylon Lock Nut
Integral Pad ：Low Smoke, Low Fume, Halogen Free
Tools Required ：Wrench
Mounting Bolt ：Provided with the Cable Cleat
Resistance to Electromechanical Force ：230kA Peak 300mm Spacing;180kA Peak 600mm Spacing;10OkA Peak 1200mm Spacing
Late ral Load Test ：Average 25kg
Axial Load Test ：Pass
Max and Min Temperature ：-40°C~120°C
Resistance to Impact ：Very Heavy
Needle Flame Test ：30 Seconds
Resistant to UV light Test ：1000 hours
Applications : Oil and gas, shipbuilding, petrochemical, railway and underground, etc.
Cable Cleats are approved by DNV(Det Norske Verltas) and ABS(Amerlcan Bureau of Shipping)
Cable Cleats are designed to support and retain the cables and conductors within the cable tray system, reducing the mechanical load exerted to them in every conditions. Most importantly, they prevent the damage In short circuit condition. Unfortunately,short circuit always happens, and when it does, it is destructive and dangerous to the cables and cable system. Cable Cleats areone of the first lines of defense to help protect the personnel, the cables and the cable system. They are designed for use with inindustrial and hazardous areas, as well as specialist applications such as oil and gas, shipbuilding, petrochemical, railway and underground, etc.
Cable Cleats are designed to support and retain the cables and conductors within the cable tray system, reducing the mechanical load exerted to them in every conditions. Most importantly, they prevent the damage In short circuit condition. Unfortunately,short circuit always happens, and when it does, it is destructive and dangerous to the cables and cable system. Cable Cleats areone of the first lines of defense to help protect the personnel, the cables and the cable system. They are designed for use with inindustrial and hazardous areas, as well as specialist applications such as oil and gas, shipbuilding, petrochemical, railway and underground, etc.
