Quick Details
-
Brand Name:
-
TOP
-
Model Number:
-
TOP-B1910
-
Product name:
-
Dual Channel Syringe Pump with drug library
-
Application:
-
Hospital/Clinic
-
Certificate:
-
CE ISO RoHS
-
Display:
-
HD LCD
-
Internal Battery:
-
DC12V car charge
-
Function:
-
Purge and Bolus
-
Net Weight:
-
3.6KG
-
Relative humidity:
-
≤95%
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
TOP
-
Model Number:
-
TOP-B1910
-
Product name:
-
Dual Channel Syringe Pump with drug library
-
Application:
-
Hospital/Clinic
-
Certificate:
-
CE ISO RoHS
-
Display:
-
HD LCD
-
Internal Battery:
-
DC12V car charge
-
Function:
-
Purge and Bolus
-
Net Weight:
-
3.6KG
-
Relative humidity:
-
≤95%

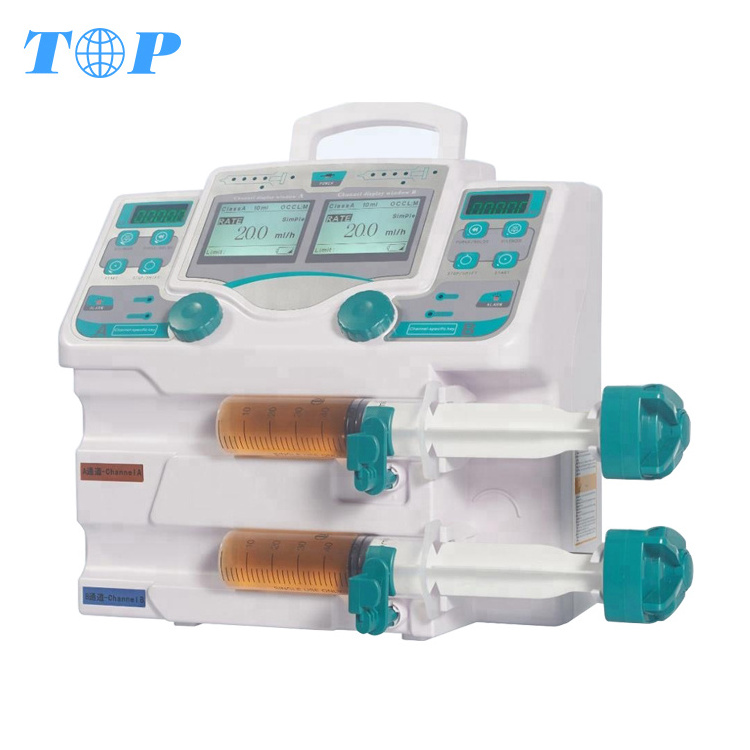

TOP-B1910
Dual Channel Syringe Pump (with drug library)
Features
1. HD LCD Display, high capacity words, friendly user interface, dynamically display working status;
2. Visual alarm for occlusion, empty, near empty, low battery, end of infusion, syringe loose, wrong setting, etc.;
3.The syringe pump can be operated separately and compatible with 5ml, 10ml, 20ml, 30ml, 50/60ml syringe of any brands;
4. Preset solution volume to greatly reduce the workload of nurses;
5. Three working modes: Rate Amode, Time Volume mode, Dosage Weight mode;
6. Three levels of occlusion: high, medium and low;
7. Purge and Bolus function;
8. KVO (keep-vein-open) automatically opens as injection is completed, KVO rate is 1ml/h;
9. Power Source: AC100---240V, 50/60Hz; Internal Battery, DC12V car charge;
10. One-key operation makes setup easy and simple;
11. Syringe plunger grabble detector, operable with one hand in a No-Germ Environment;
12. Automatically record the settings of last injection;
13.BYZ-810TU is with unique audible alarm and can have 2000pcs of injection records and it has a drug library;
14. OEM is available.
Specification
| Rate | 50/60ml Syringe: 0.1ml/h ~ 999.9ml/h (0.1ml/h step) |
| 1,000ml/h ~ 1,500ml/h (1ml/h step) | |
| 30ml Syringe: 0.1ml/h ~ 900.0ml/h (0.1ml/h step) | |
| 20ml Syringe: 0.1ml/h ~ 600.0ml/h (0.1ml/h step) | |
| 10ml Syringe: 0.1ml/h ~ 300.0ml/h (0.1ml/h step) | |
| Flow Rate Accuracy | Within ±3% (after correct calibration) |
| Mechanical precision | Within ±2% |
| Bolus Rate | 50/60ml Syringe: 1,200ml/h |
| 30 ml Syringe: 720ml/h | |
| 20 ml Syringe: 480ml/h | |
| 10ml Syringe: 300ml/h | |
| Purge Rate | 50/60ml Syringe: 1,500ml/h |
| 30ml Syringe: 900ml/h | |
| 20ml Syringe: 600ml/h | |
| 10ml Syringe: 300ml/h | |
| Volume Limit | 0.1ml ~ 9999.9ml(0.1ml step) |
| Total Injection Volume | 0.1ml ~ 9999.9ml(0.1ml step) |
| Occlusion of Dual Channel Syringe Pump | High: 800mmHg ±200mmHg (106.7kPa±26.7kPa |
| Medium:50/600mmHg±100mmHg (66.7kPa±13.3kPa Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa ) | |
| Alarms |
Injection soon finish, end of injection,occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose etc. |
| Power Source |
AC 100V ~ 240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup |
| KVO rate | 1ml/h |
| Fuse | F1AL/250/60V, 2pcs inside |
| Power Consumption | 30VA |
| IP Classification | IPX4 |
| Equipment Classification | Class II, internal power supply, Type CF |
| Operating Condition | Ambient temperature: +5℃~ +40℃ |
| Relative humidity | 20 ~ 90% |
| Transport & Storage Condition | Ambient temperature:-30℃~ +55℃ |
| Relative humidity | ≤95% |
Dimension :280mm (L) ×210mm(W) ×130mm(H)
Weight :3.6kg (net weight)
TOP Medical Equipment is your best choice of equipment for hospitals and clinics. After-sale service is guaranteed by long-term warranties. Superior distribution network, and excellent technical support.
