Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEVOFAST
-
Model Number:
-
JK34-S598
-
Product name:
-

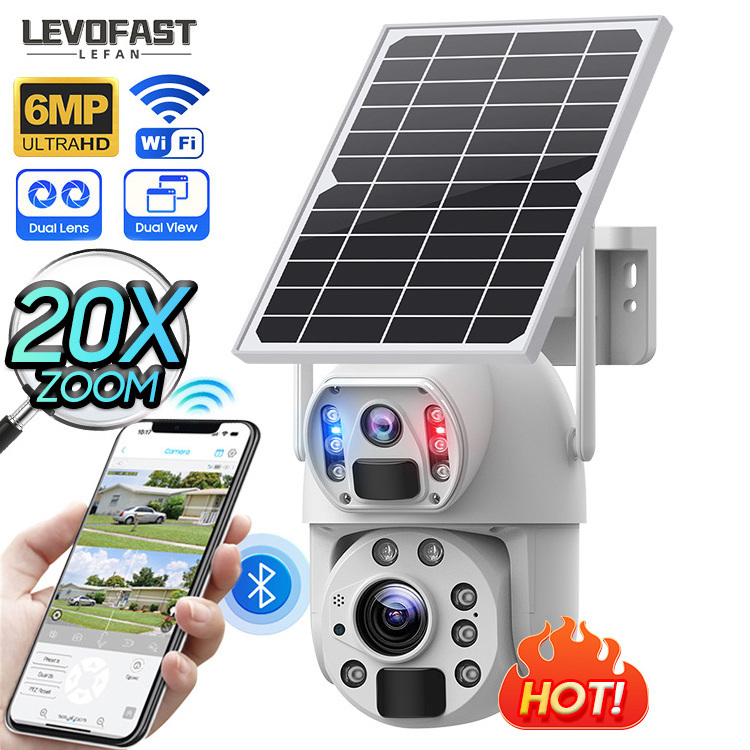

20X Zoom Optical Dual Lens camera
-
Resolution:
-
6MP
-
APP:
-
UBOX
-
Night vision distance:
-
Effective lighting distance of about 10m
-
Solar panel power:
-
6W
-
power supply mode:
-
solar panel +12000mAh battery
-
Detection distance:
-
0~12M
-
Wake up/sleep time:
-
15S/30S/60S/no sleep
-
Grade of waterproof:
-
IP66 Waterproof
Quick Details
-
Special Features:
-
Human Motion Tracking, NIGHT VISION, Motion Detection, Temperature Measurement, Sound Detection, Waterproof / Weatherproof, Built-in Siren, People Counting, PAN-TILT, Two-way Audio, Low Power
-
Function:
-
Two-way Audio, PAN-TILT, Alarm I/O, RESET, Built-in Mic, NIGHT VISION, Waterproof / Weatherproof, Wide Angle, Built-in Siren
-
Customized support:
-
Customized logo, OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LEVOFAST
-
Model Number:
-
JK34-S598
-
Product name:
-
20X Zoom Optical Dual Lens camera
-
Resolution:
-
6MP
-
APP:
-
UBOX
-
Night vision distance:
-
Effective lighting distance of about 10m
-
Solar panel power:
-
6W
-
power supply mode:
-
solar panel +12000mAh battery
-
Detection distance:
-
0~12M
-
Wake up/sleep time:
-
15S/30S/60S/no sleep
-
Grade of waterproof:
-
IP66 Waterproof
Details Images
Product Description
|
model number
|
JK34-S598
|
|
|
|
The main parameters
|
chip
|
T40N
|
|
|
|
sensor
|
2pcs 1/2.9″ Image cmos Sensor
|
|
|
|
video encoding
|
H264/H265
|
|
|
|
Video resolution
|
2304×（1296+1296）/15fps； 640×360/15fps
|
|
|
|
audio encoding
|
AAC and G.726
|
|
|
|
operating system
|
Linux
|
|
|
Networking method (optional)
|
4G LTE
|
Choose different frequency band 4G modules according to the region
|
|
|
|
WIFI
|
2.4GHz
|
|
|
4G SIM cards
|
Nano SIM ，Supports most countries in Europe, the United States, Africa, the Middle East, Southeast Asia, and Oceania
|
|
|
|
Alarm mode
|
Detection method
|
Human body infrared PIR detection in low power mode
|
|
|
|
Detection distance
|
Dual-channel PIR detection, 5-12M (theoretical value 12M)
|
|
|
|
Detection angle
|
120°
|
|
|
|
Alarm mode
|
Push alarm information or alarm video to your mobile phone
|
|
|
night vision
|
illumination
|
0.001LUX
|
|
|
|
Night vision mode
|
Infrared night vision + white light full-color night vision mode (optional)
|
|
|
|
Mode control
|
Select to switch to night vision mode in the APP preview interface
|
|
|
|
LED lights
|
10 pcs dual-core lights + 2 pcs laser lights；Effective IR distance up to 50m
|
|
|
lens
|
bullet camera lens
|
2.8mm
|
|
|
|
ptz camera lens
|
4.9-47.04mm （20X optical zoom）
|
|
|
voice
|
speaker
|
Built-in high-volume waterproof speaker
|
|
|
|
microphone
|
Built-in HD waterproof microphone
|
|
|
ptz
|
ptz angle
|
ptz camera: 350° in the horizontal direction and 90° in the vertical direction; bullet camera: can be manually adjusted, 350° in
the horizontal direction |
|
|
Recording mode
|
cloud storage
|
Support (note: you need to pay for value-added services)
|
|
|
|
local storage
|
TF card recording (support max 128GB), the recording time can be freely selected from 5s-10s-20s-30s or full-time recording
|
|
|
|
Video playback
|
Event list playback and cloud storage playback
|
|
|
Wake/sleep time
|
Sleep immediately/15S sleep/30S sleep/60S sleep/no sleep, 5 modes available
|
|
|
|
Distribution network
|
(1) Bluetooth configuration (2) QR code scanning (3) Sonic configuration (WIFI), all 3 modes can be configured
|
|
|
|
APP
|
UBOX
|
|
|
|
power
|
Power supply mode
|
Battery powered, solar light charges the battery
|
|
|
|
USB chaeging
|
type-ccharging input 5V 2A
|
|
|
|
battery capacity
|
12000mAh
|
|
|
|
Solar power
|
6W
|
|
|
others
|
working environment
|
indoor/outdoor
|
|
|
|
working temperature
|
-30°~60°
|
|
|
|
Working humidity
|
≤80%RH
|
|
|
|
Engineering installation
|
The camera and solar panel are installed separately, equipped with a 5-meter special extension cord, and the solar panel can be
installed at a long distance (optional) |
|
|
|
explanation
|
The camera cannot be connected to back-end devices such as NVR and PC.
|
|
|
specs
|
size
|
25*20*17cm
|
|
|
|
weight
|
2.34KG
|
|
|
voice
|
speaker
|
Built-in high-volume waterproof speaker
|
|
|
|
microphone
|
Built-in HD waterproof microphone
|
|
|
ptz
|
ptz angle
|
ptz camera: 350° in the horizontal direction and 90° in the vertical direction; bullet camera: can be manually adjusted, 350° in
the horizontal direction |
|
|
Recording mode
|
cloud storage
|
Support (note: you need to pay for value-added services)
|
|
|
|
local storage
|
TF card recording (support max 128GB), the recording time can be freely selected from 5s-10s-20s-30s or full-time recording
|
|
|
|
Video playback
|
Event list playback and cloud storage playback
|
|
|
Wake/sleep time
|
Sleep immediately/15S sleep/30S sleep/60S sleep/no sleep, 5 modes available
|
|
|
|
Distribution network
|
(1) Bluetooth configuration (2) QR code scanning (3) Sonic configuration (WIFI), all 3 modes can be configured
|
|
|
|
APP
|
UBOX
|
|
|
|
power
|
Power supply mode
|
Battery powered, solar light charges the battery
|
|
|
|
USB chaeging
|
type-ccharging input 5V 2A
|
|
|
|
battery capacity
|
12000mAh
|
|
|
|
Solar power
|
6W
|
|
|
others
|
working environment
|
indoor/outdoor
|
|
|
|
working temperature
|
-30°~60°
|
|
|
|
Working humidity
|
≤80%RH
|
|
|
|
Engineering installation
|
The camera and solar panel are installed separately, equipped with a 5-meter special extension cord, and the solar panel can be
installed at a long distance (optional) |
|
|
|
explanation
|
The camera cannot be connected to back-end devices such as NVR and PC.
|
|
|
specs
|
size
|
25*20*17cm
|
|
|
|
weight
|
2.34KG
|
|
