Quick Details
-
Sample:
-
Accept Trial
-
Feature:
-
Strong Adhesion
-
Product name:
-

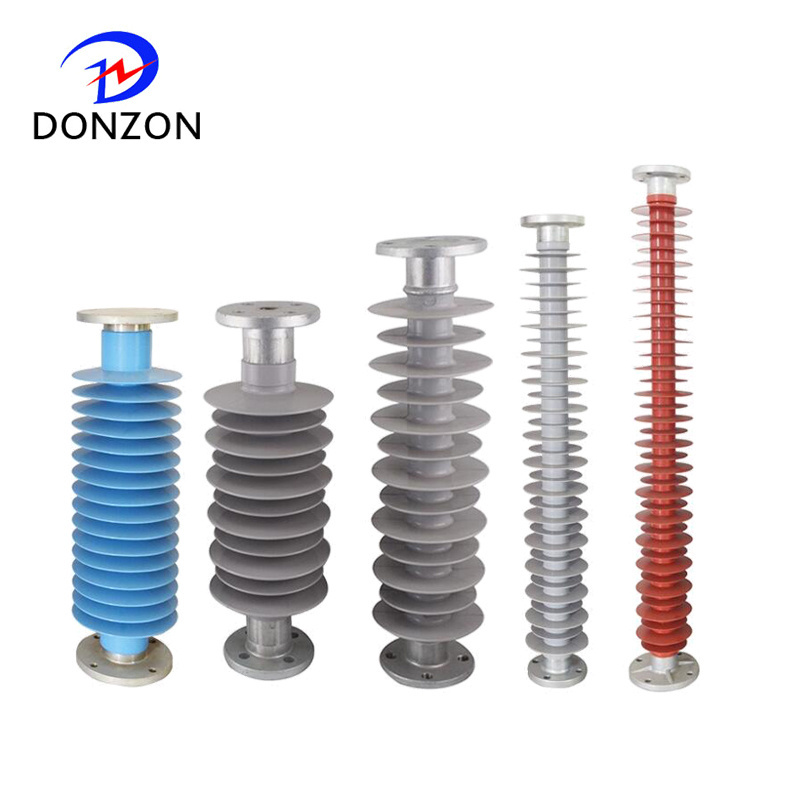

35kv 6KN polymer pin insulators for medium voltage
-
Feature::
-
good hydrophobicity,ageing resistance
-
key words:
-
pin insulators for medium voltage
Quick Details
-
Place of Origin:
-
Hebei, China
-
Color:
-
Grey
-
Usage:
-
Insulation Protection
-
Sample:
-
Accept Trial
-
Feature:
-
Strong Adhesion
-
Product name:
-
35kv 6KN polymer pin insulators for medium voltage
-
Feature::
-
good hydrophobicity,ageing resistance
-
key words:
-
pin insulators for medium voltage
Product Description
|
Type |
No. O f Sheds |
“ X ” Length inches (mm) |
Diameter Inches (mm) |
Leakage Distance Inches (mm) |
Dry Arc Distance inches (mm) |
Lighting withstand voltage |
Wet power frequency voltage |
SML Specified Mechanical Load(KN) |
|
|
D |
d
|
||||||||
|
FPQ-10/5.0 |
3 |
285 |
123 |
93 |
450 |
208 |
110 |
40 |
5.0 |
|
FPQ-24/10.0 |
5 |
320 |
168 |
/ |
800 |
206 |
170 |
70 |
10.0 |
|
FPQ-24/12.5 |
5 |
252 |
165 |
135 |
650 |
165 |
170 |
65 |
12.5 |
|
FPQ-36/12.0 |
14 |
480 |
130 |
115 |
1200 |
356 |
230 |
90 |
12.0 |
|
FPQ-36/10.0 |
11 |
507 |
132 |
122 |
1100 |
356 |
230 |
90 |
10.0 |
1. Shed connected with core by integral foring
2. The thinkness of housing > 3mm,unifirm to IEC Standard
3. Acid resistant,hight temperature resistant of epoxy fiberglass core
4. Metal end fittings,core and sheds connected by new crimping process
5. Hot galvanization and technology of rareearth aluminum coating to avoid coating
shedding prolonging the service life
Product characteristics
1.No flaw,crack in the surface and interior ,each bar color uniform(green or light yellow).
2.Can withstand the sawing,milling,planning,drilling,lathe and other mechanical processing.
3.Internal thread can be tapping with screw tap,external thread can be polished,but not allowed
to bear overload.
4.It has good damping,creep resistance,fatigue resistance,fracture resistance ,high temperature
resistance,stress corrosion resistance etc.
1)Small volume,light weight,sheds have good elasticity,not broken,con venient transportation
and installation, economy.
(2 )High antifouling property,good aging resistance performance,high anti pollution flashover
voltage
(3)Easy installation,greatly reduce mainternance charges and manual labor intensity.
(4)Simple production process,short delivery time.
Application
