Quick Details
-
Warranty:
-
12 YEARS, 25 Years Output Power Guarantee
-
Brand Name:
-
BR SOLAR
-
Model Number:
-
BR-380W
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1765x1048x35mm
-
solar panel:
-

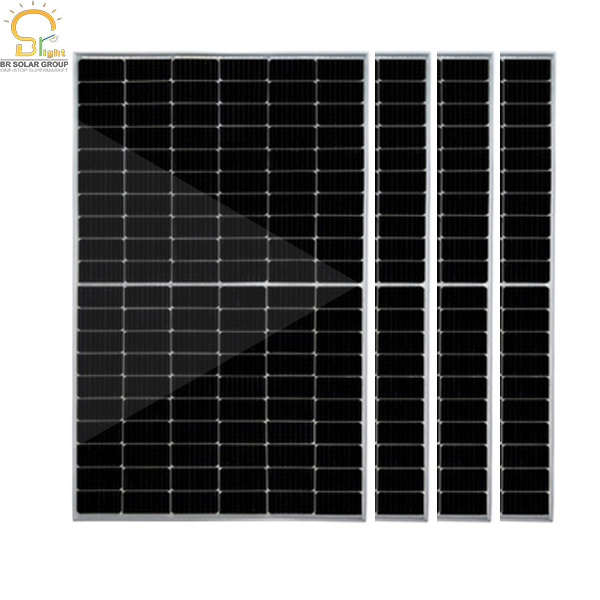

360W 370W 380W Half Cell Mono Solar Panel Home
-
Cell Efficiency:
-
21.6%
-
Module Efficiency:
-
20.6%
-
Certificate:
-
CE/RoHs/ISO9001/IEC
-
Application:
-
Solar Power System
-
Weight:
-
19.8KGS
-
No. of cells:
-
120 (2x60)
-
Packing:
-
31PCS / Pallet
Quick Details
-
Cell size:
-
158.75mmx158.75mm
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
20.6%
-
Warranty:
-
12 YEARS, 25 Years Output Power Guarantee
-
Brand Name:
-
BR SOLAR
-
Model Number:
-
BR-380W
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1765x1048x35mm
-
solar panel:
-
360W 370W 380W Half Cell Mono Solar Panel Home
-
Cell Efficiency:
-
21.6%
-
Module Efficiency:
-
20.6%
-
Certificate:
-
CE/RoHs/ISO9001/IEC
-
Application:
-
Solar Power System
-
Weight:
-
19.8KGS
-
No. of cells:
-
120 (2x60)
-
Packing:
-
31PCS / Pallet
|
Model |
BR-M360W |
BR-M365W |
BR-M370W |
BR-M375W |
BR-M380W |
|
Rated Maximum Power at STC[W] |
360 |
365 |
370 |
375 |
380 |
|
Open Circuit Voltage ( Voc)[V] |
40.9 |
41.1 |
41.3 |
41.5 |
41.70 |
|
Maximum Power Voltage(Vmp)[V] |
33.7 |
33.9 |
34.1 |
34.3 |
34.50 |
|
Short Circuit Current (Isc)[A] |
11.40 |
11.50 |
11.60 |
11.70 |
11.80 |
|
Maximum Power Current (Imp)[A] |
10.68 |
10.77 |
10.85 |
10.93 |
10.01 |
|
Module Efficiency[%] |
19.46 |
19.73 |
20.00 |
20. 27 |
20.54 |
|
Power Tolerance |
0~+ 5W |
0~+ 5W |
0~+ 5W |
0~+ 5W |
0~+ 5W |
Question 1: What kind of Solar Cells we have?
Answer 1:Mono solar cell, such as 158.75*158.75mm, 166*166mm, 182*182mm, 210*210mm,
Poly solar cell 156.75*156.75mm.
Question 2: What is the lead time?
Answer 2:Normally 15 working days after advance payment.
Question 3: What is your monthly capacity?
Answer 3:Monthly capacity is about 200MW.
Question 4:What is the warranty period, how many years?
Answer 4: 12years product warranty, 25years 80% power output warranty for monofacial solar panel, 30years 80% power output warranty for bifacial solar panel.
Question 5: How is your technical support?
Answer 5: We provide lifetime online support through Whatsapp/ Skype/ Wechat/ Email. Any problem after delivery, we will offer you video call anytime, our engineer will also go to oversea help our customers if necessary.
Question 6:How to become your agent?
Answer 6:Contact us through email, we can talk details to confirm.
Question 7: Is sample available and free?
Answer 7:Sample will charge cost, but the cost will be refund after bulk order.
