- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
S5732-H24UM2CC
-
Place of Origin:
-
Beijing, China
-
Model:
-
CloudEngine S5732-H24UM2CC
-
Products Status::
-
Stock
-
chassis height:
-
1U
-
Forwarding Performance:
-
490 mpps
-
color:
-
black or any
-
Fixed Ports:
-
24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports
-
PoE++:
-
Supported
-
Condition::
-
100% Original Brand
-
Extended Slots:
-
supports 2 x 25 GE SFP28 or 8 x 10 GE SFP+, 8 x 25 GE SFP28 cards
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1.28 Tbit/s/2.4 Tbit/s, 1.28 Tbit/s/2.4 Tbit/s
-
Brand Name:
-
OEM
-
Model Number:
-
S5732-H24UM2CC
-
Place of Origin:
-
Beijing, China
-
Model:
-
CloudEngine S5732-H24UM2CC
-
Products Status::
-
Stock
-
chassis height:
-
1U
-
Forwarding Performance:
-
490 mpps
-
color:
-
black or any
-
Fixed Ports:
-
24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports
-
PoE++:
-
Supported
-
Condition::
-
100% Original Brand
-
Extended Slots:
-
supports 2 x 25 GE SFP28 or 8 x 10 GE SFP+, 8 x 25 GE SFP28 cards
Products Description

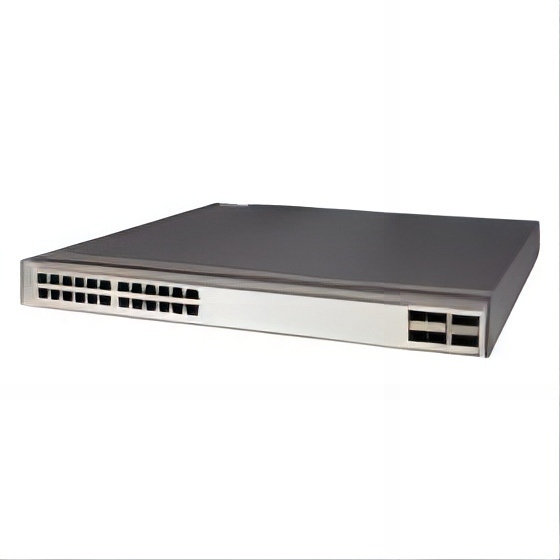

CloudEngine S5732-H Series Multi-GE Switches
Next generation CloudEngine S5732-H Series Multi-GE Switches offers either 24 or 48 downlink ports — up to 10 GE — alongside four 25 GE uplink ports and either two 40 GE or two 100 GE uplink ports. With this feature set, CloudEngine S5732-H is designed for connecting to Wireless Local Area Network (WLAN) APs in the Wi-Fi 6 era.Based on Huawei's unified Versatile Routing Platform (VRP), the switches boast a range of Intent-Driven Network (IDN) features, including an integrated wireless Access Controller (AC) that can manage up to 1024 wireless Access Points (APs), and a freemobility feature that offers a consistently high-quality user experience.
Next generation CloudEngine S5732-H Series Multi-GE Switches offers either 24 or 48 downlink ports — up to 10 GE — alongside four 25 GE uplink ports and either two 40 GE or two 100 GE uplink ports. With this feature set, CloudEngine S5732-H is designed for connecting to Wireless Local Area Network (WLAN) APs in the Wi-Fi 6 era.Based on Huawei's unified Versatile Routing Platform (VRP), the switches boast a range of Intent-Driven Network (IDN) features, including an integrated wireless Access Controller (AC) that can manage up to 1024 wireless Access Points (APs), and a freemobility feature that offers a consistently high-quality user experience.
10 GE Ultra-Fast Access
Supports 24 or 48 10 GE access ports, with 60 W power supply per port.
Built-in Native AC
Manages up to 1024 wireless APs with converged wireless and wired policy management.
Intelligent Network O&M
Collects device data in real-time through telemetry, collaborating with the campus network analyzer, CampusInsight, to quickly and
efficiently detect problems adversely affecting user experience.
efficiently detect problems adversely affecting user experience.
CloudEngine S5732-H Series
Parameters
|
CloudEngine S5732-H24UM2CC
|
CloudEngine S5732-H48UM2CC
|
|
Forwarding Performance
|
490 mpps
|
490 mpps
|
|
Switching Capacity2
|
1.28 Tbit/s/2.4 Tbit/s
|
1.76 Tbit/s/2.4 Tbit/s
|
|
Fixed Ports
|
24 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 25 GE SFP28 + 2 x 40 GE QSFP+ or 2 x 100 GE QSFP28
|
48 x 100M/1G/2.5G/5G/10G Base-T Ethernet ports, 4 x 25 GE SFP28 + 2 x 40 GE QSFP+ or 2 x 100 GE QSFP28
|
|
PoE++
|
Supported
|
Supported
|
|
Extended Slots
|
One extended slot, supports 2 x 25 GE SFP28 or 8 x 10 GE SFP+, 8 x 25 GE SFP28 cards
|
|
|
Wireless Services
|
Management of up to 1024 APs
AP access control, AP domain management, and AP configuration template management Radio channel management, unified static configuration, and dynamic centralized management WLAN basic services, QoS, security, and user management CAPWAP, tag/terminal location, and spectrum analysis |
|
|
iPCA
|
Collection of real-time statistics on the number of lost packets and packet loss ratio at network and device levels
|
|
|
Super Virtual Fabric (SVF)
|
Functions as the parent node to virtualize downstream switches and APs vertically as one device for simpler management
Supports a two-layer client architecture Supports third-party devices between SVF parent and clients |
|
|
VXLAN
|
VXLAN L2 and L3 gateways
Centralized and distributed gateways BGP-EVPN Configured through the NETCONF protocol |
|
|
Interoperability
|
VBST (compatible with PVST/PVST+/RPVST)
LNP (similar to DTP) VCMP (similar to VTP) |
|
