- Product Details
- {{item.text}}
Quick Details
-
Filling Accuracy:
-
99.5%
-
Packaging Type:
-
Cups
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONETOP
-
Dimension(L*W*H):
-
3300*710*1700 mm
-
Weight:
-
800 KG
-
Production Capacity:
-
1500-8000cups/Hour
-
Filling container:
-
Plastic Cups, Bowls
-
Feed Cylinder Structure:
-
Dual-Chamber
-
Filling Principle:
-
Atmospheric Pressure
-
Control System:
-
PLC control
-
Packaging Container Lifting Structure:
-
Pneumatic Lifting
-
Function:
-
Filling, Sealing, Forming
-
Machine Material:
-
Stainless Steel 304
Quick Details
-
Machinery Capacity:
-
4000BPH, 8000BPH, 6000BPH, 2000BPH, 1000BPH
-
Packaging Material:
-
Plastic
-
Filling Material:
-
Water
-
Filling Accuracy:
-
99.5%
-
Packaging Type:
-
Cups
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZONETOP
-
Dimension(L*W*H):
-
3300*710*1700 mm
-
Weight:
-
800 KG
-
Production Capacity:
-
1500-8000cups/Hour
-
Filling container:
-
Plastic Cups, Bowls
-
Feed Cylinder Structure:
-
Dual-Chamber
-
Filling Principle:
-
Atmospheric Pressure
-
Control System:
-
PLC control
-
Packaging Container Lifting Structure:
-
Pneumatic Lifting
-
Function:
-
Filling, Sealing, Forming
-
Machine Material:
-
Stainless Steel 304
Products Description
Basic Functions
>Automatic cup filling and sealing machine is mainly used for cups, bowls, boxes, barrels and containers specially shaped filling and sealing, no special requirements on the material, liquid, paste, granules, so you can mix materials.
Applications
>Suitable for Pure Water, Soy Milk, Jelly, Juice, Jam, Yogurt, Soft Ice Cream, Salad, Pudding, Condiments, beverage and other food filling and sealing.
|
Model
|
ZT-BG60A-2Cups
|
ZT-BG60A-4Cups
|
ZT-BG60A-6Cups
|
ZT-BG60A-8Cups
|
|||
|
Output (cups/h)
|
1500-2000
|
3500-4000
|
5500-6000
|
7500-8000
|
|||
|
Filling Range
|
50-500ML
|
|
|
|
|||
|
Voltage
|
220V / 380V 50-60HZ
|
|
|
|
|||
|
Power
|
2KW
|
3.5KW
|
4.5KW
|
5.5KW
|
|||
|
Template
|
2 cups 1 time
|
4 cups 1 time
|
6 cups 1 time
|
8 cups 1 time
|
|||
|
Control System
|
PLC / MCU
|
|
|
|
|||
|
Capping Film
|
Roll Film / Sheet Film (Aluminum Foil Sheet Film)
|
|
|
|
|||
|
Metering Methods
|
Dosing Filling (liquid, paste, semifluid)
|
|
|
|
|||
|
Air Consumption
|
0.5 m3/min
|
0.6 m3/min
|
0.7 m3/min
|
0.8 m3/min
|
|||
|
Dimensions
|
3300*710*1700mm
|
3800*800*1700mm
|
3900*900*1700mm
|
4000*1000*1700mm
|
|||
|
Weight
|
300KG
|
450KG
|
600KG
|
800KG
|
|||
|
Working Process:
|
Roll Film Function
|
Sheet Film Function
|
|
1
|
Automatic Falling Cup
|
Automatic Falling Cup
|
|
2
|
Automatic washing cups (Optional)
|
Automatic washing cups (Optional)
|
|
3
|
Automatic Filling
|
Automatic Filling
|
|
4
|
Coding Device
|
X
|
|
5
|
UV Germicidal (Optional)
|
UV Germicidal (Optional)
|
|
6
|
Optical Positioning
|
Optical Positioning
|
|
7
|
Two Sealing
|
Two Sealing
|
|
8
|
Automatic Cut Film
|
X
|
|
9
|
Waste Film Recycling
|
X
|
|
10
|
Array Off Cup
|
Array Off Cup
|
Rolled Film or Sheet Film
Details Images

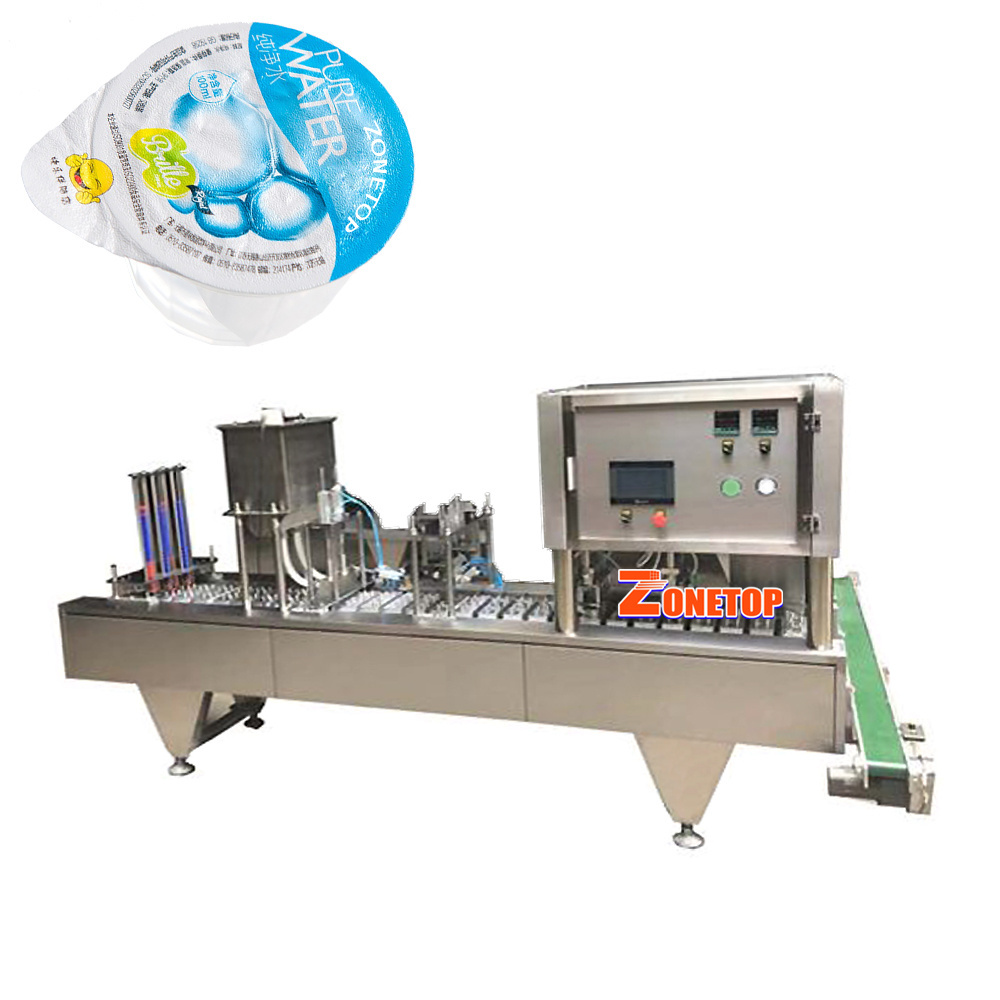

Linear Cup Filling and Sealing Machine
Automatic Cup
Falling Washing Filling Sealing 4-in-1 Machine
(
Roll Film or Sheet Film
), (Plastic Cap or Paper Cap)
is also OK.
Cup Samples:
Suitable for
Pure Water, Juice, Milk, Soy Milk, Jelly, Pudding, Jam, Yogurt, Soft Ice Cream, etc
Related Products
FAQ
What is the specification of our cup filling sealing machine?
1) According to client's specification requirements, provides the special design.
2) So many optional devices for clients to choose.
3) Automatically finish all the processes.
4) PLC and transducer control, will save more power and stable operation.
5) The machine is exquisite made with stainless steel and equipped with world top brand pneumatic and electrical control
instruments: Schneider, Omron etc.
6) Equipped with MITSUBISHI PLC and Taiwan Wen-View touch screen to monitor and indicate current state of the production and
record daily production data, and with protection module of auto-lock if there is any malfunction or mistake.
7) Equipped with national top brand coding machine which is well-knew for its reliability and stability.
What is the advantages of our cup filling sealing machine?
1) We are factory, direct sales with competive price;
2) More than 8 years experience for cup fill and seal;
3) Professional designer and worker to serve you;
4) This machine with a strict inspection before out of storage;
5) This machine use a large number of 304 stainless steel;
6) This machine use world famous electrical and pneumatic components;
7) Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free.
1) According to client's specification requirements, provides the special design.
2) So many optional devices for clients to choose.
3) Automatically finish all the processes.
4) PLC and transducer control, will save more power and stable operation.
5) The machine is exquisite made with stainless steel and equipped with world top brand pneumatic and electrical control
instruments: Schneider, Omron etc.
6) Equipped with MITSUBISHI PLC and Taiwan Wen-View touch screen to monitor and indicate current state of the production and
record daily production data, and with protection module of auto-lock if there is any malfunction or mistake.
7) Equipped with national top brand coding machine which is well-knew for its reliability and stability.
What is the advantages of our cup filling sealing machine?
1) We are factory, direct sales with competive price;
2) More than 8 years experience for cup fill and seal;
3) Professional designer and worker to serve you;
4) This machine with a strict inspection before out of storage;
5) This machine use a large number of 304 stainless steel;
6) This machine use world famous electrical and pneumatic components;
7) Within Warranty period, if under the usage of instruction sheet, any product broken or damage, we will offer the repair service for free or replace for free.
