Quick Details
-
Place of Origin:
-
Jiangsu, China, Jiangsu, China
-
Brand Name:
-
JN
-
Model Number:
-
MT01-FY-A
-
Torque:
-
22Nm
-
Brake:
-
electric magnetic brake
-
Power:
-
250w
-
Voltage:
-
24V
-
Second Name:
-

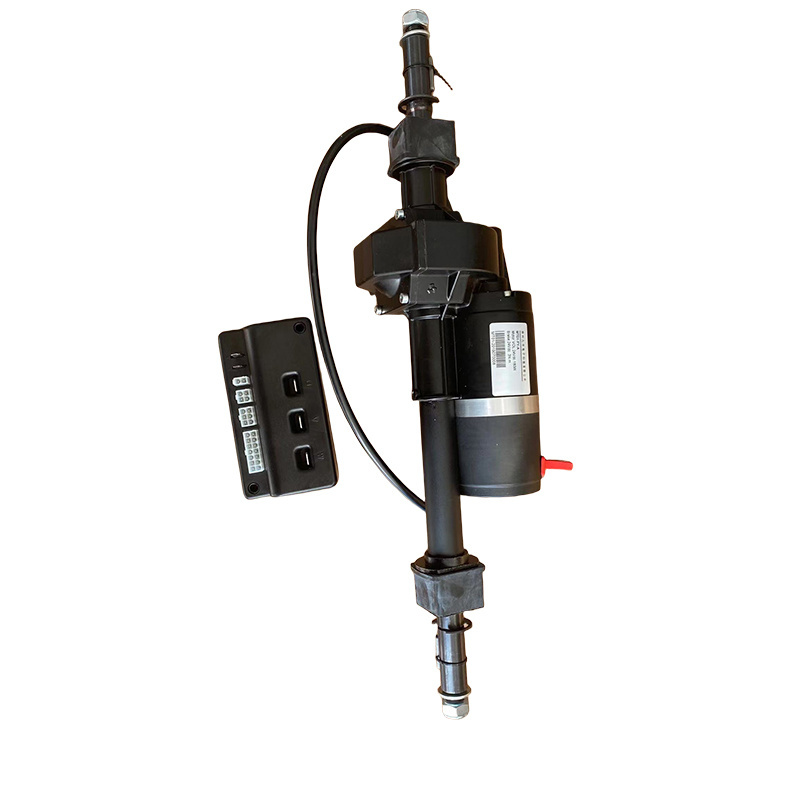

Transaxle for mobility scooter
Quick Details
-
Speed(RPM):
-
4200RPM
-
Continuous Current(A):
-
0.7-27A
-
Efficiency:
-
Ie 3
-
Place of Origin:
-
Jiangsu, China, Jiangsu, China
-
Brand Name:
-
JN
-
Model Number:
-
MT01-FY-A
-
Torque:
-
22Nm
-
Brake:
-
electric magnetic brake
-
Power:
-
250w
-
Voltage:
-
24V
-
Second Name:
-
Transaxle for mobility scooter
Installation position
Application Field
Product Features:
* Long working lifespan
* Single-stage gear power transmission
* Convenient electronic brake
* Soft start-up performance
* High Efficiency
* Low noise
* Long driving distance
* Logo can be customised
* ODM order are welcome
|
Technical parameters
|
|
|
|
Power
|
250W
|
|
|
Rated Voltage
|
24VDC
|
|
|
Insulation Class
|
F Class
|
|
|
No-load Speed
|
4200rpm
|
|
|
No-load Output Speed
|
190~195rpm
|
|
|
No-load Current
|
<3.0A
|
|
|
Waterproof Grade
|
IP54
|
|
|
Reducer Speed Ratio
|
20.7:1
|
|
|
Electromagnetic Brake
|
4N.m
|
|
|
Weight
|
3.7kg
|
|
1.Q: Can we do OEM/ODM order for
electric four wheel vechile
?
A: Sure.
2.Q: Can I order some electric four wheel vechile samples at first to test the quality?
A: Yes,welcome sample order.
3.Q: What's your payment term?
A: For sample order, t/t, Western Union or Paypal are ok ; for large order, t/t & L/C are welcome.
5.Q: What’s the delivery time?
A: It ususally will 2-3 weeks for the delivery of electric four wheel vechile .
6.Q: Can I mix in one container with different electric four wheel vechile models?
A: Yes.
7.Q: What's the delivery methods of the electric four wheel vechile ?
A: For bulk orders, by ocean shipment; for sample orders, by air transportation/ international expresses.
8.Q: What's the warranty of electric four wheel vechile ?
A: 12 months.
A: Sure.
2.Q: Can I order some electric four wheel vechile samples at first to test the quality?
A: Yes,welcome sample order.
3.Q: What's your payment term?
A: For sample order, t/t, Western Union or Paypal are ok ; for large order, t/t & L/C are welcome.
5.Q: What’s the delivery time?
A: It ususally will 2-3 weeks for the delivery of electric four wheel vechile .
6.Q: Can I mix in one container with different electric four wheel vechile models?
A: Yes.
7.Q: What's the delivery methods of the electric four wheel vechile ?
A: For bulk orders, by ocean shipment; for sample orders, by air transportation/ international expresses.
8.Q: What's the warranty of electric four wheel vechile ?
A: 12 months.
