Quick Details
-
Brand Name:
-
EBASEE
-
Model Number:
-
CA10
-
Max. Current:
-
160A
-
Product name:
-
Universal Changeover Switch
-
Standard:
-
IEC60947-3
-
Poles:
-
2p / 3p / 4p
-
Rated current:
-
20~160Amp
-
Rated voltage:
-
120V 240V 440V 660V
-
Rated frequency:
-
50Hz/60Hz
-
Rotation angle code:
-
30°45°60°90°
-
Rated power:
-
3-phase AC motor
-
Altitude:
-
≤2,000m
-
Relative humidity:
-
≤95%
-
Certification:
-
CE
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
660V
-
Place of Origin:
-
China
-
Brand Name:
-
EBASEE
-
Model Number:
-
CA10
-
Max. Current:
-
160A
-
Product name:
-
Universal Changeover Switch
-
Standard:
-
IEC60947-3
-
Poles:
-
2p / 3p / 4p
-
Rated current:
-
20~160Amp
-
Rated voltage:
-
120V 240V 440V 660V
-
Rated frequency:
-
50Hz/60Hz
-
Rotation angle code:
-
30°45°60°90°
-
Rated power:
-
3-phase AC motor
-
Altitude:
-
≤2,000m
-
Relative humidity:
-
≤95%
-
Certification:
-
CE

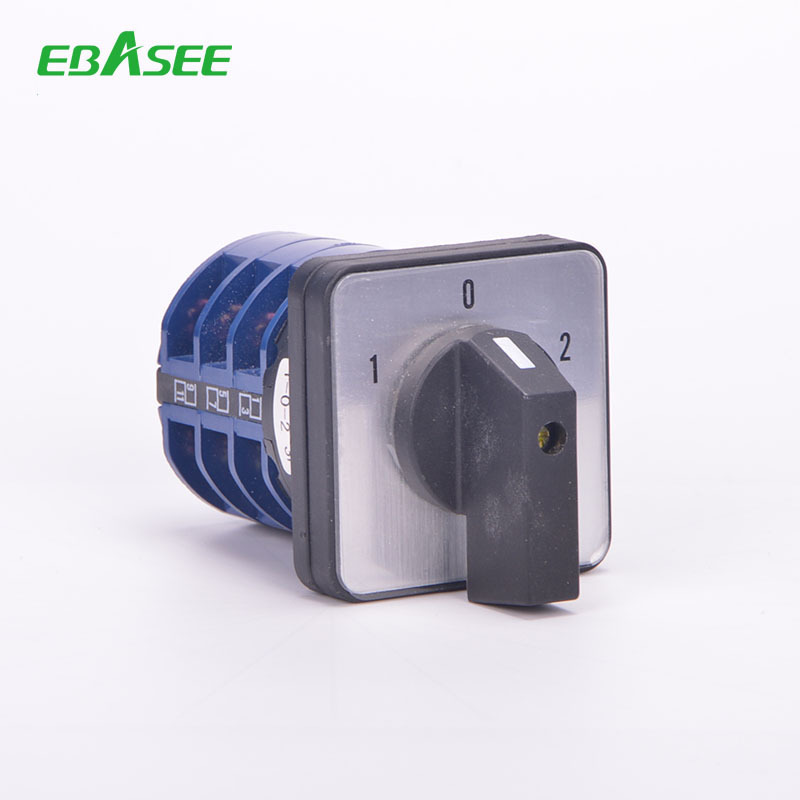

Universal Changeover Switch
Function
CA10 series control and load switches offer a solution for most cam switch operations. Different types can be used as control switches, switches to be installed in equipments and switches for motor control according to IEC60947-3.
|
Model Name |
CA10 Universal changeover switch |
|
Standard |
IEC60947-3 |
|
Poles |
2P 3P 4P |
|
Rated power |
3-phase AC motor |
|
Rated current In(A) |
20~160Amp |
|
Rated voltage Un(V) |
120V 240V 440V 660V |
|
Rotation angle code |
30°45°60°90° |
Classifications
n Classified by utilization,control and load switch,motor switch,control switch
n Classified by operation limited movement spring return,limited movement with spring return
n Classified by contact system switch with limited movement has 1-12poles(63A only have 8poles), switch with spring return has 1~3poles,motor control switch has 1-6poles
n Classified by rotation angle: 30°45°60°90°etc
n Classified by panel square panel,rectangular panel, circular panel (only 20A)
n Classified by handle R type, I type, F type, B type, S type, L type, P type, K type.
Applicable Working
|
Ambient temperature |
-5~+40℃, the average value cannot exceed to +35℃ within 24h |
|
Altitude |
≤2,000m |
|
Relative humidity |
≤95% |
|
Pollution level |
II. |
|
Installation location |
Mount on the place where has no obvious vibration or impact |
