Quick Details
-
Structure:
-
Angle
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sinya
-
Model Number:
-
-JFT2 Male Angle-type Needle Valve with Ferrule
-
Port Size:
-
1/8" to 3/4"
-
Material::
-
Stainless Steel,Alloy
-
Structure::
-
Needle
-
material::
-
SS304, SS316,SS304L,SS316L,Alloy
-
pressure::
-
6000psi
-
Body material::
-
Stainless Steel 316,Alloy
-
structure::
-
Straight angle valve
-
Certificate::
-
ISO9001:2008 CE
-
Connection::
-
Male Thread
-
Material:
-
316 Stainless Steel
-
Packing:
-
Standard Packing
Quick Details
-
Type:
-
Needle Valves
-
Application:
-
General
-
Power:
-
Manual
-
Structure:
-
Angle
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Sinya
-
Model Number:
-
-JFT2 Male Angle-type Needle Valve with Ferrule
-
Port Size:
-
1/8" to 3/4"
-
Material::
-
Stainless Steel,Alloy
-
Structure::
-
Needle
-
material::
-
SS304, SS316,SS304L,SS316L,Alloy
-
pressure::
-
6000psi
-
Body material::
-
Stainless Steel 316,Alloy
-
structure::
-
Straight angle valve
-
Certificate::
-
ISO9001:2008 CE
-
Connection::
-
Male Thread
-
Material:
-
316 Stainless Steel
-
Packing:
-
Standard Packing
Product Description
|
1、A dust-proof cap is supplied on the top of the stuffing box gland which can protect the stem thread from the outside impurities.
|
|
|
|
|
||||
|
2、The stuffing filling is under the thread to effectively protect the lubricating grease from being brushed away.
|
|
|
|
|
||||
|
3、The core and the stem is of lapped joint with the functions of up sealing.
|
|
|
|
|
||||
|
4、Vertical hard sealing is used between the core and the body, also between the seat and the body.
|
|
|
|
|
||||
|
5、Non-rotational ball-shaped stem head and adjustable stem head can be supplied.
|
|
|
|
|
||||
|
6、Operating pressure can be up to 6000 psi (413bar).
|
|
|
|
|
||||
|
7、Operating temperature: -53 to 232℃（-65 to 450 F）for PTFE sealing. -53 to 649℃（-65 to 1200 F ）for graphite sealing.
|
|
|
|
|
||||
|

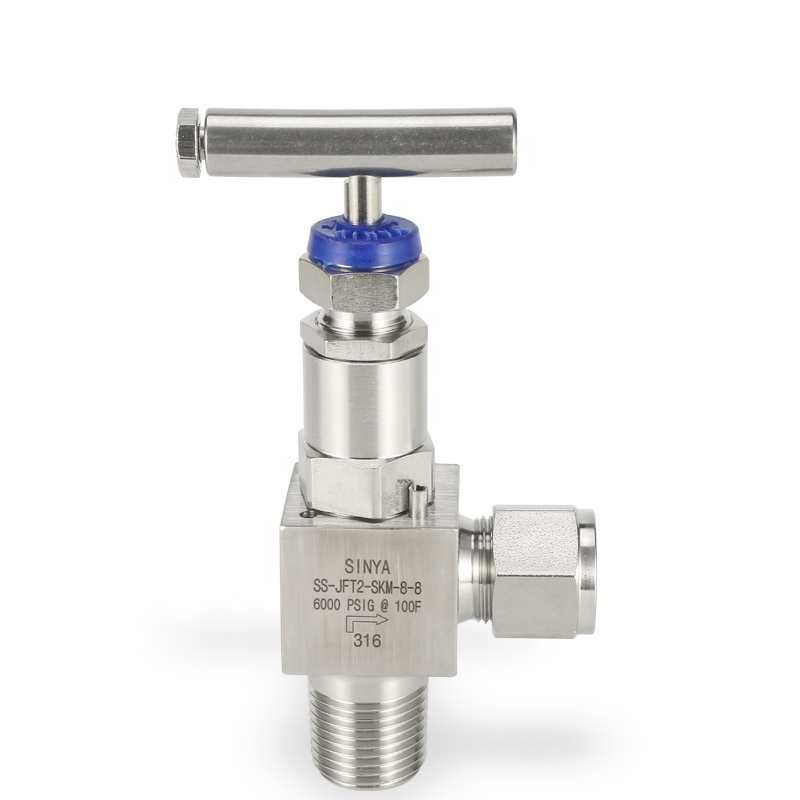

-JFT2 Male Angle-type Needle Valve with Ferrule
|
|
|
|
|
|
|||||
|
Order information
|
End Connection
|
|
Orifice
|
|
Flow coefficient
|
|||||
|
|
T
|
P
|
(in)
|
(mm)
|
Cv
|
|||||
|
-JFT2-SKM-2-2
|
1/8
|
NPT1/8
|
0.09
|
2.4
|
0.15
|
|||||
|
-JFT2-SKM- 4-4
|
1/4
|
NPT1/4
|
0.1 7
|
4.4
|
0.3 7
|
|||||
|
-JFT2-SKM- 6-6
|
3/8
|
NPT3/8
|
0.2 5
|
6.4
|
0.7 3
|
|||||
|
-JFT2-SKM- 8-8
|
1/2
|
NPT1/2
|
0.3 7
|
9.5
|
1.8
|
|||||
|
-JFT2-SKM- 12-12
|
3/4
|
NPT3/4
|
0.4 4
|
11.1
|
2.4
|
|||||
|
Order information
|
A
|
|
B
|
|
H
|
|
F
|
|
||||
|
|
(in)
|
(mm)
|
(in)
|
(mm)
|
(in)
|
(mm)
|
(in)
|
(mm)
|
||||
|
-JFT2-SKM-2-2
|
1.14
|
29.0
|
0.98
|
25.0
|
2.83
|
72
|
1.12
|
28.4
|
||||
|
-JFT2-SKM- 4-4
|
1.2 0
|
30.5
|
1.1 0
|
28.0
|
3.3 9
|
86
|
1.7 5
|
44.4
|
||||
|
-JFT2-SKM- 6-6
|
1.3 8
|
35.0
|
1.1 8
|
30.0
|
3.4 6
|
88
|
2.2 3
|
56.6
|
||||
|
-JFT2-SKM- 8-8
|
1.5 0
|
38.0
|
1.4 2
|
36.0
|
3.5 4
|
90
|
2.5 0
|
63.5
|
||||
|
-JFT2-SKM- 12-12
|
1.5 4
|
39.0
|
1.5 4
|
39.0
|
3.7 8
|
96
|
2.5 0
|
63.5
|
||||
