Quick Details
-
Dimension(L*W*H):
-
2000*1250*1400mm
-
Power (kW):
-
3
-
Weight (KG):
-
1760 KG
-
Product Name:
-

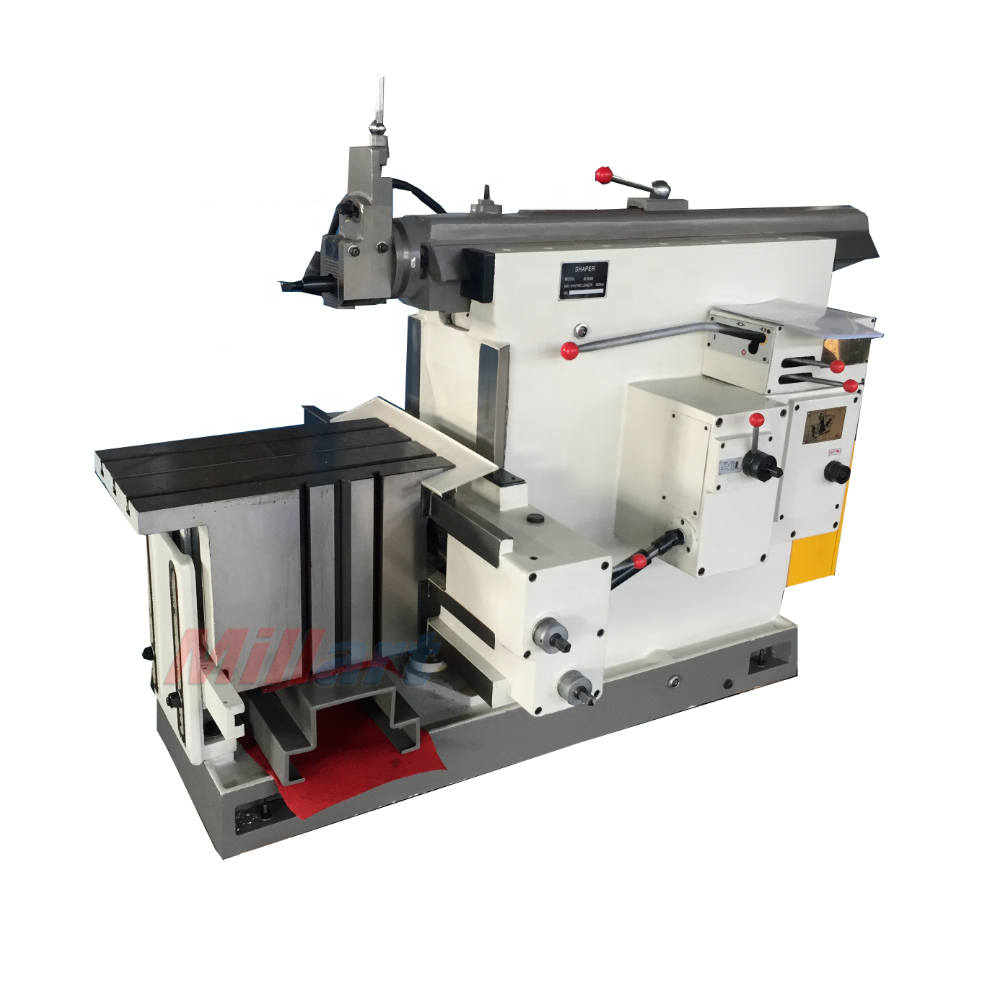

Shaper Machine
-
Model:
-
BC6050
-
Maximum shaping length:
-
500mm
-
Travel of tool head:
-
120mm
-
Main motor power:
-
3kw
-
Swivel of tool head:
-
+/-60 °
-
Dimension of table top(L*W):
-
400*360mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Millart
-
Marketing Type:
-
New Product 2023
-
Dimension(L*W*H):
-
2000*1250*1400mm
-
Power (kW):
-
3
-
Weight (KG):
-
1760 KG
-
Product Name:
-
Shaper Machine
-
Model:
-
BC6050
-
Maximum shaping length:
-
500mm
-
Travel of tool head:
-
120mm
-
Main motor power:
-
3kw
-
Swivel of tool head:
-
+/-60 °
-
Dimension of table top(L*W):
-
400*360mm
Products Description
Features:
1.The tool post can rotate with more angle in the vertical plane,
2.Manual feeding is available. For tool post.
3.For slotting shaping more economic machining equipment.
4.worktable feeding on cross and vertical specially for swallow tail machining and channel machining.
5.suitable for single piece or small match production.
Specifications:
|
Specifications
|
|
Units
|
BC6050
|
|
|
Maximum shaping length
|
|
mm
|
500
|
|
|
Max.range of the horizontal movement of the table
|
|
mm
|
370
|
|
|
Max.distance between he ram bottom and table
|
|
mm
|
525
|
|
|
Max.length of the vertical movement of table
|
|
mm
|
270
|
|
|
Dimension of table top(L*W)
|
|
mm
|
400X360
|
|
|
Travel of tool head
|
|
mm
|
120
|
|
|
Number of ram strokes per minute
|
|
Times min
|
14-80
|
|
|
Swivel of tool head
|
|
°
|
+/-60
|
|
|
Maximum size of tool shank(W*T)
|
|
mm
|
20X30
|
|
|
Range of table feed
|
Horizontal 12 steps
|
mm
|
0.4-5.0
|
|
|
|
vertical 12 steps
|
mm
|
0.08-1.0
|
|
|
Width of the T-slot for center positioning
|
|
mm
|
18
|
|
|
Main motor power
|
|
KW
|
3
|
|
|
Overall dimension(L*W*H)
|
|
mm
|
2000X1250X1400
|
|
|
N.w./G.W
|
|
kg
|
1650/1760
|
|
