Quick Details
-
Brand Name:
-
vapcell
-
cell Model:
-
DBK 20650 3200mAh 3C 5S7P
-
cell connection:
-
5s7p
-
Size:
-
190*195.31*239.95mm
-
Battery pack full cut-off voltage:
-
21±0.25V
-
Protection board Self-consumption:
-
≤30uA
-
Capacity:
-
22400mah
-
power:
-
400w
-
Weight:
-
about 5KG
-
Application1:
-
electric fan,rice cooker,television set,microwave oven,outdoor sound
-
Application2:
-
outdoor light,printer,in-car refrigerator,cell phone
Quick Details
-
Battery Type:
-
Lithium Ion
-
Model Number:
-
es400
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
vapcell
-
cell Model:
-
DBK 20650 3200mAh 3C 5S7P
-
cell connection:
-
5s7p
-
Size:
-
190*195.31*239.95mm
-
Battery pack full cut-off voltage:
-
21±0.25V
-
Protection board Self-consumption:
-
≤30uA
-
Capacity:
-
22400mah
-
power:
-
400w
-
Weight:
-
about 5KG
-
Application1:
-
electric fan,rice cooker,television set,microwave oven,outdoor sound
-
Application2:
-
outdoor light,printer,in-car refrigerator,cell phone

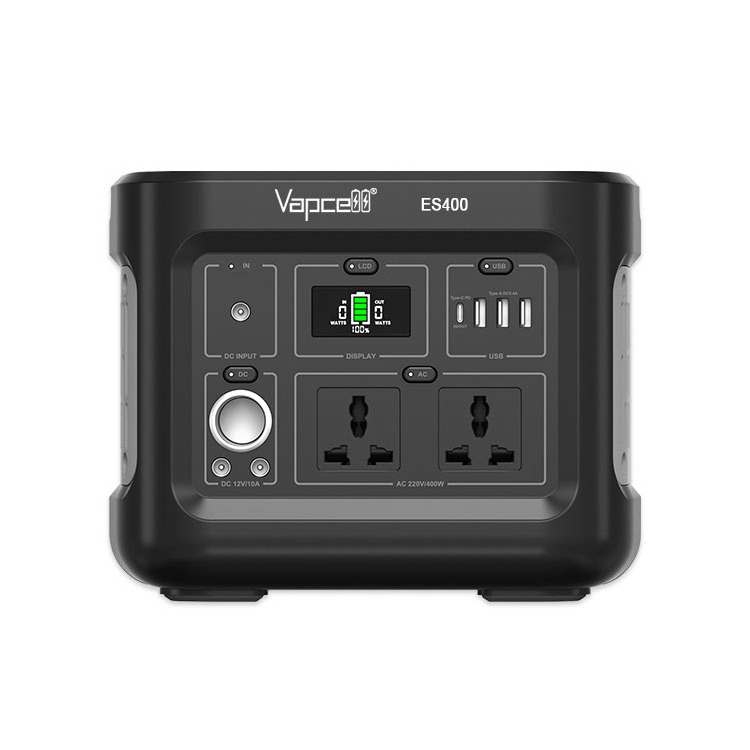

VAPCELL 400w 22400mah ES400 Portable Power Station Lithium Battery Pack Outdoor Solar Rechargeable Mobile Power Supply
All of the vapcell batteries are TRUE RATING
Pictures:
1.Application Environment
1.1 As an energy storage power source for outdoor office use, it can be connected to consumer digital devices such as mobile phones, tablets, and notebooks.
1.2 Outdoor electricity for outdoor photography and off-road enthusiasts, and outdoor electricity for video recording equipment of TV stations.
1.3 Electricity for outdoor lighting.
1.4 Emergency power supply for mines, oil fields, geological prospecting, and geological disaster rescue.
1.5 Emergency power for field maintenance of the telecommunications department.
1.6 Emergency electricity for small miniature first aid equipment for medical equipment.
1.7 Charging temperature environment 0℃—+40℃, discharging temperature environment -10℃—+40℃, storage environment temperature -20℃— +60℃, working environment humidity 20%—90%RH without condensation (no condensation) , Storage environment humidity: 5%-95%RH, no condensation (no condensation), altitude ≤2000 meters.
2. Feature
2.1 High capacity, high power, built-in lithium battery, long standby time, high conversion efficiency, easy to carry.
2.2 Pure sine wave output, suitable for various loads, 100% rated power resistive load (incandescent lamp, etc.), 65% rated power capacitive load (adapter, energy saving lamp, LED lamp, etc.), 60% rated power The inductive load (fan, etc.).
2.3 The inverter part of this product is a single-phase offline inverter.
2.4 This product has three USB outputs, independent OCP, OVP, short circuit protection, and ID automatic identification function.
2.5 This product has a TYPE-C output, two-way PD function, rated 100W.
2.6 Wide-range DC input voltage charging, DC plug 5.5*2.5mm, rated input voltage range 12-24Vdc.
2.7 Lighting lamp with 3W power.
2.8 With two DC output voltages: 13.3V/10A
2.9 With a cigarette lighter port DC output voltage: 13.3V/10A
3.0 Comprehensive protection: input under voltage protection, output over voltage protection, overload protection, short circuit protection, over temperature protection.
1.1 The power supply shall meet the following Standards:
(1) UL60950
(2) UL840
(3) UL2743
(4) UN38.3
1.2 Insulation Performance
(1) Insulation Impedance
Note: Primary to Secondary:10 MΩ Min.(Supply 500 VDC)
(2) Insulation withstand voltage
Note: Primary to Secondary : 2000Vac/10mA/5S
Disconnect the AC ground and output negative terminal.
|
cell model |
DBK 20650 3200mAh 3C ,Discharge rate 3C |
|
|
Batteries specifications |
Rated voltage |
3.6V |
|
|
Maximum charge voltage |
4.2V |
|
|
Maximumdischarging current |
9.6A |
|
|
Standard discharge |
2.5VConstant current 0.2C (640mA), cut-off discharge voltage 2.5V |
|
|
Storage condition |
1 Month: -20 ~ 60℃ 3 Months: -20 ~ 45℃ 1 Year: -20 ~ 25℃ |
|
cell connection |
5S7P |
|
|
Battery pack full cut-off voltage |
21±0.25V |
|
|
Cell pairing requirements |
difference≤10mV, internal resistance difference≤3mΩ, capacity difference≤50mAh |
|
|
Protection board Over charge protection voltage |
4.25V±0.05V |
|
|
Protection board overcharge recovery voltage |
4.15V±0.05V |
|
|
Protection board Over discharge protection voltage |
2.7V±0.1V |
|
|
Protection board over-discharge recovery voltage |
3.0V±0.1V |
|
|
Protection board Balanced voltage |
4.125V±0.05V |
|
|
Protection board Balanced current |
40mA±10 mA |
|
|
Protection board Over current protection |
100±15A |
|
|
Protection board Over current protection |
Yes, the output is 0 |
|
|
Protection board Self-consumption |
≤30uA |
|
2. Feature
2.1 High capacity, high power, built-in lithium battery, long standby time, high conversion efficiency, easy to carry.
2.2 Pure sine wave output, suitable for various loads, 100% rated power resistive load (incandescent lamp, etc.), 65% rated power capacitive load (adapter, energy saving lamp, LED lamp, etc.), 60% rated power The inductive load (fan, etc.).
2.3 The inverter part of this product is a single-phase offline inverter.
2.4 This product has three USB outputs, independent OCP, OVP, short circuit protection, and ID automatic identification function.
2.5 This product has a TYPE-C output, two-way PD function, rated 100W.
2.6 Wide-range DC input voltage charging, DC plug 5.5*2.5mm, rated input voltage range 12-24Vdc.
2.7 Lighting lamp with 3W power.
2.8 With two DC output voltages: 13.3V/10A
2.9 With a cigarette lighter port DC output voltage: 13.3V/10A
3.0 Comprehensive protection: input under voltage protection, output over voltage protection, overload protection, short circuit protection, over temperature protection.
3.Precautions
1.Do not put it in a high temperature environment or bake by a fire, or explode in the sun.
2 Do not place it in water or rain outdoors.
3 Do not use in an environment outside the scope of the use environment.
4 When not using the product, please press the corresponding button to turn off the output or unplug the load, otherwise the internal circuits of the DC and AC parts are still in place
In the power consumption state.
5 When using inverters, consumers are asked to use electrical and electronic equipment that has obtained official certification.
6 Non-technical professionals should not disassemble the product.
7 Do not connect the AC output socket of the device to the mains power socket with a wire, otherwise it will cause damage to the device.
Natural Packing
