Quick Details
-
Model Number:
-
273, QS273
-
Brand Name:
-
qs motor
-
Max. speed:
-
80-100km/h
-
Max. torque:
-
180N.m
-
Color:
-
black
-
Feature:
-
Two Halls, High-Efficiency
-
Efficiency:
-
90.8%
-
Waterproof:
-
IP54
-
Certificatio:
-
CE By SGS, ISO9000, TS16949
Quick Details
-
Voltage:
-
48V-96V
-
Style:
-
hub motor
-
Place of Origin:
-
shanghai
-
Model Number:
-
273, QS273
-
Brand Name:
-
qs motor
-
Max. speed:
-
80-100km/h
-
Max. torque:
-
180N.m
-
Color:
-
black
-
Feature:
-
Two Halls, High-Efficiency
-
Efficiency:
-
90.8%
-
Waterproof:
-
IP54
-
Certificatio:
-
CE By SGS, ISO9000, TS16949
Product Description
Specification

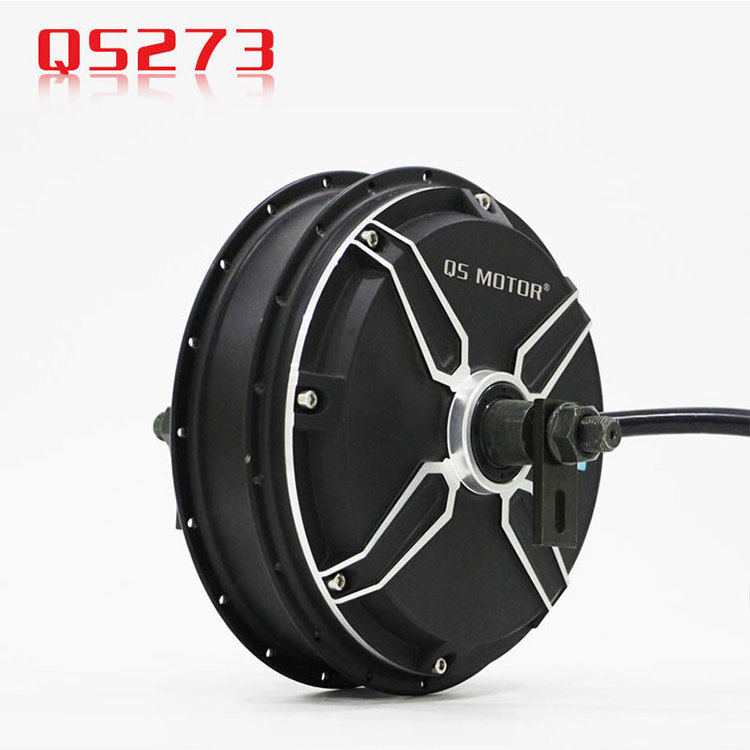

- Motor Type: BLDC Permanent Magnet Outer Rotor In-Wheel Hub Motor With Hall Sensor
- Brand: QS Motor,QSMOTOR
- Motor Design: Double axle without rim (not integrated), 36 spoke holes, OD 4.2mm
- Matching Rim size: 24inch, 26inch E-Bike Wheel, 17inch, 18inch, 19inch moped wheel.
- Magnet Height: 50mm, 16 pole pairs
- Stator: Aluminmum Core
- Rated Power: 8000W
- Rated Voltage: 72V as default (48V-96V, optional)
- Speed: 120KPH as default (24-120KPH, optional)
- Max Torque: approx 350N.m
- Max Efficiency: 86-91%
- Continuous Battery Current: 110A (72V)
- Peak Battery Current: 150-200A (72V)
- Suggest Peak Phase Current: 300-650A (depend on the kV)
- Thermic Probe: KTY83/122 (as default, optional)
- Working Temperature: 70-120℃ , peak 150 ℃
- Brake type: Bike Disc brake, PCD3*80mm(as default)
- Drop-outs/Rear Fork Width for installation: 200m
- 14mm axle flats
- Dual Hall Set with waterproof connectors
- 16mm⊃2; Cross Section of Phase Wire (not include insulation layer)
- Hall Sensor Phasing angle: 120 degree
- Waterproof Grade: IP54
- Color: Black (as default), White/Luminous (extra $5.0)
- N.W./G.W.: 21.5kg/23.0kg
- Package Dimension: 43cm*43cm*41cm/piece
