Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Dapeng
-
Voltage:
-
220V 50HZ
-
Dimension(L*W*H):
-
4000mm*2200mm*1500mm
-
Weight:
-
2400kg
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Certification:
-
CE
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
80 times/minutes if cut 100mm
-
Max. workable width:
-
1400mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Dapeng
-
Voltage:
-
220V 50HZ
-
Dimension(L*W*H):
-
4000mm*2200mm*1500mm
-
Weight:
-
2400kg
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Certification:
-
CE

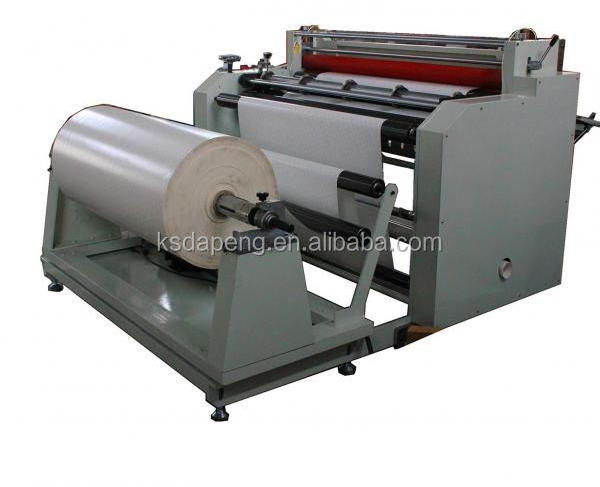

Paper / Film / Tape / Foil Roll To Sheet Cutting Machine Label Cutter
Functional Characteristics:
1.M agnetic powder controlled the unwinding tension.
2.Rectification system to make the material in line.
3. DELTA s ervo motor pull the material,high precision.
4.MITSUBISHI PLC with touch screen to set any length,quantity,speed.
5.3 inch inflatable shaft for unwinding.
6.20mm thickness steel wall make machine run stable.
7. Pulling roller coat thick PU rubber and won't scratch the material.
8.Polished and anodized aluminum guiding roller, very smooth and never harm the material.
9. SKD11 cutting blade can use very long time and cut the sheet with perfect edge at cutting part.
10.Standard 8 rotary blade for slitting function.
11. Other standard machine:360mm,500mm,600mm,800mm,1000mm.
Purpose:
This machine can cut flexible materials from roll to sheet,such as plastic,paper,label,film,foam,a luminum foil etc.
Technical Data:
|
Model |
DP-1400 |
|
Max Feeding Width ( mm ) |
1400 |
|
Max unwind roll diameter(mm ) |
800 |
| Slitting width (mm ) | 25-1400 |
| Unwind shaft diameter | 3 inch |
| Cut 100mm speed ( times/minute ) | 80 |
| Total Power | 5kw |
| PLC | MITSUBISHI |
| Servo Motor Servo Driver | DELTA |
| Precision ( mm ) | ±0.10 |
|
Voltage |
220V 50HZ |
Electrical listing :
|
Touch Screen |
KUNLUNTONGTAI |
Made in China |
|
Programmable Controller |
MITSUBISHI |
Made in Japan |
|
Servo Driver |
Delta |
Made in Taiwan |
|
Servo Motor |
Delta |
Made in Taiwan |
|
Motor of cutting knife |
SHENLI |
Made in China |
|
AC Contactor |
CHNT |
Made in China |
|
Solid State Relay 20A |
GOLD ELECTRICAL CONTROL |
Made in China |
Pictures:
