Quick Details
-
Certification:
-
ce
-
Wheel number:
-
4
-
Product size:
-
1900x1140x1200mm
-
Motor power:
-
5000W
-
Charging time:
-
8-12 hours
-
Battery:
-
60V 50AH
-
Transmission:
-
shaft drive transmission
-
Control chip:
-
60V 50AH
-
Charging power input:
-
110-240V/50-60HZ
Quick Details
-
Power:
-
> 1000W
-
Brand Name:
-
MADEMOTO
-
Place of Origin:
-
Zhejiang, China
-
Certification:
-
ce
-
Wheel number:
-
4
-
Product size:
-
1900x1140x1200mm
-
Motor power:
-
5000W
-
Charging time:
-
8-12 hours
-
Battery:
-
60V 50AH
-
Transmission:
-
shaft drive transmission
-
Control chip:
-
60V 50AH
-
Charging power input:
-
110-240V/50-60HZ

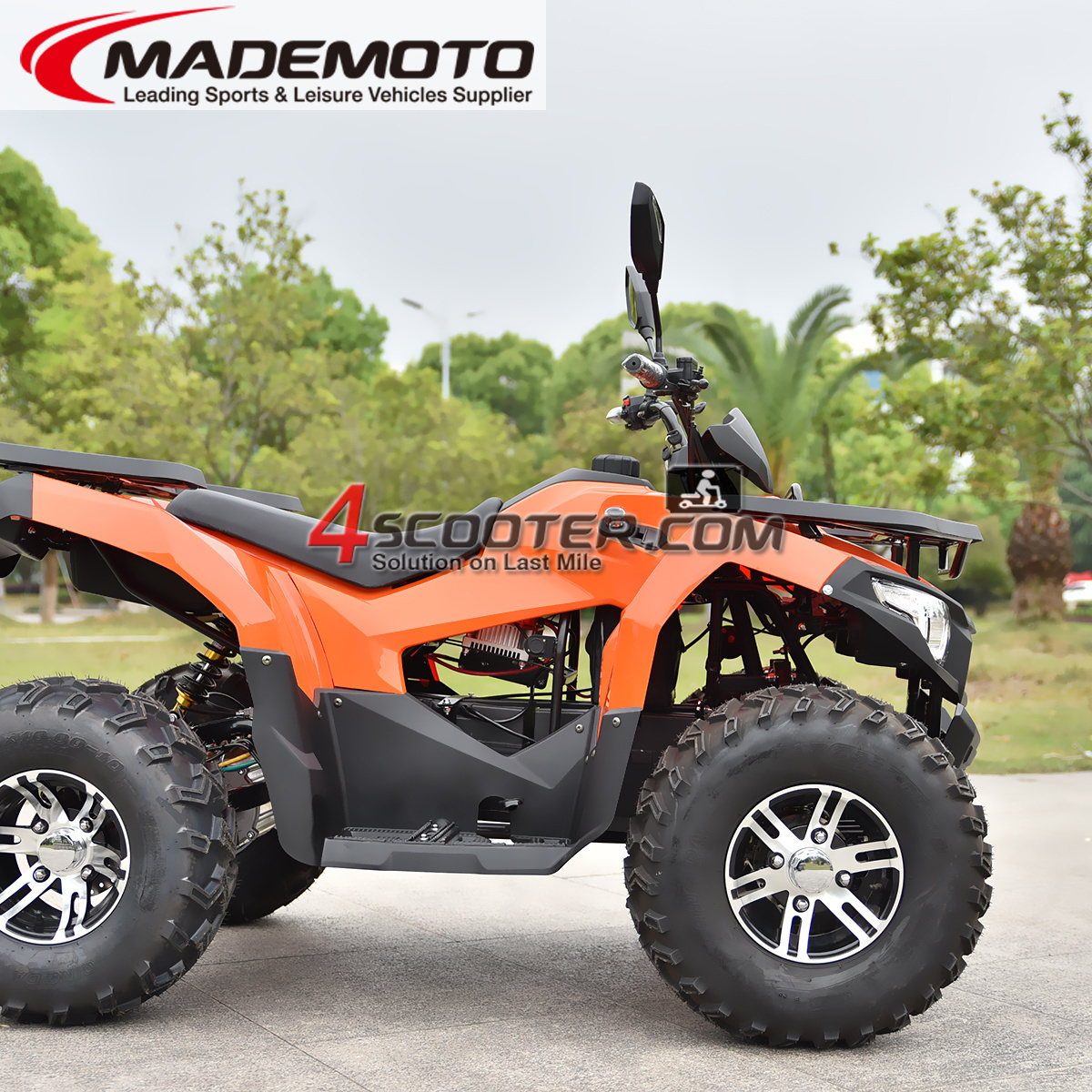

Utility ATV/QUAD BIKE with 5000W motor
Wiztem Industry is professional in proucing 2200w quad bike ATV, Shaft Drive ATV, 4 wheeler atv for more than 10years, we have professional sales team, technical department, after-sale service and so on
Choose Wiztem, Choose Hight Quality, Choose Success
|
||||
|
60V Electric Big Quad ATV Bike with 5000W AC Motor 60V Electric Big Quad ATV Bike with 5 000W AC Motor Wheel number: 4 Product size: 1 900 x11 4 0x1 2 00mm Motor power: 5 000 W Battery: 60V 5 2 AH Rate power: 5 000 W ± 10% AC Motor Running Speed: 5 000rpm Charging power input: 110-240V/50-60HZ Charging time: 8-12 hours Max speed: 45 ± 2 km/h Max range: About 55km Brake: front: oil drum brake, rear: disc brake Transmission: shaft drive transmission Wheel size: Front: 25 * 8.5 - 12 , Rear: 25 * 10 - 12 Max climbing capacity : 40 degrees Front wheels track: 900mm Rear wheels track: 880mm Ma x load capacity: 180kgs Wheelbase: 11 8 0mm Ground clearance: 220mm Seat height: 900mm Ingress protection: IP66 Front & Reverse gearshift Aluminum wheel rim Color available: red, blue, black, yellow Package: Iron cage with carton outside Net weight: 263 kgs/ 580 lbs Gross weight: 2 75 kgs/ 605 lbs Carton size: 1 95 x 112 x 85 cm/1pc Container: 16 pcs/20', 32 pcs/40', 48 pcs/40 ’ HQ Product Pictures:
|
||||
|
Shpping and Payment terms:
1. Shipping: by express, by air or by sea according to your order quantity.
|
||||
|
|
||||
