Quick Details
-
Brand Name:
-
Topper
-
Model Number:
-
NEMA 56C
-
Frequency:
-
60HZ, 50-60HZ
-
Frame:
-
56C
-
Endosure:
-
ODP,TEFC
-
IP Class:
-
IP23
-
Material:
-
Rolled Steel
-
Insulation Class:
-
F
-
Cooling method:
-
IC411
-
Rated Speed:
-
1400~3650 R/min
-
Color:
-
Customers' Request
-
Poles:
-
2P/4P
Quick Details
-
AC Voltage:
-
115/230
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Topper
-
Model Number:
-
NEMA 56C
-
Frequency:
-
60HZ, 50-60HZ
-
Frame:
-
56C
-
Endosure:
-
ODP,TEFC
-
IP Class:
-
IP23
-
Material:
-
Rolled Steel
-
Insulation Class:
-
F
-
Cooling method:
-
IC411
-
Rated Speed:
-
1400~3650 R/min
-
Color:
-
Customers' Request
-
Poles:
-
2P/4P
Products Description

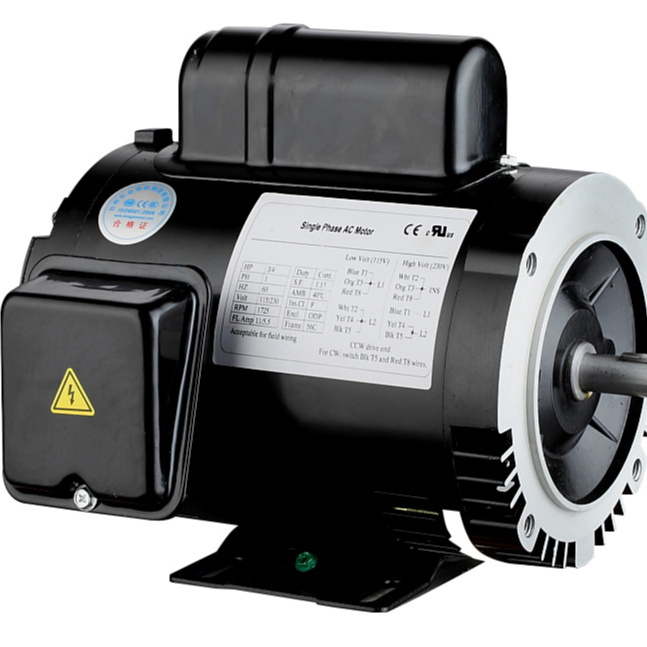

NEMA STANDARD INDUCTION MOTORS
NEMA standard motors are mainly used in the United States,Canada and Mexico.The working frequency of the motor is 60Hz,the working voltage of the three-phase motor is 230/460V,460V,575V,and the single-phase motor is 115/208-230V.The terminal box is generally fixed in the middle of the base.The motor has 3,6,9 and 12 lead wires,and the standard length of the lead wire is 6 inches(15.24cm)long from the base.The corresponding motor synchronous transmission speed is:2-pole motor 3600RPM,4-pole motor 1800RPM,6-pole motor 1200RPM.
Specification
|
Ambient temperature：
|
-15℃＜θ＜40℃
|
|
Altitude：
|
not exceeding 1000m
|
|
Rated voltage：
|
230/460V,460V,575V;115/208-230V
|
|
Rated frequency：
|
50Hz/60Hz
|
|
Insulation class：
|
B/F
|
|
Protection class：
|
IP22/23/24；IP54
|
