Quick Details
-
Number of Row:
-
Double row
-
Bore Size:
-
15 - 1000 mm
-
Place of Origin:
-
Shandong, China
-
Material:
-
Chrome Steel or Gcr15
-
Package:
-
Standard
-
Size:
-
15*42*18mm
-
Operating characteristics(OC):
-
high speed
-
Standard:
-
ISO3547
-
Market::
-
Global
-
Service:
-
OEM Customized Services
-
Hardness:
-
60-64
-
Related Model:
-
ASNU 15
Quick Details
-
Applicable Industries:
-
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction works , Energy & Mining
-
Precision Rating:
-
P0 P6 P5 P4 P2
-
Seals Type:
-
Open
-
Number of Row:
-
Double row
-
Bore Size:
-
15 - 1000 mm
-
Place of Origin:
-
Shandong, China
-
Material:
-
Chrome Steel or Gcr15
-
Package:
-
Standard
-
Size:
-
15*42*18mm
-
Operating characteristics(OC):
-
high speed
-
Standard:
-
ISO3547
-
Market::
-
Global
-
Service:
-
OEM Customized Services
-
Hardness:
-
60-64
-
Related Model:
-
ASNU 15

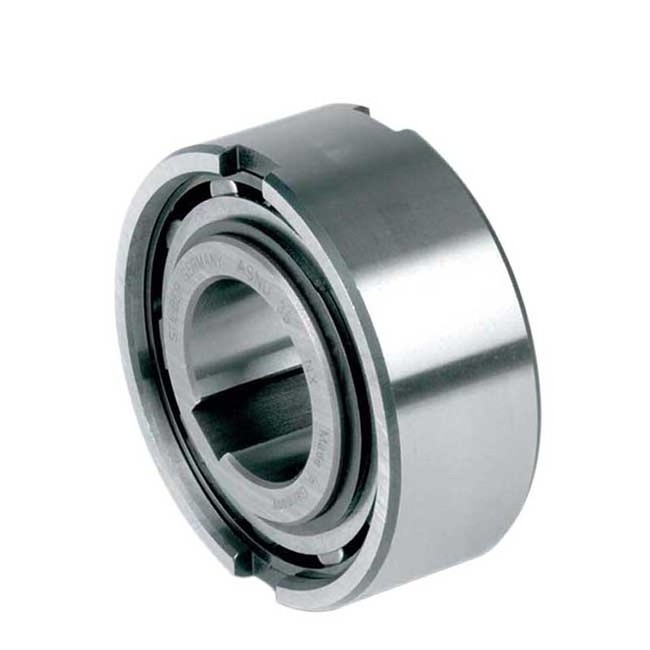

One way clutch bearing ASNU Description
Type ASNU is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outer diameter is the same as a series 63...Ball bearing.
A typical arrangement is to install this type alongside a bearing within the same location tolerances, as shown on the following page. The inner race is keyed to the shaft.
The outer race has positive n6 tolerance, to give a press fit in a H7 housing. Additional side notches in the outer race provide for positive torque transmission.
If the housing is to K6 tolerance, use of the notches is not necessary, but the housing must be strong enough to not expand after assembly. This design can accept an axial misalignment of inner and uter race of ± S/2.
One way clutch bearing ASNU relative series
| Model |
Bore dia (mm) |
Outer dia (mm) |
Width (mm) |
Weight (Kg) |
| ASNU8 | 8 | 35 | 13 | 0.07 |
| ASNU12 | 12 | 35 | 13 | 0.06 |
| ASNU15 | 15 | 42 | 18 | 0.11 |
| ASNU17 | 17 | 47 | 19 | 0.15 |
| ASNU20 | 20 | 52 | 21 | 0.19 |
| ASNU25 | 25 | 62 | 24 | 0.38 |
| ASNU30 | 30 | 72 | 27 | 0.54 |
| ASNU35 | 35 | 80 | 31 | 0.74 |
| ASNU40 | 40 | 90 | 33 | 0.92 |
| ASNU45 | 45 | 100 | 36 | 1.31 |
| ASNU50 | 50 | 110 | 40 | 1.74 |
| ASNU60 | 60 | 130 | 46 | 2.77 |
| ASNU70 | 70 | 150 | 51 | 4.16 |
| ASNU80 | 80 | 170 | 58 | 6.09 |
| ASNU90 | 90 | 190 | 64 | 8.2 |
| ASNU100 | 100 | 215 | 73 | 12.6 |
| ASNU120 | 120 | 260 | 86 | 22 |
| ASNU150 | 150 | 320 | 108 | 42 |
| ASNU200 | 200 | 420 | 138 | 93 |
