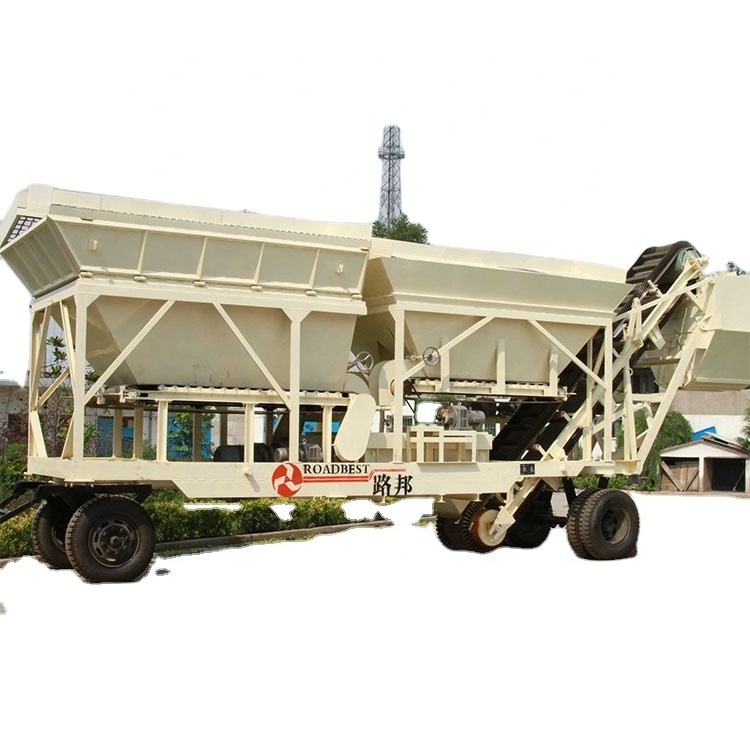

Roadbest asphalt mixing plant mobile 120 t/h portable asphalt plant for sale

Roadbest asphalt mixing plant mobile 120 t/h portable asphalt plant for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $160000

≥2 Sets

US $140000

≥3 Sets

US $100000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Power:: 285kW

Dimension(L*W*H):: 40000mm*35000mm*12000mm

Weight:: 110000 kg

Product name:: 80tph LB1000 Asphalt Mixing Plant

Type:: Batch Asphalt Mixing Plant

Color:: Client's Customized

Burner:: oil/coal/gas

Weighing system:: METTLER TOLEDO

Control system:: PLC+computer, SIEMENS, Schneideir, German

Operation:: Automatic+Semi-automatic+Manual

Mixer capacity:: 1000kg/batch

Dedusting System:: Primary gravity dust collector+Secondary bag dust collector

Feature:: Stable Performance, Enery-saving, Environmental-friendly

Quick Details

Place of Origin:: Shaanxi, China

Brand Name:: Roadbest

Voltage:: 220V/380V-50Hz

Power:: 285kW

Dimension(L*W*H):: 40000mm*35000mm*12000mm

Weight:: 110000 kg

Product name:: 80tph LB1000 Asphalt Mixing Plant

Type:: Batch Asphalt Mixing Plant

Color:: Client's Customized

Burner:: oil/coal/gas

Weighing system:: METTLER TOLEDO

Control system:: PLC+computer, SIEMENS, Schneideir, German

Operation:: Automatic+Semi-automatic+Manual

Mixer capacity:: 1000kg/batch

Dedusting System:: Primary gravity dust collector+Secondary bag dust collector

Feature:: Stable Performance, Enery-saving, Environmental-friendly

Products Description

Roadbest Manufacturer LB1000 Asphalt Plant Batching 80t/h China Mix Asphalt Plant for Sale

This is our 80t/h LB1000 Asphalt mixing plant for road construction to ensure fully and evenly asphalt mixing. Our bitumen concrete mixing equipment is characterized by integrated system structure, fast transportation, and convenient installation. LB1000 asphalt mixer meets the national standards to cover the usage of highway construction, ranging from rural road to municipal road as well as high standard expressway.

The basic configuration of LB1000 is made up of the following systems:
- S teady cold feeding system with variable-frequency control;
- Durable drying roller with 10mm steal boiler plate;
- Full-scale Burner system with various fuel type;
- Stable hot aggregate elevator;
- Effective Dual dedusting system to comply with environmental regulations;
- Compact mixing tower including vibrating screen, precise calibrating system, hot aggregate silo and mixing pot;
- Uniform and continuous powder feeding system;
- Smart PLC control system with automatic and manual control system;
- World famous brand pneumatic system with air compressor, centrifugal blower and induced draught fan.

Product Paramenters

Model	LB 1000
Rated Capacity	80 (t/h)
Mixer Capacity	1000kg/batch
Gross installed capacity	285kW
Number of screen layers	4 (size-customizable)
Fuel	Diesel, Heavy Oil, Fuel Oil, Natural Gas, Coal
Measuring Precision (%)	Aggregate: ±0.5% , Powder: ±0.3% , Asphalt : ±0.2%
Temperature control precision	±5℃
Dedusting Efficiency	>95%
Operating System	Automatic/Manual
Distributing Device	Length x width（m）	2 x 3.2
Distributing Device		Bucket capacity （m ³ ）	7
Aggregate Belt Machine	Width（mm）	600
Aggregate Belt Machine		Power （kw）	4.5
Vibrating Screen	Width（mm）	4 x 2.3
Vibrating Screen		Power （kw）	7.5
Drying cylinder	Diameter x length（m）	1.5 x 6.5
Drying cylinder		Power （kw）	22
Mixing Pan	Capacity（kg）	1000
Mixing Pan		Power （kw）	37
Weighing Hopper Capacity	Aggregate (kg)	1000
		Powder (kg)	200
		Asphalt (kg)	150
Standard conditions：（please indicate special conditions at ordering）	1. Sand moisture content ≤5%
		2. Altitude： sea level
		3. Environmental temperature： -20 ℃ +40℃
		4. Fuel： 10330 kcal/kg （45.2 MJ/kg）
		5. Outlet temperature ： 160℃

Equipment Characteristics

Drying System

Efficiency : Special blades of the asphalt burner ensure maximum heat exchange rate between aggregates and flame.

Adaptability & customization : diesel, heavy oil, fuel oil, coal, natural gas are allowed; Adapted with any harsh working conditions.

Easy Maintenance : asphalt burner adopts track installation.

Precise calibration : Advanced infrared temperature measurement and control system.

Long Service Lifetime : Replaceable weary plates are installed.

Dust collection system

Fully-Functional : Specially-designed primary gravity dust collector and secondary bag dust collector
Durable : The dedusting system adopts NOMEX filter bags which have high resistance to heat.
Standardization : With the large and effective operation area, the intelligent system can meet the national standard requirements
of environmental protection.
Recycling : The spiral conveyer and powder hoisting machine convey the collected dust into the powder recovery tank for reuse to
achieve recycled asphalt feature.

Mixing Tower

Efficient vibrating screen : 5 customized layers with durable and stable performance.

Precise weighing system : High-precision sensors with asphalt overload protective device.

Evenly and speedy asphalt-mixer : Paddle agitator with the optimal length and width ration can achieve 3D movement of mixed materials.

Long service life : high hardness weary lining plate and impeller head made of high chromium cast iron can reach more than 100k tons of service life for higher wear-resistance.

Powder Feeding System

Smooth & Reliability : The specially-designed powder spiral can convey the new powder and recycled powder directly from powder tank to powder weighing hopper. Professionally-designed rotary valve and tank cone pneumatic cleaning device ensure the uniform and continuous feeding.

Intelligent Central Control System

Stability & Convenience : PLC can achieve automatic, semi-automatic and manual control of weighing, mixing, feeding, transportation

and switches of operation. Users can see the data dynamically and print it out.

Safe & Reliability : The internationally advanced control system adopts world's renowned electrical components, PLC, computer and etc.
