Quick Details
-
Brand Name:
-
Zhongtuo
-
Power:
-
13000
-
Weight:
-
3000 kg
-
Cutting material:
-
galvanized steel
-
Control system:
-
PLC(imported Brand)
-
Machine Type:
-
roll forming machine
-
Roller material:
-
GCr15
-
Cutting blade material:
-
Cr12Mov Mold Steel
-
Forming Speed:
-
40m/min
-
Operate style:
-
touched screen
-
shaft diameter:
-
60mm
-
Shaft material:
-
45# High Grade Steel
-
Feature:
-
High Production Speed
Quick Details
-
Marketing Type:
-
New Product 2023
-
Production Capacity:
-
40m/min
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Zhongtuo
-
Power:
-
13000
-
Weight:
-
3000 kg
-
Cutting material:
-
galvanized steel
-
Control system:
-
PLC(imported Brand)
-
Machine Type:
-
roll forming machine
-
Roller material:
-
GCr15
-
Cutting blade material:
-
Cr12Mov Mold Steel
-
Forming Speed:
-
40m/min
-
Operate style:
-
touched screen
-
shaft diameter:
-
60mm
-
Shaft material:
-
45# High Grade Steel
-
Feature:
-
High Production Speed

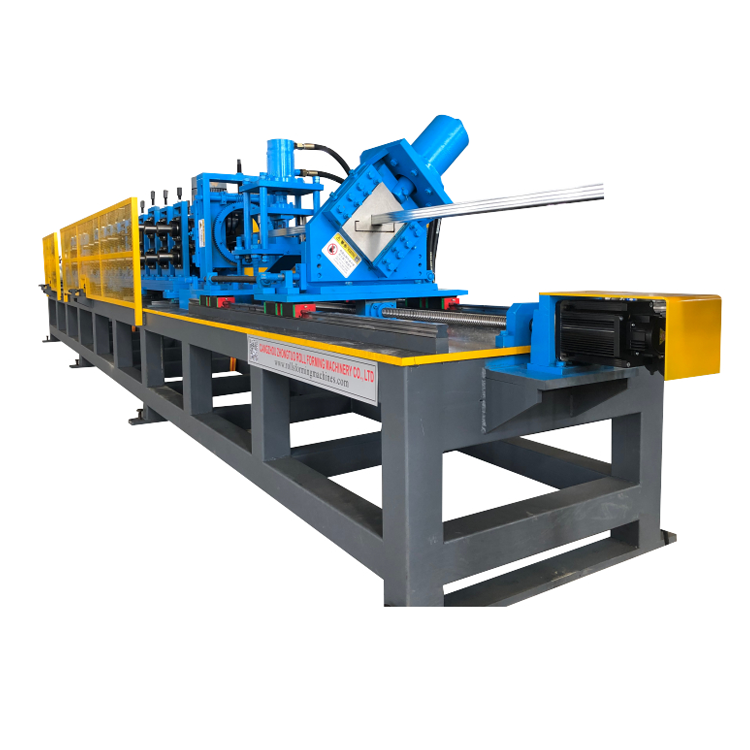

High Speed Metal Stud Forming Machine CD And UD Light Gauge Steel Framing Machine
Profile drawing for reference:
Processing Flow
The work flow for roll forming machine
|
Series
|
Details
|
Parameter
|
Comment
|
|
Material
|
Raw material
|
Steel
|
Customer confirmed
|
|
|
Material thickness
|
0.4-0.6 mm
|
|
|
Decoiler
|
Structure
|
Manual passive type
|
The standard one to match the production line
|
|
|
|
Single head type
|
|
|
|
Loading capacity
|
1.5 Tons
|
|
|
|
Coil inner diameter
|
450-550 mm
|
|
|
|
Guiding device
|
Placed on the machine by seller
|
|
|
|
Rolling shaft material
|
45# STEEL
|
|
|
|
Shaft diameter
|
40 mm
|
|
|
|
Roller material
|
GB-Cr12
|
|
|
|
Rolling station
|
15 stations
|
|
|
|
Work speed
|
40 m/min
|
|
|
|
Machine structure
|
Vertical memorial arch frame
|
|
|
|
Machine basic frame
|
Steel plate welded
|
|
|
|
Bearing
|
Roller bearing
|
Famous brand of Harbin
|
|
|
Work power
|
7.5 kw *2
|
|
|
|
Transmission
|
By gear
|
With cover
|
|
|
Safety cover
|
available
|
|
|
|
Appearance
|
Good appearance with no burrs in steel body nor traces of rust or defects in painting.
Good electrical and hydraulic cable organization Car painting make the machine more glossy |
We confirm each detail can match the standard, ensure the machine is 100% new!
|
Roll forming machine-1
Roll forming machine-2
1.5T decoiler
PLC control station
Hydraulic oil pump with cooling system
Product collect table
Afer-Sale Service
1. Payment: 30%T/T in advance and 70%balance after testing and before shipment.
Support 100% L/C payment method.
2. Delivery: Max.45 working days after the deposit.
3. Validity time: 30 days since the quote date.
4. After-sales service
A: Warranty: One year ,and we will provide the technical support for the whole life.some spare parts are available.
B: Training: the buyer should charge of visa, round-trip ticket, food and accommodation
overseas and USD80/person/day for salary.
C. The advantage of my factory: we have a team of skilled engineers and one group for after-sale service.
