Quick Details
-
Dimension(L*W*H):
-
140-305mm
-
Weight:
-
5600 KG, 5600kg
-
Drilling Diameter:
-
140-254mm, 140-305mm
-
Drilling Depth:
-
Max.260m
-
Max. Depth of Drilling:
-
260m
-
Feed Stroke:
-
3.4m
-
Supporting Drilling Rod:
-
76, 89,102
-
Outer Dimension:
-
4000x1800x2350mm
-
Air Consumption:
-
15-31m3/min
-
Power:
-
70KW/2200rpm
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
jialongli
-
Voltage:
-
/
-
Dimension(L*W*H):
-
140-305mm
-
Weight:
-
5600 KG, 5600kg
-
Drilling Diameter:
-
140-254mm, 140-305mm
-
Drilling Depth:
-
Max.260m
-
Max. Depth of Drilling:
-
260m
-
Feed Stroke:
-
3.4m
-
Supporting Drilling Rod:
-
76, 89,102
-
Outer Dimension:
-
4000x1800x2350mm
-
Air Consumption:
-
15-31m3/min
-
Power:
-
70KW/2200rpm
-
After-sales Service Provided:
-
Online support
-
Certification:
-
CE ISO
Product Description

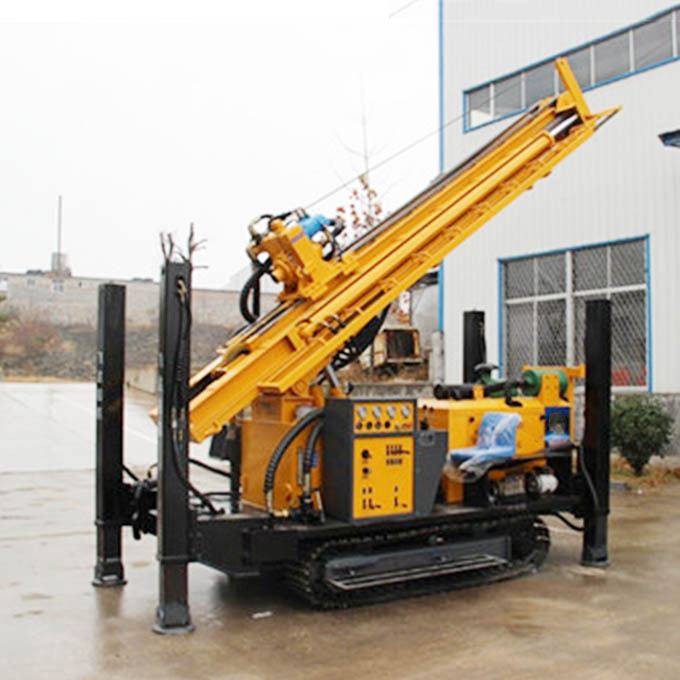

JL-260
water well drill rig the drilling diameter is
140-305mm
and the drilling depth can reach to
260
meters.
JL-260
can meet most of the farming or construction water well requirement, besides, it has a small size, light weight, flexible movement, convenient transportation, etc.
Specification
|
Model
|
JL260
|
|
Drilling Hole Diameter
|
Φ140--305mm
|
|
Drilling Depth
|
260m
|
|
One-time advance length
|
17-31m³/min
|
|
Working pressure
|
17-30bar
|
|
Air consumption
|
15-31m³/min
|
|
Drilling pipe length
|
1.5m 2m 3m
|
|
Drill pipe diameter
|
Φ76 ,φ89,Φ102mm
|
|
The engine brand
|
Cummis
|
|
Equipped capacitor
|
70KW
|
|
Walking speed
|
0-2.5 Km/h
|
|
The weight
|
5600kg
|
|
Dimension
|
4000*1750*2450mm
|
|
Use
|
Complicated geological conditions:
Rock, mud, sand etc.
|
|
Drilling mode
|
Superior hydraulic rotation and propulsion
DTH drilling or mud pumping
|
|
Equipped with Hammer
|
6", 7",8" Medium and high wind pressure series
|
|
After-sales Service Provided
|
Online support
|
|
Certification
|
CE ISO
|
