Port Size:
1/2" NPT Feamle thread (1/2" Barbed Hose Adaptors Also Included)
Liquid:
140°F [60 °C] Max
Self-priming:
6feet [about 1.8M]
Max pressure：
70psi
Run Dry:
Yes (within 30 second)
Motor:
Permanent Magnet, Intermittent
Duty Protection:
Automatic Restart
Volts:
12/24 VDC motors standard
Approved Certificate:
CE and RoHS
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
Singflo
-
Model Number:
-
HY-55701T
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
240W
-
Outlet Size:
-
1/2'' hose barb
-
Power:
-
240W
-
motor:
-
Brush
-
Type:
-
Car Washer
-
Commodity:
-

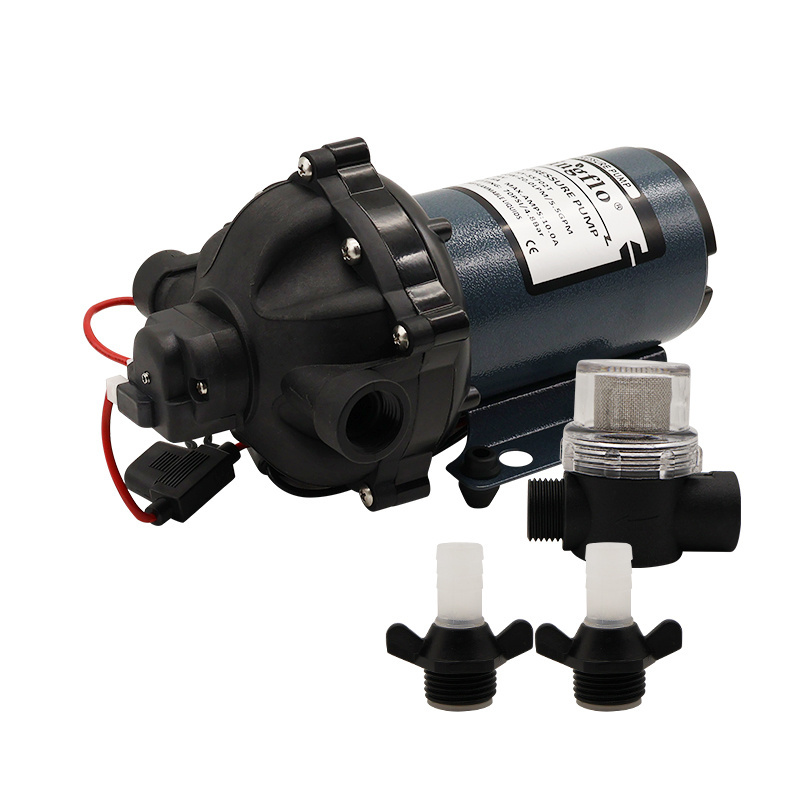

Singflo 70Psi 20 LPM High Pressure Water Jet Pump For Car Wash
-
Brand:
-
Singflo
-
Flow:
-
20 L/Min
-
Duty Cycle:
-
working intermittent
-
Liquid Temperature:
-
0-60 centigrade
-
Volt::
-
DC12/24
-
Product Name:
-
wash down pump
Quick Details
-
Application:
-
Food and Beverage Industry, Irrigation and Agriculture, Washing and Cleaning, Water Distribution
-
Pressure:
-
Low Pressure
-
Voltage:
-
12V 24V
-
Warranty:
-
1 years
-
Brand Name:
-
Singflo
-
Model Number:
-
HY-55701T
-
Place of Origin:
-
Fujian, China
-
Horsepower:
-
240W
-
Outlet Size:
-
1/2'' hose barb
-
Power:
-
240W
-
motor:
-
Brush
-
Type:
-
Car Washer
-
Commodity:
-
Singflo 70Psi 20 LPM High Pressure Water Jet Pump For Car Wash
-
Brand:
-
Singflo
-
Flow:
-
20 L/Min
-
Duty Cycle:
-
working intermittent
-
Liquid Temperature:
-
0-60 centigrade
-
Volt::
-
DC12/24
-
Product Name:
-
wash down pump
Products Description
Feature:
Type:
5 Chamber Diaphragm
|
Model
|
Volt
|
Flow
|
PSI/BAR
|
Amp.Draw
(A)
|
Max.Draw
(A)
|
Ports
|
N.W./G.W
|
|
|
|
(LPM/GPM)
|
|
|
|
|
|
|
HY-30601T
|
12
|
11.5/3.0
|
60/4.1
|
6
|
10
|
1/2"-14FNPT
|
2.9/3.1
|
|
HY-30602T
|
24
|
11.5/3.0
|
60/4.1
|
3.5
|
5.5
|
1/2"-14FNPT
|
2.9/3.1
|
|
HY-40601T
|
12
|
15.0/4.0
|
60/4.1
|
7
|
13
|
1/2"-14FNPT
|
2.9/3.1
|
|
HY-40602T
|
24
|
15.0/4.0
|
60/4.1
|
4
|
7
|
1/2"-14FNPT
|
2.9/3.1
|
|
HY-55601T
|
12
|
20.8/5.5
|
60/4.1
|
8
|
17.5
|
1/2"-14FNPT
|
2.9/3.1
|
|
HY-55602T
|
24
|
20.8/5.5
|
60/4.1
|
5
|
10
|
1/2"-14FNPT
|
2.9/3.1
|
|
HY-55701T
|
12
|
20.8/5.5
|
70/4.8
|
8
|
17.5
|
1/2"-14FNPT
|
2.9/3.1
|
|
HY-55702T
|
24
|
20.8/5.5
|
70/4.8
|
5
|
10
|
1/2"-14FNPT
|
2.9/3.1
|
