Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BEC Laser
-
Dimension(L*W*H):
-
79*56*90cm
-
Weight (KG):
-
85 KG
-
Core Components:
-
Laser source
-
Product name:
-
Laser Engraving Cutting Machine
-
Laser power:
-
60W/80W/100W
-
After-sales Service Provided:
-
Online Support
-
Laser source:
-
IPG Raycus Max JPT
-
Engraving materials:
-
Aluminum Oxide
-
Cooling system:
-
Air Cooling System
-
Working area:
-
110*110mm /175*175mm/ 200*200mm
-
Power supply:
-
220V/50HZ 110V/60HZ
Quick Details
-
Engraving Area:
-
150mm*150mm
-
Laser Type:
-
Fiber Laser
-
Engraving Speed:
-
0-500mm/s
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BEC Laser
-
Dimension(L*W*H):
-
79*56*90cm
-
Weight (KG):
-
85 KG
-
Core Components:
-
Laser source
-
Product name:
-
Laser Engraving Cutting Machine
-
Laser power:
-
60W/80W/100W
-
After-sales Service Provided:
-
Online Support
-
Laser source:
-
IPG Raycus Max JPT
-
Engraving materials:
-
Aluminum Oxide
-
Cooling system:
-
Air Cooling System
-
Working area:
-
110*110mm /175*175mm/ 200*200mm
-
Power supply:
-
220V/50HZ 110V/60HZ
PRODUCT INTRODUCTION

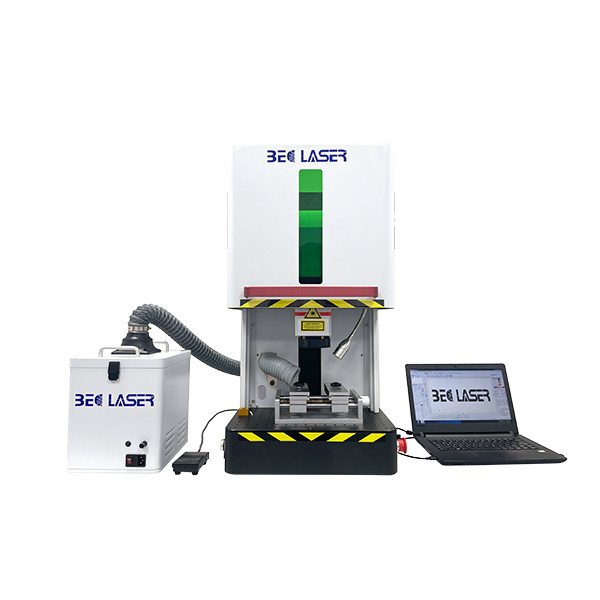

The enclosed laser marking system has safety enclosure. and it is available in both class 1 (closed version) and class 4 (open version) featured, using high quality components which is ideal for marking & engraving & cutting the metal jewelry products. lt has motorized z axis,easy to operate.
FEATURES
1, Fully Enclosed Compact System: Small-sized with safety cover and sensor door.
2. Electric Z Axis: Equipped with a motorized Z-axis to precise and comfortable setting of the marking distance for different part formats.
3. Easy Focus System: Double red dot focusing system allows user to find the correct focus quickly and set the optima marking distance for different objects easily.
APPLICATION
Ability to mark a range of metals and some non-metals materials.such as permanently mark logos,bar codes. OR codes, serial numbers and the high laser power also can engrave on metal products and cut thin metal sheet as well.
