Quick Details
-
Brand Name:
-
OEM
-
Products Name:
-
FBT Coupler
-
Material:
-
ABS;PVC
-
Color:
-
OEM
-
Design:
-
OEM & ODM
-
Free Sample:
-
Yes
-
No. of Fiber:
-
4.
-
Use:
-
FTTH
Quick Details
-
Type:
-
Fiber Pigtails
-
Model Number:
-
FTB-13
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
OEM
-
Products Name:
-
FBT Coupler
-
Material:
-
ABS;PVC
-
Color:
-
OEM
-
Design:
-
OEM & ODM
-
Free Sample:
-
Yes
-
No. of Fiber:
-
4.
-
Use:
-
FTTH

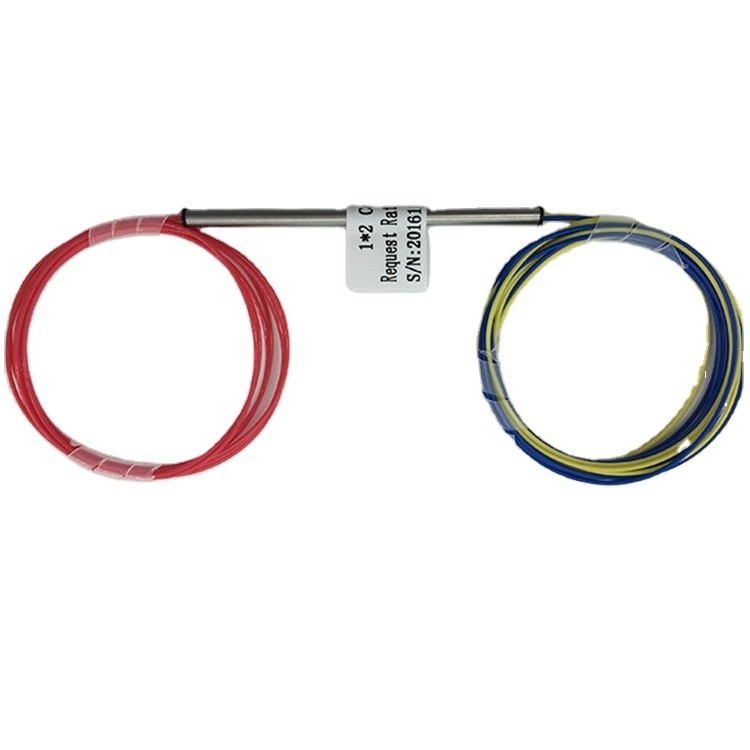

Optical communication module ftb splitter steel tube 1x2 fiber optic FBT coupler for CATV system
1.Description
1.Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused technology.
2.It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3.Sunet provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE.
2.Specfication
| Parameter | Specfication | |
| Channel Number | 1×2 or 2×2 | |
| Operration Wavelength(nm) | 1310,1550,1310/1550,1310/1550/1490 | |
| Operration Bandwidth(nm) | ±40 | |
| Coupling Ratio | Coupling Ratio Insertion Loss(dB) | |
| P Grade | A Grade | |
| 50/50 | ≤3.3 | ≤3.5 |
| 40/60 | ≤4.5/2.6 | ≤4.7/2.8 |
| 30/70 | ≤5.7/1.9 | ≤5.9/2.1 |
| 20/80 | ≤7.6/1.3 | ≤7.75/1.38 |
| 0/90 | ≤10.85/0.68 | ≤11.2/0.75 |
| 5/95 | ≤14.4/0.45 | ≤15.5/0.48 |
| 2/98 | ≤18.5/0.6 | ≤19.8/0.38 |
| 1/99 | ≤21.8/0.28 | ≤22.8/0.35 |
| PDL(dB) | ≤0.15 | ≤0.2 |
| Directivity(dB) | ≥50 | |
| Return Loss(dB) | ≥55 | |
| Parameter | Specfication | ||||||||
| O.W | nm | Sing Window1 Dual,Three Windows | |||||||
| (1×N) | N=3 | N=4 | N=5 | N=8 | N=16 | N=24 | N=32 | N=64 | |
| Fiber Type | Corning SMF-28e | ||||||||
| IL(MAX) | dB | 5.41/5.62 | 7.01/7.22 | 7.81/8.02 | 10.01/10.42 | 13.51/13.92 | 15.01/15.42 | 17.31/17.52 | 21.01/21.52 |
| Uniformity | dB | 0.51/0.62 | 0.51/0.62 | 0.61/0.82 | 0.81/1.02 | 1.11/1.32 | 1.21/1.52 | 1.31/1.52 | 2.11/2.52 |
| Return Loss | dB | ≥55 | |||||||
| Directivity | dB | ≥55 | |||||||
| PDL | dB | <0.20 | <0.20 | <0.30 | <0.30 | <0.40 | <0.50 | <0.50 | <0.50 |
3.Application
1)Long-haul Telecommunications
2)CATV Systems & Fiber Optic Sensors
3)Local Area Network
4.Feature
1)Low Excess loss
2)Low PDL
3)Environmentally stable
4)Good Thermal Stability
