Quick Details
-
Weight:
-
250 kg
-
Dimension(L*W*H):
-
custom
-
Product Name:
-
Pneumatic Material Handling Equipment For Automotive Assembly
-
Application:
-
Industrial Filed
-
Usage:
-
Handling Material
-
Material:
-
metal,steel
-
MOQ:
-
1 Set
-
COLOR:
-
customized
-
Max loading:
-
650kg
-
Lifting height:
-
1500mm
-
Power supply:
-
air
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Tongli
-
Weight:
-
250 kg
-
Dimension(L*W*H):
-
custom
-
Product Name:
-
Pneumatic Material Handling Equipment For Automotive Assembly
-
Application:
-
Industrial Filed
-
Usage:
-
Handling Material
-
Material:
-
metal,steel
-
MOQ:
-
1 Set
-
COLOR:
-
customized
-
Max loading:
-
650kg
-
Lifting height:
-
1500mm
-
Power supply:
-
air
Product Description
Power Assisted Manipulator for Handling, Lifting, Stacking
The fixed power assisted manipulator is composed of rigid arm. When there is torsion resistance.
the power assisted manipulator is used, such as the workpiece is irregular or the workpiece needs to
be overturned tocomplete stacking, loading and unloading. The power assisted manipulator is easy,
safe and stable.

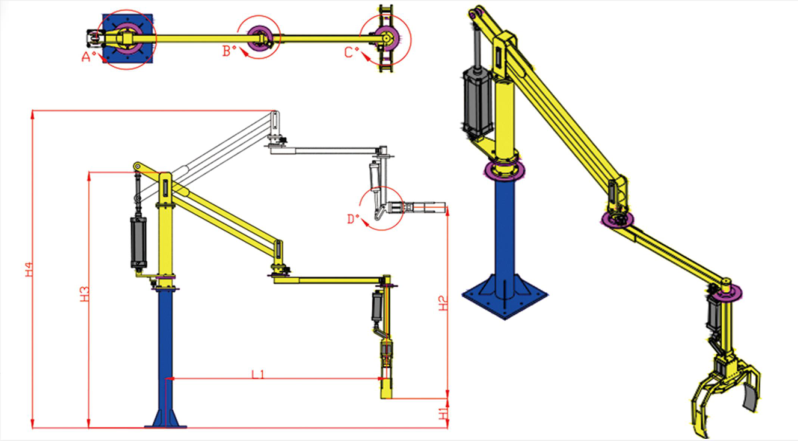

Main Parameter
|
Model
|
TLJXS-50
|
TLJXS-100
|
TLJXS-200
|
TLJXS-300
|
TLJXS-400
|
|
Load-Bearing
|
50KG
|
100KG
|
200KG
|
300KG
|
400KG
|
|
Working Radius L1
|
2500mm
|
2500mm
|
2500mm
|
2300mm
|
2300mm
|
|
Lifting Height H2
|
500-2000mm
|
500-2000mm
|
500-2000mm
|
500-2000mm
|
500-2000mm
|
|
Air Pressure
|
0.5-0.8Mpa
|
0.5-0.8Mpa
|
0.5-0.8Mpa
|
0.5-0.8Mpa
|
0.5-0.8Mpa
|
|
Rotation Angle A
|
330°
|
330°
|
330°
|
330°
|
330°
|
|
Rotation Angle B
|
300°
|
300°
|
300°
|
300°
|
300°
|
|
Rotation Angle C
|
360°
|
360°
|
360°
|
360°
|
360°
|
Product Type

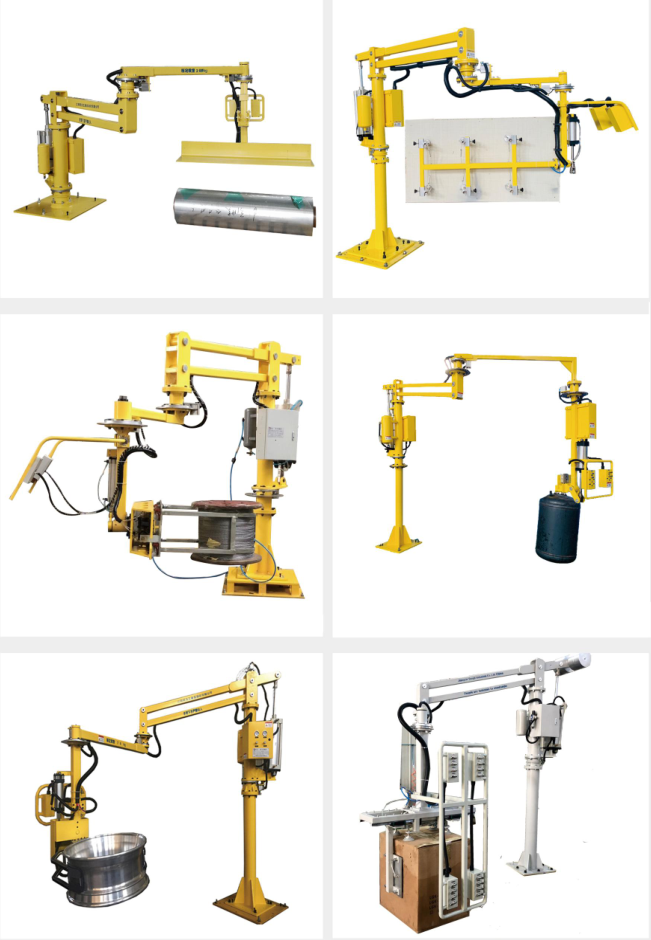

Our products are widely used in Glass Industry, Packaging, Paper and Printing Industry, Building Industry, Machinery Manufacturing, Foundry Industry, Chemical and Pharmaceutical Industries, Auto Parts Industry, Automotive Assembly and many other industries.
It can handle workpieces and products of various shapes and weights. For example, bags, carton boxes, chemical barrels, oil drums, large rolls of plastic rolls, glass, plates, air conditioners, condensers, compressors, metal castings, molds, sand cores, car tires, front wall, skylights, Dashboard, cylinder head, etc. The fixtures of each manipulator are specially designed and manufactured according to the customer's specific conditions.
