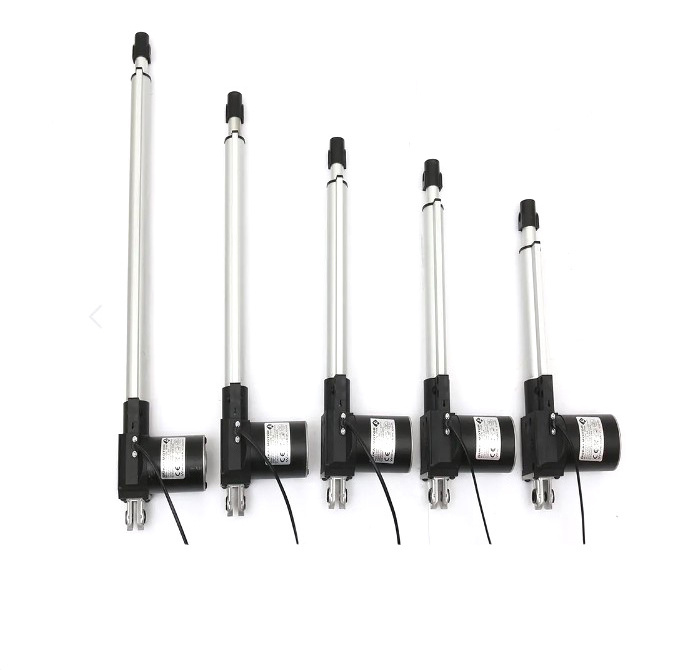

Electric push rod telescopic rod 12v 24 V high thrust linear stroke electric push rod motor lifter
| LINER ACTUATOR TECHNICAL PARAMETER | |||
| Product Name | Linear Actuator | Input voltage | 12/24VDC |
| Load capacity | Max6000N(push)/6000(pull) | Stroke | 50mm~600mm(Customized Stroke Available) |
| Free load speed | 30mm/s(500N) | Operation temperature | -26℃~+65℃ |
| Full load speed | 4mm/s(6000N) | Protection class | IP54 |
| Duty cycle |
20%(2 minutes continuous use in 8minutes
)
|
Limit switch | Built-in |
| Output Power | 60w | Noise level | <=50dB |
| Pot | Shanghai/Ningbo | Control mode | wired or wireless |
| Certificate | Minimum installation distance | stroke+175mm | |
Load Capacity and Speed performance:
linear actuator support several load and speed based on different worm gear ratio.
|
Dynamic Load Force |
6000N |
3000N |
1500N |
500N |
|
Static Load Force |
6000N |
3000N |
1500N |
500N |
|
Speed with Load |
5mm/s |
10mm/s |
20mm/s |
30mm/s |
|
Input Voltage |
12/24VDC |
|||
