Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Rock Fastener
-
Model Number:
-

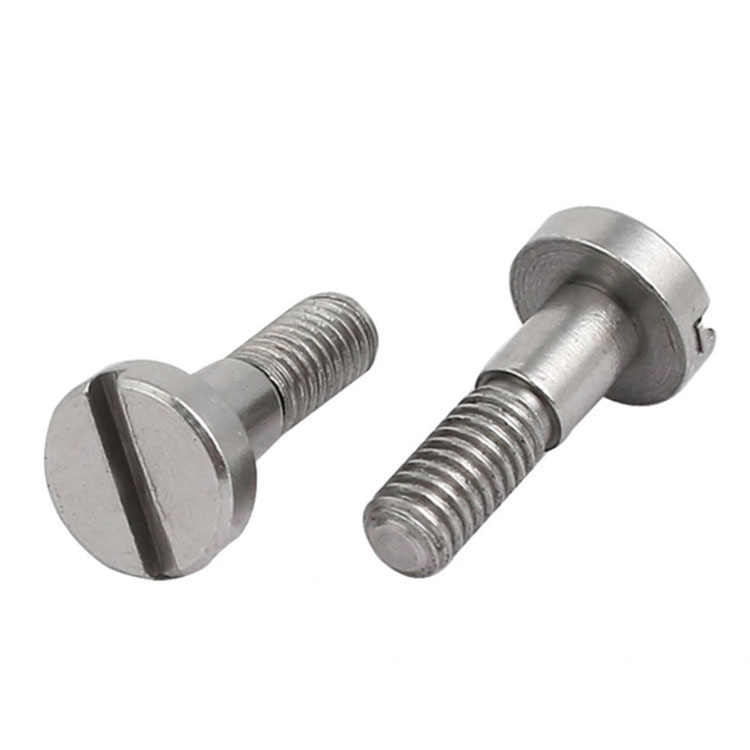

DIN605
-
Size:
-
M3-M10
-
Grade:
-
CLASS84.8, CLASS5.8
-
Surface treatment:
-
Zinc Plated, yellow zinc, Black Oxide, Nickel, Chrome, etc.
Quick Details
-
Finish:
-
Zinc Plated, yellow zinc, Black Oxide, Nickel, Chrome, etc.
-
Material:
-
Stainless steel, Steel
-
Measurement system:
-
INCH, Metric
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Rock Fastener
-
Model Number:
-
DIN605
-
Size:
-
M3-M10
-
Grade:
-
CLASS84.8, CLASS5.8
-
Surface treatment:
-
Zinc Plated, yellow zinc, Black Oxide, Nickel, Chrome, etc.
Jiaxing Rock Industry Imp & Exp Co., Ltd. We are a professional hardware parts OEM manufacturer, we mainly provide customized services, according to your drawings to produce the corresponding products, our price is very favorable, waiting for your inquiry.
|
Items |
Description |
Picture |
|
|
Material |
LOW carbon steel, Stainless Steel, brass |
|
|
|
Size |
M3-M10 |
||
|
Standard |
Din/ISO/ASME/JIS/BS |
||
|
Welcoming send us an inquiry with your dimensions.
We provide 24hours*7days service.
Click here for more information! |
| Thread d | M3 | (M3,5) | M4 | M5 | M6 | M8 | M10 | |
| P | 0,5 | 0,6 | 0,7 | 0,8 | 1 | 1,25 | 1,5 | |
| b | 4,5 | 5,5 | 6 | 7 | 9 | 11 | 13,5 | |
| dk | nominal = max. | 7 | 7,5 | 8,5 | 11 | 13 | 16 | 20 |
| min. | 6,78 | 7,28 | 8,28 | 10,73 | 12,73 | 15,73 | 19,67 | |
| ds (h9) | nominal = max. | 4 | 4,5 | 5,5 | 7 | 8 | 10 | 13 |
| min. | 3,97 | 4,47 | 5,47 | 6,964 | 7,964 | 9,964 | 12,957 | |
| f | approx. | 0,45 | 0,5 | 0,6 | 0,7 | 0,8 | 0,9 | 1,1 |
| k | nominal | 1,8 | 2 | 2,4 | 2,7 | 3,1 | 3,8 | 4,6 |
| max. | 1,92 | 2,12 | 2,52 | 2,82 | 3,25 | 3,95 | 4,75 | |
| min. | 1,68 | 1,88 | 2,28 | 2,58 | 2,95 | 3,65 | 4,45 | |
| n | nominal | 0,8 | 0,8 | 1 | 1,2 | 1,6 | 2 | 2,5 |
| max. | 0,86 | 0,86 | 1,06 | 1,26 | 1,66 | 2,06 | 2,56 | |
| min. | 1 | 1 | 1,2 | 1,51 | 1,91 | 2,31 | 2,81 | |
| r | max. | 0,1 | 0,1 | 0,2 | 0,2 | 0,25 | 0,4 | 0,4 |
| l | min. | 0,9 | 1 | 1,2 | 1,3 | 1,5 | 1,9 | 2,3 |
| max. | 1,15 | 1,3 | 1,5 | 1,6 | 1,9 | 2,4 | 2,8 | |
Process forging, strict control
High quality raw materials processing
High plasticity good fatigue resistance
