High quality dust cover, safe and environmentally friendly, can be connected to the vacuum cleaner device
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
500
-
Certification:
-
CE ISO
-
main shaft speed:
-
2200 Reven/min
-
Size of polishing wheelr:
-
diameter300mm*wide50-100mm*The inner hole25mm
-
Machining diameter:
-
2-80mm
-
Feed rate:
-
1-7M/branch
-
Polishing effect:
-
Frosting effect
-
Brushed Effect:
-
Polishing and grinding
-
Feed motor power:
-
0.75kw
-
Usage:
-
Surface Polishing/sanding/deburring
-
Polishing work piece material:
-
Steel, stainless steel, aluminum, copper iron and other metal sheet
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JUHUA
-
Power (kW):
-
4
-
Weight (KG):
-
500
-
Certification:
-
CE ISO
-
main shaft speed:
-
2200 Reven/min
-
Size of polishing wheelr:
-
diameter300mm*wide50-100mm*The inner hole25mm
-
Machining diameter:
-
2-80mm
-
Feed rate:
-
1-7M/branch
-
Polishing effect:
-
Frosting effect
-
Brushed Effect:
-
Polishing and grinding
-
Feed motor power:
-
0.75kw
-
Usage:
-
Surface Polishing/sanding/deburring
-
Polishing work piece material:
-
Steel, stainless steel, aluminum, copper iron and other metal sheet

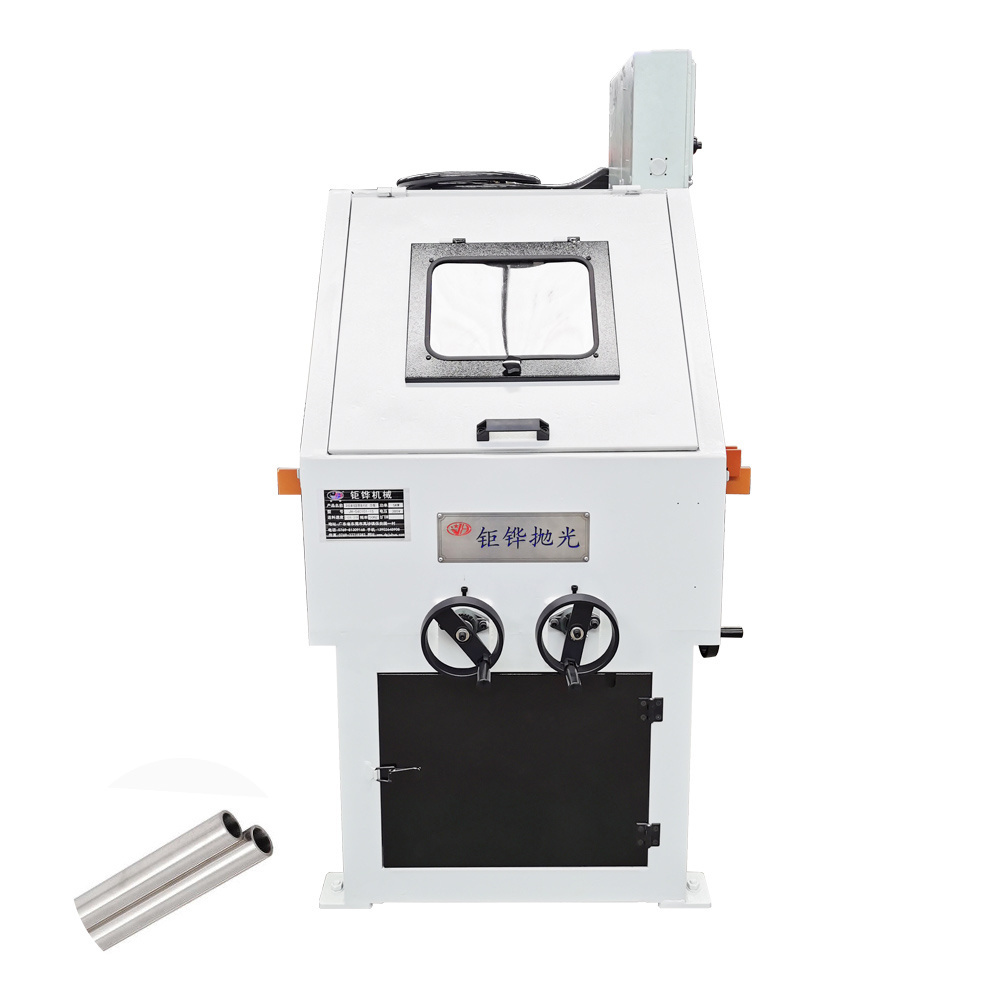

Single group environmental protection round pipe polishing machine
JH-04C101-A-FB
Machine features :
1. Mainly for all kinds of iron pipe (rod), aluminum pipe, copper iron, stainless steel pipe and other hardware surface polishing, sanding, polishing, wire drawing and other processing.
2. The product is transported through the feeding wheel, and polishing wheels of different thickness can be installed to complete the effect of coarse grinding to fine polishing on the surface at one time; The surface effect is uniform, fine, and easy to operate.
3. The distance between grinding wheels can be adjusted rapidly according to the different size of the product pipe diameter. The feeding speed can be adjusted according to the requirements of the product surface.
4. The main shaft 40 chrome material is treated by conditioning and grinding, and the main shaft adopts the original bearings imported from Japan NSK
5. The dust cover, sand belt grinding wheel and feeding rack can be selected according to requirements.
Dust protection cover
Internal structure of machine
The belt device is reinforced to make the grinding and polishing process more stable
Adjusting wheel
Freely adjust the thickness of the product, easy to operate
The equipment can be equipped with another feeding rack
Multiple pipes can be placed together and fed at the same time without manual operation
We Support FREE Testing Samples for Customers
About machine style, we have different machine style, if you have any other requirements, we also support, customize your own solutions
|
No
|
Item
|
Specification
|
|
1
|
Machine model
|
JH-04C101-FB
|
|
2
|
Total power of main motor
|
4KW
|
|
3
|
Machine size
|
800*1200*1400mm
|
|
4
|
Main shaft speed
|
2200Reven/min
|
|
5
|
Size of polishing wheel
|
diameter300mm*wide50-100mm*The inner hole25mm
|
|
6
|
Machining diameter
|
2-80mm
|
|
7
|
Feed rate
|
1-7M/branch
|
|
8
|
Feed motor power
|
0.75kw
|
|
9
|
Weight
|
500kg
|
How to use right consumables and polishing process to achieve the perfect finish？
1. Use the wire brushes to remove the scratches and naturally oxidized film on the surface of the aluminum profile
2. Use the cloth wheel or wool wheel to achieve mirror effect.
3. Use the brushing wheel to complete the hairline(brushed) effect.
Dongguan City Juhua Machinery Co., Ltd.
Dongguan City Juhua Machinery Co., Ltd., we are a surface treatment and polishing machinery manufacturing enterprise integrating innovative R&D, production and sales. The company is located in Dongguan City, the manufacturing capital of China, covering an area of more than 13,000 square meters and employing nearly 100 people.
It has been in development for
22 years
. It has
nearly 100 inventions and utility model patents
. It has been a high-tech enterprise for many years and has become a relatively large-scale manufacturer in the same industry in China. Its products include
intelligent polishing machines, automatic sanding machines, Automatic belt sanding and polishing machine.
Applicable industries include surface treatment of iron, copper, aluminum, stainless steel, titanium-magnesium alloy and other metal products in furniture, aviation, automobile, bathroom, new energy, architectural decoration, home appliances, kitchen utensils, electronics, luggage accessories, etc. And
can customize non-standard special polishing machine according to customer design
.
