Quick Details
-
Brand Name:
-
LEYU
-
Model Number:
-
SCP-75-12
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
5.4A
-
Application:
-
CCTV Camera
-
Certification:
-
CE ROHS
-
Warranty:
-
2 years
-
MOQ:
-
1 pc
-
OEM:
-
accept
-
Protections:
-
Short circuit / Overload / Over voltage / battery polarity protections
-
Color:
-
Silver
Quick Details
-
Input Voltage:
-
85~264VAC
-
Output Voltage:
-
13.8V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEYU
-
Model Number:
-
SCP-75-12
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
5.4A
-
Application:
-
CCTV Camera
-
Certification:
-
CE ROHS
-
Warranty:
-
2 years
-
MOQ:
-
1 pc
-
OEM:
-
accept
-
Protections:
-
Short circuit / Overload / Over voltage / battery polarity protections
-
Color:
-
Silver
Product Description
Specification
|
Model
|
|
SCP-75-12
|
|
SCP-75-24
|
|
|||||
|
output |
DC voltage
|
CH1:13.8V
|
CH1:13.4V
|
CH1:27.6V
|
CH2:26.5V
|
|||||
|
|
Voltage tolerance
|
±1%
|
-----
|
±1%
|
-----
|
|||||
|
|
Rated current
|
5A
|
0.5A
|
2.5A
|
0.3A
|
|||||
|
|
Current range
|
0~5A
|
-----
|
0~2.5A
|
-----
|
|||||
|
|
Rated power
|
75.7W
|
|
76.9W
|
|
|||||
|
|
Ripple&noise
|
120mvp-p
|
-----
|
180mvp-p
|
-----
|
|||||
|
|
DCvoltage ADJ.range
|
CH1:11.3~14.9V
|
|
CH1:21.3~29.8V
|
|
|||||
|
input |
Voltage range
|
90~264VAC,127~370VDC
|
|
|
|
|||||
|
|
frequency
|
47~63HZ
|
|
|
|
|||||
|
|
AC current
|
2.8A/115VAC,1.4A/230VAC
|
|
|
|
|||||
|
|
efficiency
|
81%
|
|
83%
|
|
|||||
|
|
Inrush current
|
Cold start current 30A/115VAC,50A/230VAC
|
|
|
|
|||||
|
|
Leakage current
|
< 1mA/240VAC
|
|
|
|
|||||
|
protection |
Over load
|
Rated output power110%~150% start over load protection
|
|
|
|
|||||
|
|
|
protection mode: AC charging mode:hiccup mode auto-recovery after fault condition is removed
|
|
|
|
|||||
|
|
Battery protection
At low voltage |
9.5~11V
|
|
20~22V
|
|
|||||
|
|
|
protection mode:cutoff output
|
|
|
|
|||||
|
Function
|
UPS introduction
|
long-term online floating charge to battery,high charging efficiency,
battery can saturate to more than 90% ,cauto-stop harging when it's full,prevent over charging. Effectively extend battery life, AC/battery auto switch,no switch time,no need human guard, cold-start ,when there is no AC input ,can use battery start UPS, Meet the user's emergency needs |
|
|
|
|||||
|
environment
|
Working temp,humidity
|
-10℃~+60℃,20%~90%RH
|
|
|
|
|||||
|
|
Storagetemp,humidity
|
-20℃~+85℃,10%~95%RH non-condensing
|
|
|
|
|||||
|
|
Withstand vibration
|
10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes
|
|
|
|
|||||
|
safety
|
Withstand voltage
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
|
|
|||||
|
|
Isolated resistance
|
I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
|
|
|
|
|||||
|
Fitstandard
|
Safety standard
|
Compliance to UL60950-1
|
|
|
|
|||||
|
|
EMC standard
|
Compliance to EN55022,CLASSB
|
|
|
|
|||||
|
others
|
Dimension
|
159*97*38mm (L*W*H)
|
|
|
|
|||||
|
|
Weight/packing
|
0.53kg/piece 40pcs/carton
|
|
|
|
|||||
|
note
|
1. All parameters NOT specially mentioned are measured
at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. |
|
|
|
|
|||||

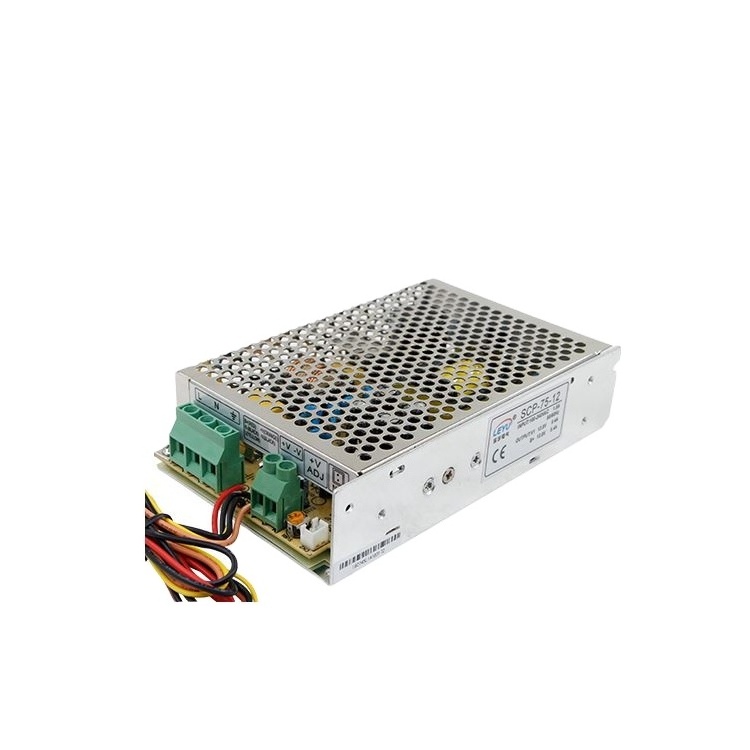

Details Images
