Quick Details
-
Voltage:
-
220V/380V/415V
-
Rated Capacity:
-
6.6KW
-
Dimensions:
-
4*30M
-
Use:
-
assembly Welding straightening Workpiece
-
Product name:
-
Cnc 3 in 1 h beam assembly assembly straightening production line
-
Welding speed:
-
150-1500 mm/min
-
Workpiece length:
-
4000-15000MM
-
H beam length:
-
2000-12000mm
-
After Warranty Service:
-
Video technical support
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Yomi
-
Weight (KG):
-
5000
-
Voltage:
-
220V/380V/415V
-
Rated Capacity:
-
6.6KW
-
Dimensions:
-
4*30M
-
Use:
-
assembly Welding straightening Workpiece
-
Product name:
-
Cnc 3 in 1 h beam assembly assembly straightening production line
-
Welding speed:
-
150-1500 mm/min
-
Workpiece length:
-
4000-15000MM
-
H beam length:
-
2000-12000mm
-
After Warranty Service:
-
Video technical support
Product Description

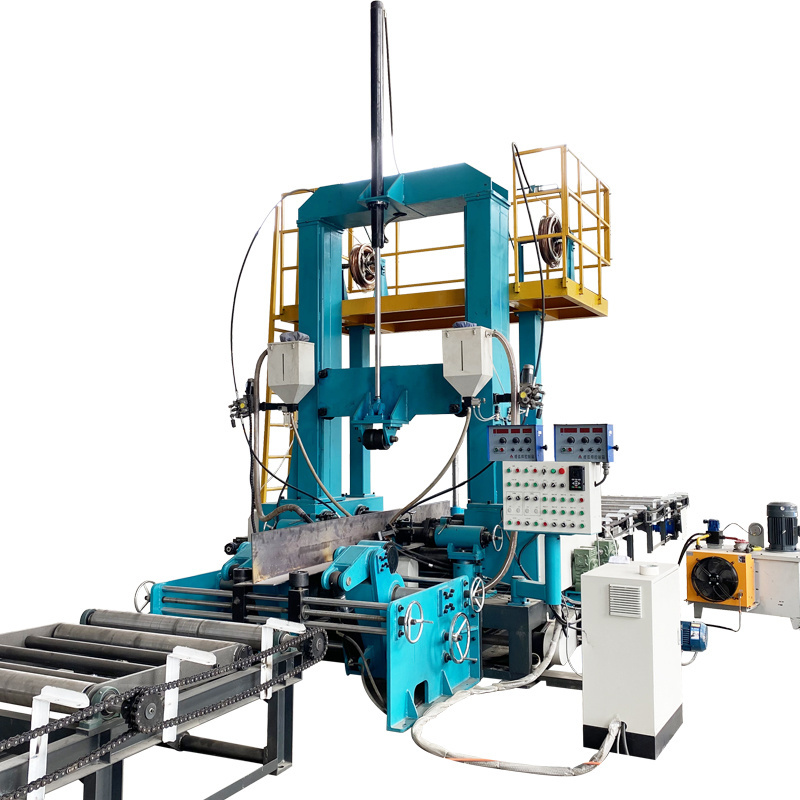

Cnc 3 in 1 h beam assembly assembly straightening Beam Making line
The machine is a special equipment for assembling, welding, and straightening H-shaped steel. It integrates the processes completed by the three machines of assembly machine, gantry welding and straightening machine into one machine, which significantly improves production efficiency ,reduced equipment costs, saved equipment installation space, the most efficient production equipment for H-beam and T-beam
Brief introduction
Adopting the parameterized man-machine interface, it is convenient to set the machining specifications and the setting of various technological parameters.
1. Significantly improved production efficiency
2. Increased output per unit squared
3, symmetrical welding, small deformation
4. Bus control, parameter adjustable, production data sharing.
Welding process:
Support a veriaty of welding type:
1.single arc single wire welding
2.single arc double wire welding
3.double arc double wire welding
4.submerged arc welding
Product Advantages
Advantages compare with traditional production line:
1. High efficiency:
- assembly, welding and straightening at the same time.
- It working speed 1.2-1.6m/min, traditional speed 600-800mm
- It can welding two seams once, while traditional only can welding one seam once.
2. Low cost ,1/3 price of the traditional beam production line.
3. Saving 2/3 of the workspace.
4. Only need 1-2 workers to operate, save labor.
Product Paramenters
|
NO.
|
Item
|
Technique data
|
|
1
|
Flange width
|
200-800mm
|
|
2
|
Flange thickness
|
6-25mm
|
|
3
|
Web height
|
200-1800mm
|
|
4
|
Web thickness
|
6-25mm
|
|
5
|
H beam length
|
2000-12000mm
|
|
6
|
Assembly and welding speed
|
400-1500mm/min
|
|
7
|
Main machine power
|
22.5kw
|
|
8
|
workpeice height
|
200-2000mm
|
|
9
|
workpeice length
|
4000-15000mm
|
|
10
|
welding speed
|
150-1500mm/min
|
Company Introduction
Related Products
Packing&Shipping
Sea-worthy package
plywood carton or nude package
FAQ
1. What kinds of after-sales service can your company supply?
One year's warranty for whole welding machine. We will send spare parts for free during warranty period. About main board, we can
supply life long service.
2. Can you supply OEM Service?
Yes, we can supply OEM service.
3.What is deliver time?
If there are welding machines at stock, we will delivery the goods within 3-7 work days after received payment.
5. What is your payment term?
We can accept T/T,Western Union,L/C,Aliexpress Escrow, Credit Card.
