Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OSKI
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
590*680*390MM
-
Weight:
-
55 kg
-
Marketing Type:
-
New Product 2022
-
Keyword:
-
tissue paper cutting machine
-
Key words:
-
paper roll to sheet cutting machine
-
Key word:
-
paper sheet cutting machine
-
Cutting thickness:
-
Can ba adjust
-
Function:
-
Aluminium Sheet Cutting
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Item:
-
Papper,PVC.PET,Aluminium cutting machine
-
Feeding speed:
-
700mm/s
-
Name:
-
Non Woven Fabric Roll Paper Cutte
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
80 m/min
-
Max. workable width:
-
1500mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OSKI
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
590*680*390MM
-
Weight:
-
55 kg
-
Marketing Type:
-
New Product 2022
-
Keyword:
-
tissue paper cutting machine
-
Key words:
-
paper roll to sheet cutting machine
-
Key word:
-
paper sheet cutting machine
-
Cutting thickness:
-
Can ba adjust
-
Function:
-
Aluminium Sheet Cutting
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
None
-
Item:
-
Papper,PVC.PET,Aluminium cutting machine
-
Feeding speed:
-
700mm/s
-
Name:
-
Non Woven Fabric Roll Paper Cutte
Product Description

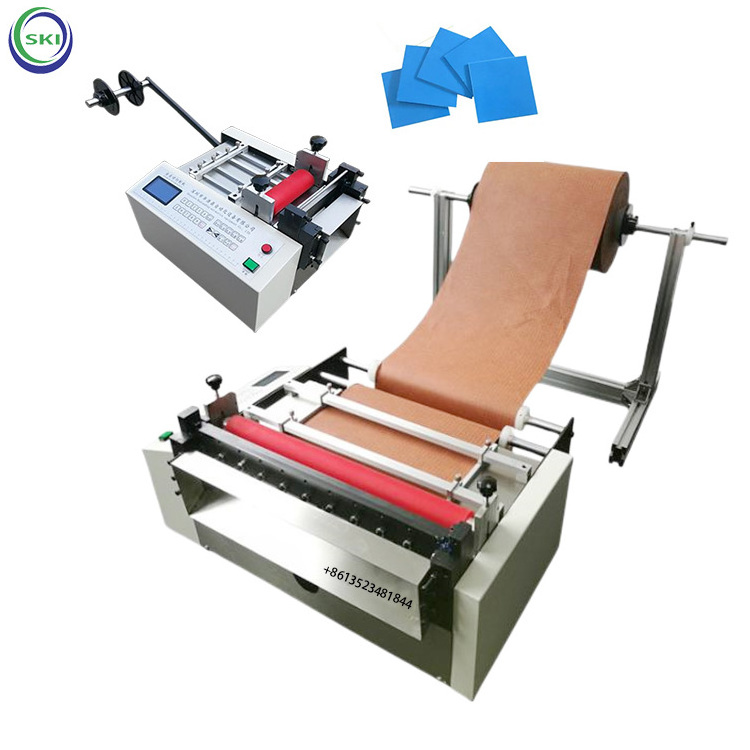

Thermal Paper Roll Cutting Machine Film Paper Cutting Machine Pvc Film CutterRoll To Sheet Cutter
1
. Simple operation panel Simple panel, simple operation, Chinese and English switching, LCD screen
2
. High-strength high-performance steel knife The special mechanical structure and thickened knives are equipped with special software control to solve the problem of uneven surface cut of other manufacturers. Achieve the flat section of the cut, the length is accurate
3
. Multi-function button Operating system, new upgrade of the operation panel! Feeding speed adjustable, total technology, segmented batch setting
4
. Rugged guide strip High-strength guide strips are not easy to wear, and colleagues can cut multiple materials, double the efficiency and save labor.
Specification
|
model
|
power supply
|
Knife width
|
Cutting speed
|
total power
|
Specification
|
weight
|
|
SK-D100D
|
220V/60Hz
|
0.1-100mm
|
34m/H
|
200W
|
420*350*390MM
|
30KG
|
|
SK-D100D
|
220V/60Hz
|
0.1-100mm
|
34m/H
|
200W
|
380*360*390MM
|
32KG
|
|
SK-D100S
|
220V/60Hz
|
0.1-100mm
|
34m/H
|
350W
|
380*450*390MM
|
38KG
|
|
SK-D200
|
220V/60Hz
|
0.1-200mm
|
34m/H
|
200W
|
380*460*390MM
|
40KG
|
|
SK-D300
|
220V/60Hz
|
0.1-300mm
|
34m/H
|
300W
|
590*580*390MM
|
50KG
|
|
SK-D400
|
220V/60Hz
|
0.1-400mm
|
34m/H
|
300W
|
590*680*390MM
|
55KG
|
|
SK-D500
|
220V/60Hz
|
0.1-500mm
|
34m/H
|
450W
|
320*830*500MM
|
110KG
|
|
SK-D600
|
220V/60Hz
|
0.1-600mm
|
34m/H
|
450W
|
620*930*500MM
|
120KG
|
|
SK-D700
|
220V/60Hz
|
0.1-700mm
|
34m/H
|
450W
|
620*1030*500MM
|
140KG
|
|
SK-D800
|
220V/60Hz
|
0.1-800mm
|
34m/H
|
650W
|
620*1130*500MM
|
160KG
|
|
SK-D1000
|
220V/60Hz
|
.01-1000mm
|
34m/H
|
850W
|
640*1330*540MM
|
250KG
|
|
SK-D1200
|
220V/60Hz
|
0.1-1200mm
|
80m/H
|
850W
|
640*1530*550MM
|
290KG
|
Detailed Image
Vertical bearing rack: floor-standing design, stable and sturdy, equipped with bearing material cone, labor-saving and durable, and can be used to place various material rolls
1. Chinese and English operating system: LCD display, one-key conversion between Chinese and English, simple panel, simple operation
2.Feeding rubber wheel: It is made of special rubber, which is wear-resistant, pressure-resistant and high-temperature resistant. Both ends are equipped with pressure regulating screws to effectively prevent the material from slipping.
3. Vacuum heat-treated steel knife: Use high-quality SKD11 high-speed steel knife with a special mechanical structure, the blade is sharp, durable, and ensures that the cut surface is flat and free of burrs
4. High-precision motor: computer control program accuracy can reach 0.1mm, fast feeding, strong power, high safety and long service life le goes here.
Machine details real shot
Packing & Delivery
Why Choose Us
|
Package
|
Machine will be packed in wooden case to make sure the machine is in perfect condition when you receive it.
|
|
Document
|
Professional team make the best shipping plan to save time and costs. We'll send you documents, like BL, PL, Invoice, CO etc.
|
|
After shipment
|
We have professional transportation team to make the best shipping plan for you, saving time and costs. After sail, we will send you all documents, like Bill of Loading, Packing list, Invoice, Certificate of Original.
|
|
After receiving
|
Normally the machines are already installed before delivery, after you receiving it, you can directly connect to the power supply and use it. We may also send you the manual and operating video to show you how to use it.
|
|
After-sales service
|
Received the machine,please feel free to contact us if you have any problem,we will solve the problem online at any time
|
Company&Certifications
Welcome to Zhengzhou Oski Machinery Co., Ltd.
Zhengzhou Oski Machinery Co., Ltd. is a factory with many years of production experience and good raw material supply, so the price is very competitive; In addition, all raw materials are 100% new, ensuring the overall quality and service life of the machine. Test the machine before leaving the factory to ensure the normal operation of the machine. Send spare parts to you for replacement to reduce the international transportation cost of customers later.
Workshop
FAQ
|
MOQ
|
Minimum order quantity is 1 set, More quantity more discount.
|
|
Machine Voltage
|
We can customize the voltage as your request. Like 110v/220v/380v/415v, 1 or 3 phases.
|
|
Payment methods
|
Alibaba online order, T/T bank transfer, WeChat, Alipay, L/C, etc.
|
|
Warranty time
|
Our warranty time is 2 years. Free spare parts within 2 years. After warranty, we still supply online after-sales service.
|
|
Production time
|
The machine is generally in stock, the production time is about 3-7 days, and the transportation will be arranged for you as soon as possible.
|
|
Machine quality
|
All machines are brand new, and the quality of the machines is our top priority. Before leaving the factory, we will test the machines to ensure that they can work normally.
|
